6-1
• Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
• Items with no part number and no
description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation number
in the remark column.
SECTION 6
EXPLODED VIEWS
The components identified by shading
and mark
¡ are critical for safety.
Replace only with part number specified.

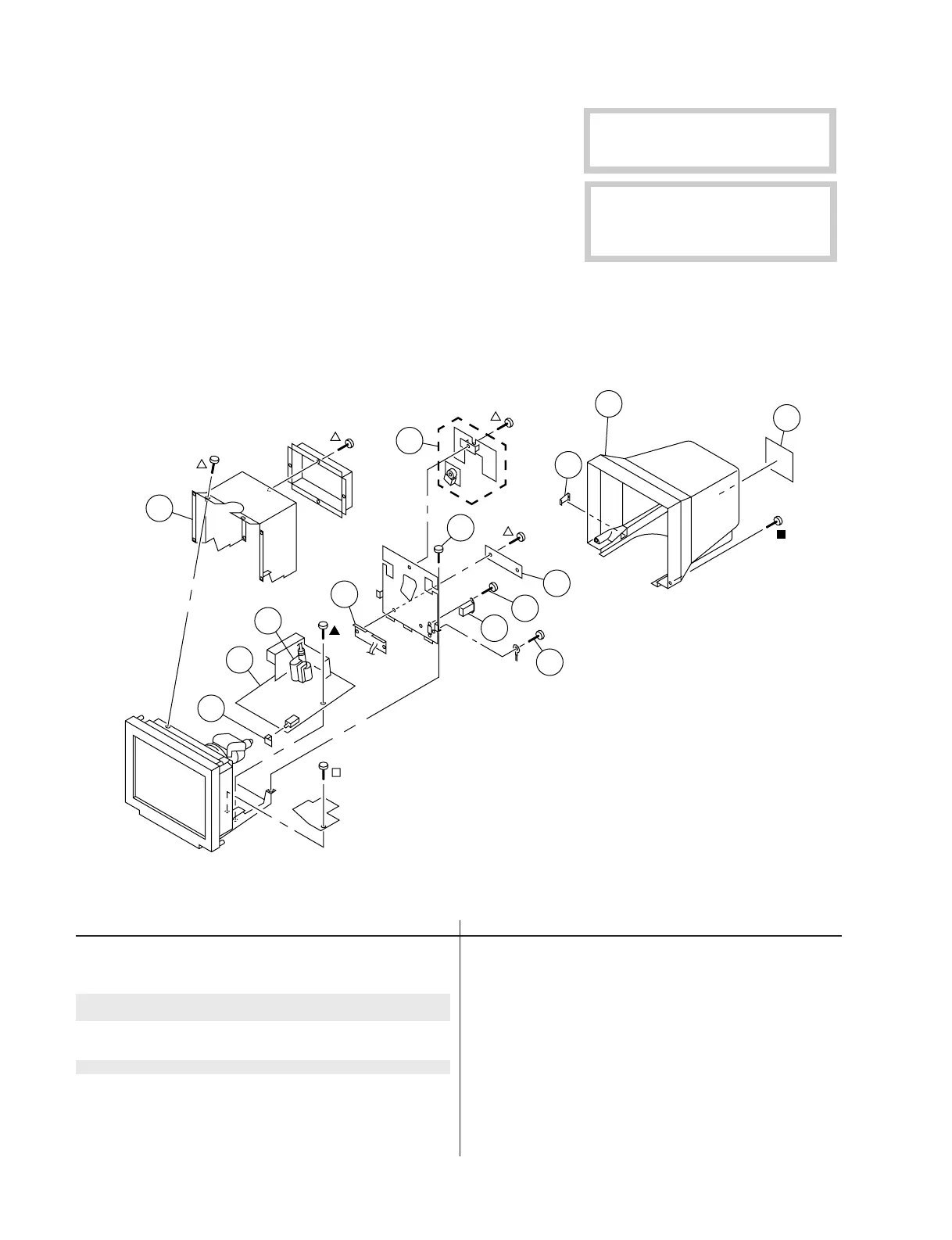

6-1. CHASSIS
4 7-685-647-79 +BVTP 3X10
p 7-685-663-71 +BVTP 4X16
¢ 7-685-872-09 +BVTT 3X8
π 7-685-881-09 +BVTT 4X8
Les composants identifiés par un tramé
et une marque
¡
sont critiques pour la
sécurité. Ne les remplacer que par une
pièce portant le numéro spécifié.
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
1 * X-4034-844-1 SHIELD ASSY, EMI [U/C, SH model]
1 * X-4035-398-1 SHIELD ASSY, EMI [AEP, UK model]
3 * 4-394-972-21 CAP, POWER
4 * A-1346-713-B D BOARD, COMPLETE 5
5 ¡ X-4035-177-1 TRANSFORMER ASSY, FLYBACK
(NX-4401//J1M4)
6 1-694-347-11 TERMINAL BOARD ASSY, I/O
7 4-389-025-01 SCREW (M4) (EXT TOOTH WASHER)
8 ¡ 1-251-382-22 INLET, AC 3P(WITH NOISE FILTE)
9 4-052-345-01 SCREW, (3X8) (+K), TAPPING
10 4-060-368-12 SHEET, CONNECTOR
11 *8-933-248-00 A BOARD, COMPLETE
12 4-060-394-12 CABINET
[U/C for Japan-made set, SH model]
12 X-4034-867-1 CABINET ASSY [AEP, UK model] 13
12 4-060-696-01 CABINET [U/C for USA-made set]
13 4-060-401-11 COVER, ECS
[U/C for Japan-made set, SH model]
13 4-060-528-01 COVER, ECS [AEP, UK model]
13 4-060-704-01 COVER, ECS [U/C for USA-made set]
14 *4-061-169-01 LABEL, INFORMATION
[U/C for Japan-made set, SH model]
14 *4-061-169-12 LABEL, INFORMATION
[U/C for USA-made set]
14 *4-061-170-01 LABEL, INFORMATION
[200PST AEP, UK model]
14 4-204-887-01 LABEL, INFORMATION [200PST9]
10
11
1
12
13
3
14
4
5
6
7
8
9
7
