Sony Trinitron GDM-200PS - Picture Tube

GDM-200PS/200PST/200PST9

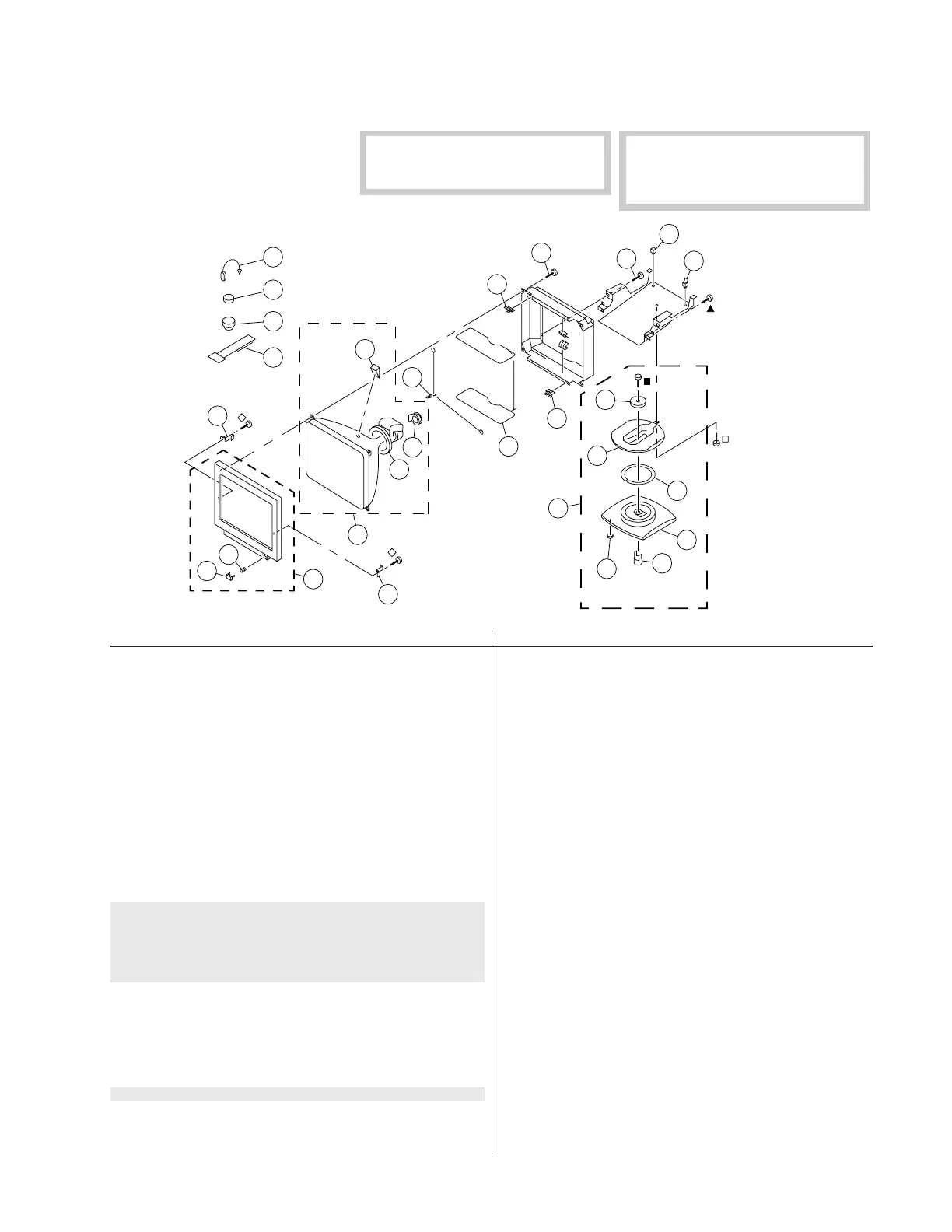

6-2. PICTURE TUBE
4 7-685-647-79 +BVTP 3X10
p 7-685-663-71 +BVTP 4X16
π 7-685-881-09 +BVTT 4X8
7-685-661-79 +P 4X12
Les composants identifiés par un tramé
et une marque
¡ sont critiques pour la
sécurité. Ne les remplacer que par une
pièce portant le numéro spécifié.
The components identified by shading
and mark
¡ are critical for safety.
Replace only with part number specified.
π
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
51 X-4034-845-1 BEZEL ASSY
[U/C for Japan-made set, SH model] 52, 53
51 X-4034-866-1 BEZEL ASSY [AEP, UK model] 52, 53
51 X-4034-887-1 BEZEL ASSY
[U/C for USA-made set] 52, 53
52 4-060-420-01 BUTTON, POWER
[U/C for Japan-made set, SH model]
52 4-060-523-01 BUTTON, POWER [AEP, UK model]
52 4-060-699-01 BUTTON, POWER
[U/C for USA-made set]
53 3-653-339-21 SPRING, COMPRESSION
[U/C for USA-made set]
53 3-653-339-01 SPRING, COMPRESSION
[U/C for Japan-made set, SH model]
53 3-653-339-11 SPRING, COMPRESSIN [AEP, UK model]
54 4-052-459-11 HOOK (17) [U/C for USA-made set]
54 4-052-459-01 HOOK (17) [except U/C for USA-made set]
55 ¡ 8-738-728-80 ITC ASSY (17FRFM-RS1)
[SH model] 57-59
55 ¡ 8-738-733-81 ITC ASSY (17FRFM-R1)
[except SH model] 57-59
57 ¡ 8-451-488-11 DEFLECTION YOKE (Y17FRJ-M)
58 ¡ 1-452-923-21 NECK ASSEMBLY
59 4-040-897-01 SPACER, DY [U/C for USA-made set]
59 4-050-492-01 SPACER, DY
[except U/C for USA-made set]
60 *4-047-316-01 SPRING, EXTENSION
[except U/C for USA-made set]
60 *4-061-573-01 SPRING, TENSION
[U/C for USA-made set]
61 ¡ 1-416-282-41 COIL, DEMAGNETIC
62 *4-056-260-01 SPACER, DEGAUSSER COIL
63 4-203-648-01 SCREW (5), SELF TAPPING
[AEP, UK model]
63 4-365-808-01 SCREW (5), TAPPING [U/C, SH model]
65 4-389-025-01 SCREW (M4) (EXT TOOTH WASHER)
66 *4-382-848-01 HOLDER, PRINTED CIRCUIT BOARD
67 *3-703-141-00 HOLDER, PRINTED CIRCUIT BOARD
68 X-4034-847-1 STAND ASSY
[U/C for Japan-made set, SH model] 69-74
68 X-4034-868-1 STAND ASSY [AEP, UK model] 69-74
69 4-060-340-01 STOPPER (A)
[U/C for Japan-made set, SH model]
69 4-060-644-02 STOPPER (A) [AEP, UK model]
69 4-060-531-01 STOPPER (A) [U/C for USA-made set]
70 4-060-396-11 SLIDER
[U/C for Japan-made set, SH model]
70 4-060-522-01 SLIDER [AEP, UK model]
70 4-060-698-01 SLIDER [U/C for USA-made set]
71 4-060-339-01 RING, TILT SWIVEL
[U/C for Japan-made set, SH model]
71 4-060-643-01 RING, TILT SWIVEL [APE, UK model]
71 4-060-705-01 RING, TILT SWIVEL
[U/C for USA-made set]
72 X-4034-851-1 BASE ASSY, STAND
[U/C for Japan-made set, SH model] 74
72 X-4034-890-1 BASE ASSY, STAND
[U/C for USA-made set]
73 4-041-621-21 STOPPER (B) [U/C for USA-made set]
73 4-041-621-01 STOPPER (B)
[except U/C for USA-made set]
74 4-047-474-01 FOOT, RUBBER
[except U/C for USA-made set]
75 4-308-870-00 CLIP, LEAD WIRE
76 1-452-032-00 MAGNET,DISC ; 10 mm φ
77 1-452-094-00 MAGNET, ROTATABLE DISK; 15mm φ
78 4-059-493-01 PERMALLOY (90), CONV.CORRECT
6-2
60
70
51
61
71
52
62
72
53
63
73
54
74
55
65
75
66
76
57
67
77
58
68
78
59
69
54
62
except U/C for
USA-made set
except U/C for USA-made set
U/C, SH model
