V. Linearity (VLIN), V. Correction (SCOR), PIN
Amp (PAMP), and Trapezoid (TRAP)
Adjustments
1. Input a crosshatch signal.
2. Access Service Adjustment Mode.
3. Press
2
or
5
to select the DEF category.
4. Press
1
or
4
to display the VLIN item.
5. Adjust the value of VLIN by pressing
3
or
6
for the best horizontal
size.
6. Repeat steps 4 and 5 for SCOR, PAMP, and TRAP.
7. Press
MUTING
then
ENTER
to write into memory.

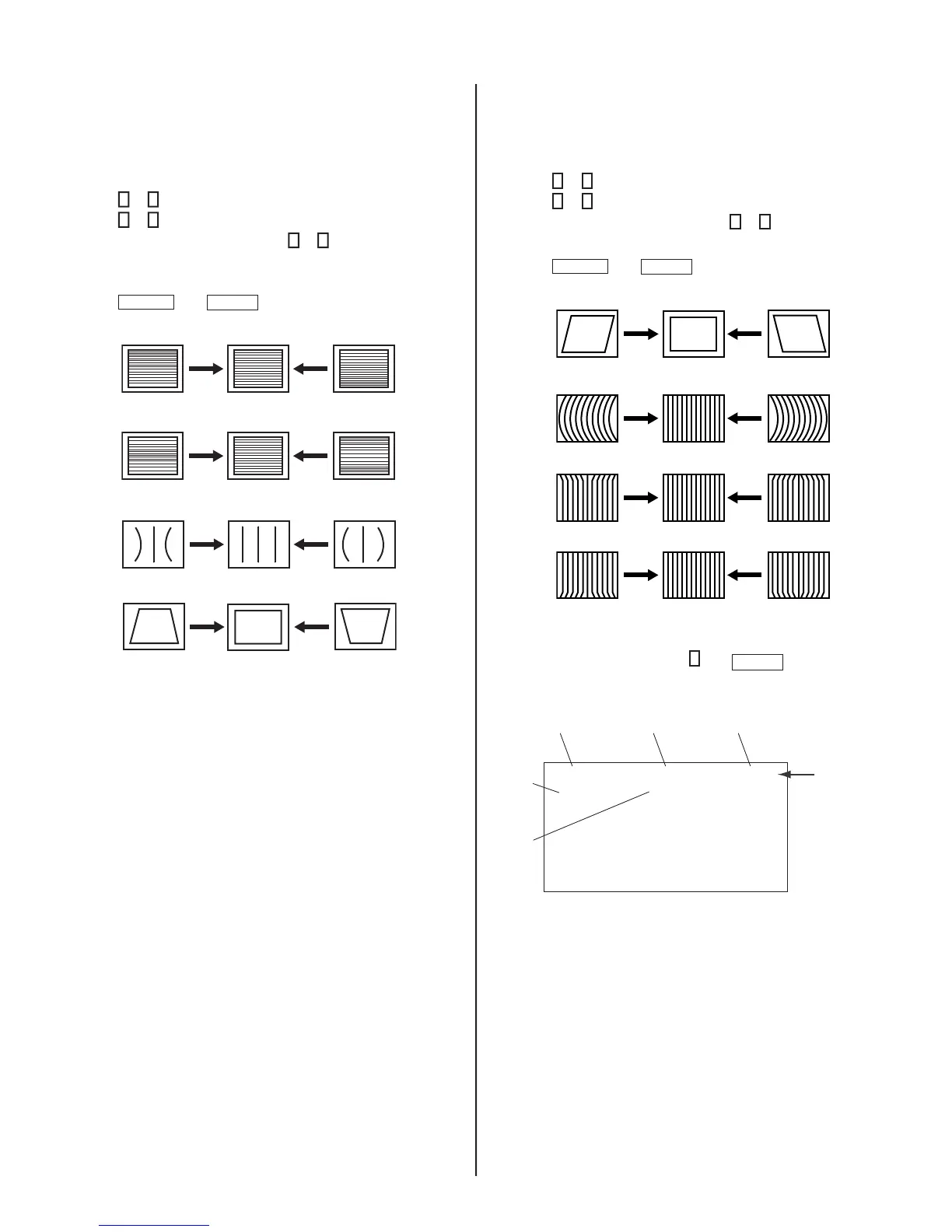

V LINEARITY (VLIN)
V CORRECTION (SCOR)
PIN AMP (PAMP)
TRAPEZOID (TRAP)
V. Angle (VANG), V. Bow (VBOW), Upper PIN
(UPIN) and Low PIN (LPIN) Adjustments
1. Input a crosshatch signal.
2. Access Service Adjustment Mode.
3. Press
2
or
5
to select the DEF category.
4. Press
1
or
4
to display the VANG item.
5. Adjust the value of VANG by pressing
3
or
6
for the best picture.
6. Repeat steps 4 and 5 for VBOW, UPIN, and LPIN.
7. Press
MUTING
then
ENTER
to write into memory.
V ANGLE (VANG)
V BOW (VBOW)
UPPER PIN (UPIN)
LOW PIN (LPIN)
Reading Adjustments to Memory
1. After completing all adjustments,
0
then
ENTER
to read into
memory.
Category
Display
Item
Display
Data
Signal
Type
Channel
Type
NTSC READDEF
M65586MK-056FP D1.0
HSIZ 1:35 NVM:OK
Text
changes to
“READ” and
changes
colors from
green to red
