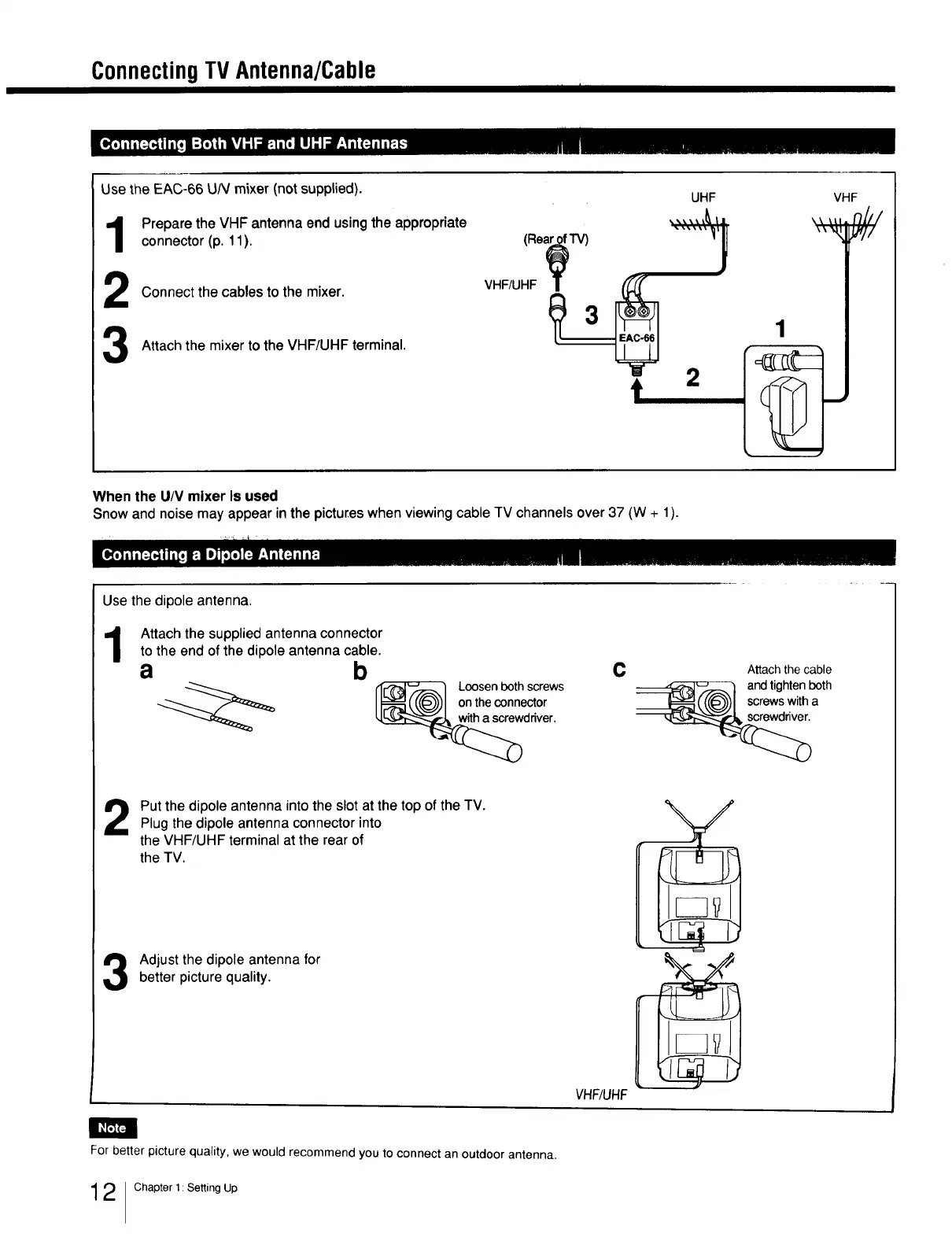

ConnectingTV Antenna/Cable
ii I
Use the EAC-66 UN mixer (not supplied).
Prepare the VHF antenna end using the appropriate
connector (p. 11).
(Rear of TV)
VHF/UHF _
UHF
VHF
Connect the cables to the mixer.
,,_Ff
3 1
Attach the mixer to the VHF/UHF terminal.
t 2 "'_
When the U/V mixer is used
Snow and noise may appear in the pictures when viewing cable TV channels over 37 (W + 1).
Use the dipole antenna.
Attach the supplied antenna connector
to the end of the dipole antenna cable.
a b c
I_LL_JI on the connector
_ Loosen both screws
ddver.
Attach the cable
and tightenboth
screws with a
Put the dipole antenna into the slot at the top of the TV.
Plug the dipole antenna connector into
the VHF/UHF terminal at the rear of
the TV.
Adjust the dipole antenna forbetter picture quality.
VHF/UHF
\
/
For better picture quality, we would recommend you to connect an outdoor antenna.
2 Chapter 1: Setting Up
To Next Page
