KV-G21MW3/G21QW3
RM-869
KV-G21MW3/G21QW3
RM-869
– 44 –– 43 –
NOTE:
• Items with no part number and no
description are not stocked because
they are seldom required for routine
service.
• The construction parts of an assembled
part are indicated with a collation
number in the remark column.
6-1. CHASSIS
L : BVTP4 × 16 7-685-663-71
8 : BVTP3 × 12 7-685-648-79
• Items marked " ∗ " are not stocked since
they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
The components identified by
shading and mark ! are critical
for safety.
Replace only with part number
specified.
SECTION 6

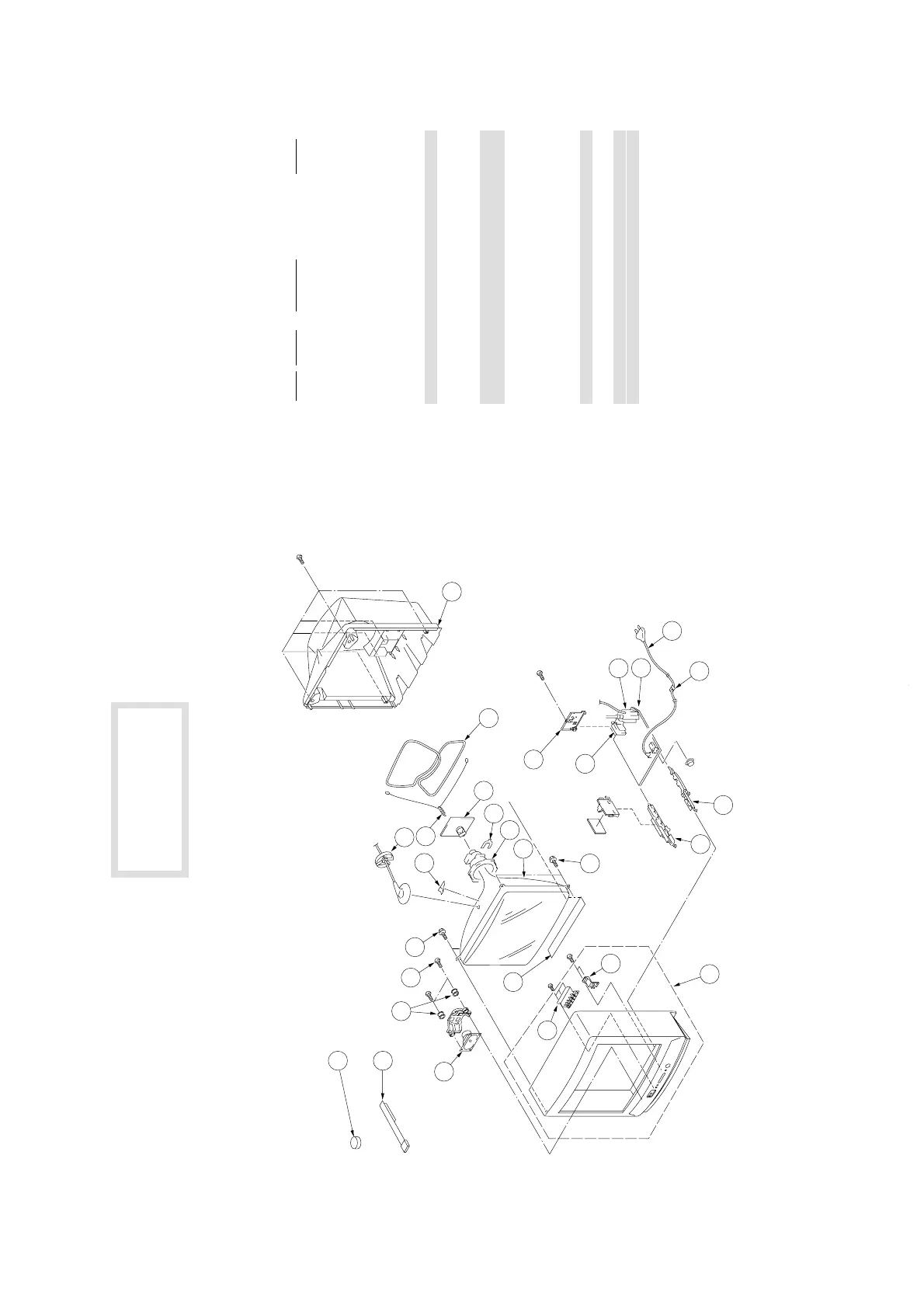

EXPLODED VIEW
REF.NO. PART NO. DESCRIPTION REMARK
1 X-4037-882-1 BEZNET ASSY (KV-G21QW3) 2-3
X-4037-883-1 BEZNET ASSY (KV-G21MW3)
2 4-056-187-01 BUTTON, MULTI
3 4-056-188-01 PLATE, GUIDE LIGHT
4 1-505-740-11 SPEAKER (5X9CM)
5 3-947-764-11 CUSHION, SPEAKER
6 4-072-569-21 SHEET, BLOTTING
7 4-365-808-12 SCREW (5), TAPPING
8 3-703-961-01 SPACER, DY
9 4-369-318-61 SPRING, TENSION
10 ! 8-738-774-05 PICUTRE TUBE (21PXD (SDS)(SD-169/1BR))
11 8-451-280-33 DEFLECTION YOKE (Y21PXA2)
12 1-452-277-01 MAGNET, BMC
13 * A-1331-688-A C BOARD, COMPLETE
14 ! 1-409-942-11 COIL, DEMAGNETIZATION
15 ! 4-049-740-21 COVER, REAR
16 * 4-055-840-01 RAIL (R), GUIDE
17 * 4-055-841-01 RAIL (L), GUIDE
18 * 3-704-372-11 HOLDER, HV CABLE
19 8-598-323-50 TUNER, VSS BT-AG401
20 4-059-710-01 BRACKET, TERMINAL BOARD
21 ! 1-453-250-11 TRANSFORMER ASSY, FLYBACK (NX-1746//M3A)
22 * A-1298-258-A A BOARD, COMPLETE (KV-G21QW3)
* A-1298-259-A A BOARD, COMPLETE (KV-G21MW3)
23 ! 4-022-115-00 HOLDER, AC CORD
24 ! 1-574-062-61 CORD, POWER (WITH CONNECTOR) 2.5A/250V
25 4-051-736-41 MAGNET, DISC
26 4-051-736-41 PIECE A(90), CONV. CORRECT
27 4-302-404-03 SCREW (WASHER HEAD) (+P 4X16)
3
11
13
8
9
14
15
16
21
22
23
24
25
26
7
1
17
p
4
4
27
6
12
18
7
4
10
2
4
5
19
20
p
