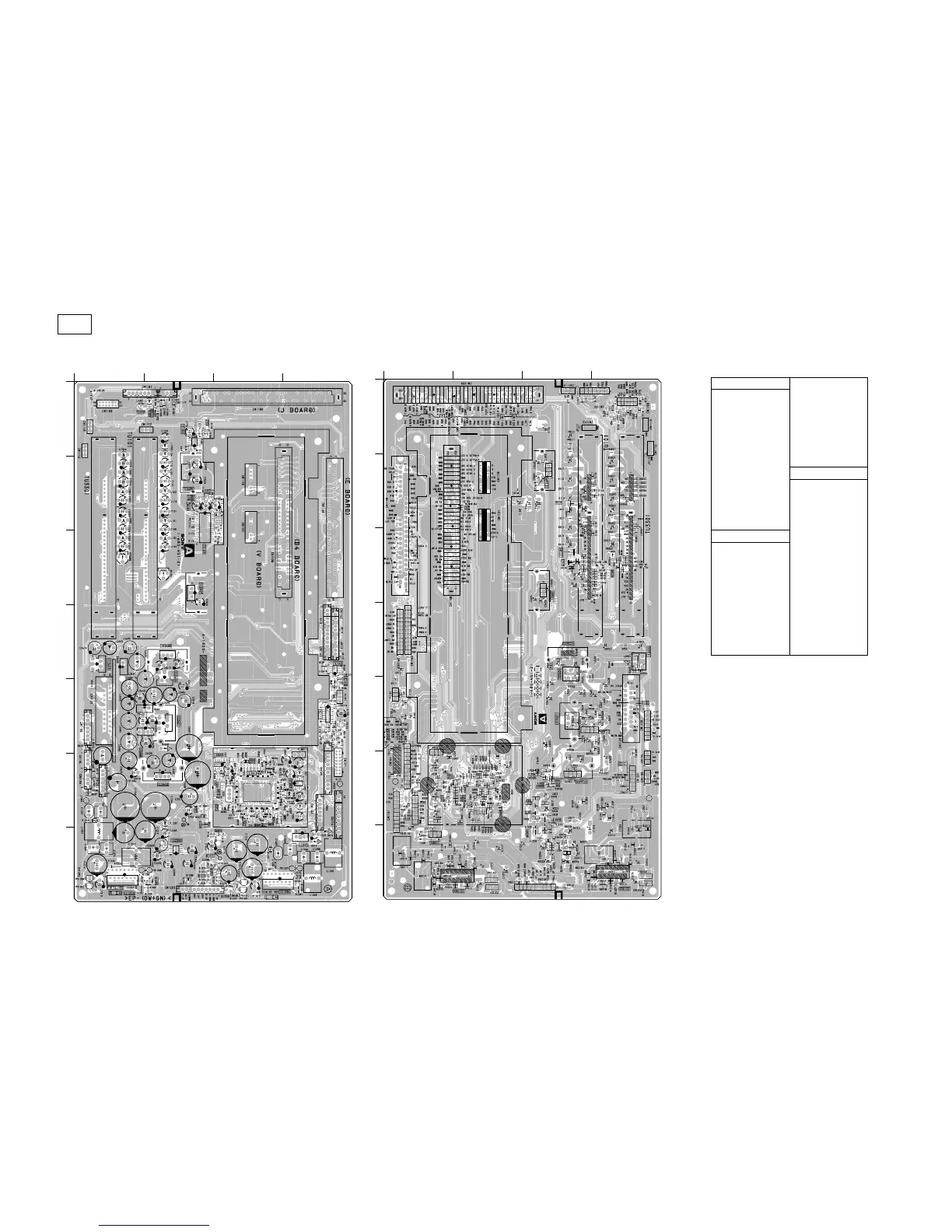

Sony Trinitron KV-HS29M90 - A Board (Component Side); A Board (Conductor Side)

KV-HS29M61/M90/M91, HS34M61/M90/M91, HS38M61/M90/M91
RM-997
– 64 – – 65 –
— A BOARD (COMPONENT SIDE) —
A
[ TUNER, MAIN CONTRPL, AIDIO AMP ]
— A B0ARD (CODUCTOR SIDE)—
1234
A
B
C
D
E
F
G
1234
A
B
C
D
E
F
G
*
: Refer to Terminal name of
semiconductors in silk screen
printed circuit (see page 47)
• A BOARD SEMICONDUCTOR LOCATION
IC
IC001 F-3
IC002 F-4
IC003 F-3
IC005 G-4 G-1
IC100 C-3
IC111 E-4
IC112 D-4
IC113 E-4
IC1203 G-1 G-4
IC1204 G-3 G-2
IC2200 G-2
IC2600 D-2 D-3
IC2601 E-2 E-3
IC2602 F-2 F-3
IC2603 D-1 D-4
IC2604 E-2 D-3
IC2605 B-2
IC2606 E-1 E-3
IC2607 C-2 C-3
TRANSISTOR
*
Q001 F-3 2
Q002 F-3 2
Q003 F-3 2
Q004 F-3 2
Q005 F-3 2
Q006 F-1 1
Q007 F-1 1
Q008 F-2 1
Q009 G-3 !£
Q010 F-3 2
Q101 C-3 1
Q105 A-2 2
Q301 F-3 1
Q302 F-2 -
Q313 F-3 1
Q1205 G-2 2
Q1206 G-3 2
Q1207 G-3 2
Q1209 G-3 2
Q1210 G-2 2
Q1211 G-2 2
Q2200 G-3 1
Q2201 F-3 1
Q2600 F-2 1
Q2602 F-3 1
Q2603 A-1 2
Q2604 A-2 2
Q3300 C-4 1
DIODE
*
D001 F-2 3
D002 F-3 3
D003 F-2 3
D007 F-1 3
D009 F-1 3
D011 G-4 G-1 -
D013 E-1 3
D014 G-4 G-1 -
D100 C-3 3
D301 F-3 3
D302 F-3 3
D317 F-3 3
D1205 G-4 3
D1208 G-2 3
D1209 F-2 3
D1300 A-2 3
D1301 A-2 3
D2200 G-3 3
D2201 G-3 3
D2600 D-1 D-4 -
D2601 E-2 E-3 -
D2602 E-2 E-3 -
D2603 F-3 3
D2604 F-3 3
Component
()
Side
Conductor
()
Side
Component
()
Side
Conductor
()
Side
Component
()
Side
Conductor
()
Side
