Sony Trinitron KV-HS29M90 - C1 Board (Coductor Side); C1 Board Semiconductor Location; Circuit Boards Location

KV-HS29M61/M90/M91, HS34M61/M90/M91, HS38M61/M90/M91
RM-997
– 72 – – 73 –

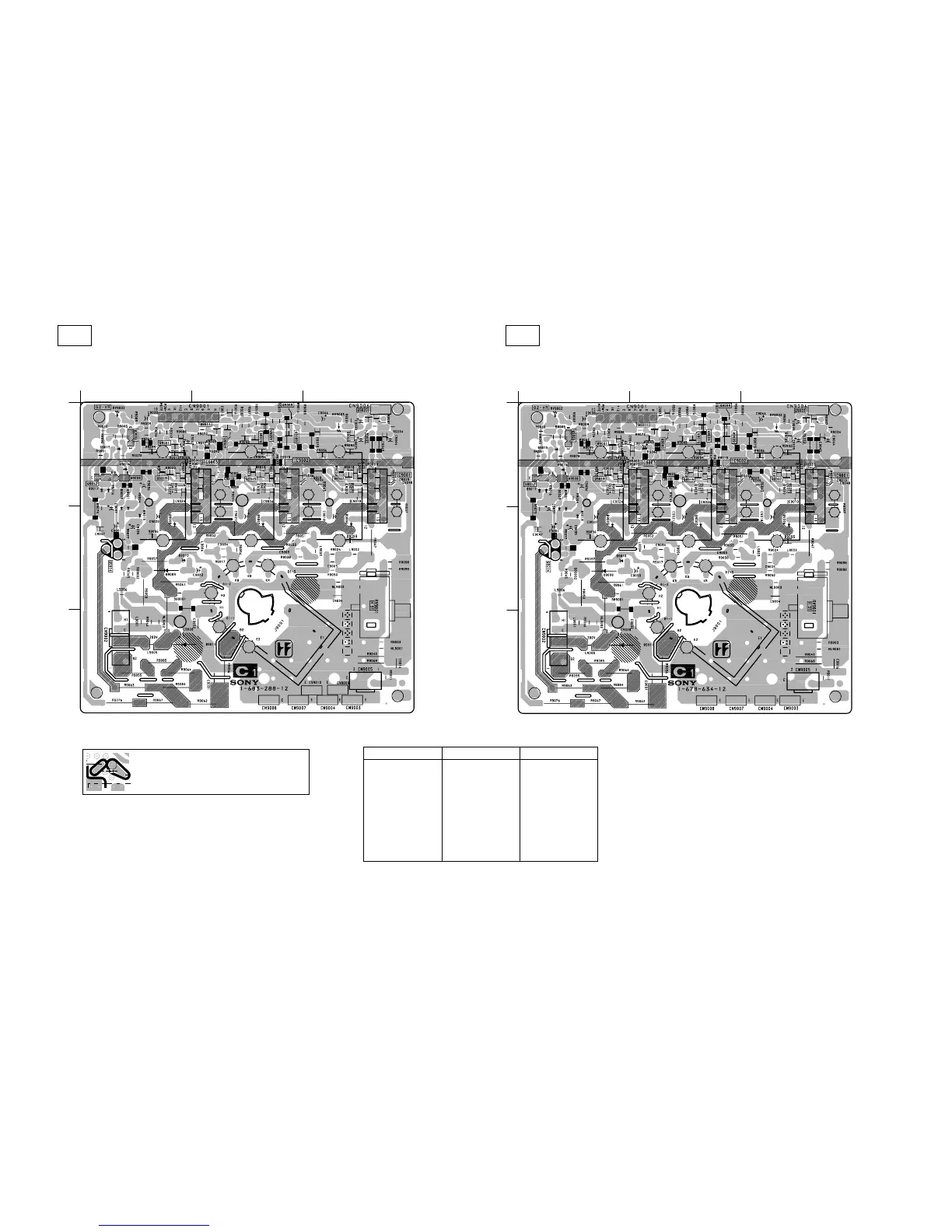

— C1 BOARD (CODUCTOR SIDE) —
C1
[ VIDEO OUT ]
( KV-HS29 )
123
A
B
C
123
A
B
C
— C1 BOARD (CODUCTOR SIDE) —
( KV-HS34/HS38 )
C1
[ VIDEO OUT ]
NOTE:
The circuit indicated as left contains high voltage of over
600 Vp-p. Care must be paid to prevent an electric shock in
inspection or repairing.
*
: Refer to Terminal name of
semiconductors in silk screen
printed circuit (see page 47)
• C1 BOARD SEMICONDUCTOR LOCATION
IC
IC9001 A-3
IC9002 A-2
IC9003 A-2
TRANSISTOR
Q9001 A-1 1
Q9002 A-1 -
Q9003 A-2 1
Q9004 A-2 1
Q9005 A-2 1
Q9007 A-3 1
Q9008 A-1 -
Q9009 A-2 1
Q9010 A-2 1
Q9011 A-2 1
Q9012 A-1 -
Q9013 A-1 1
Q9014 B-1 -
Q9015 A-2 1
DIODE
D9001 B-1 -
D9003 B-1 -
D9005 A-3 3
D9006 B-3 -
D9007 B-2 -
D9008 B-1 -
D9009 B-1 -
D9010 B-1 -
D9013 B-1 -
D9014 A-1 -
D9015 A-1 -
D9016 A-1 -
