Sony Trinitron KV-HS29M90 - Disassembly Procedures; Rear Cover and Chassis Assy Removal

– 8 –
KV-HS29M61/M90/M91, HS34M61/M90/M91, HS38M61/M90/M91
RM-997
SECTION 1
DISASSEMBLY

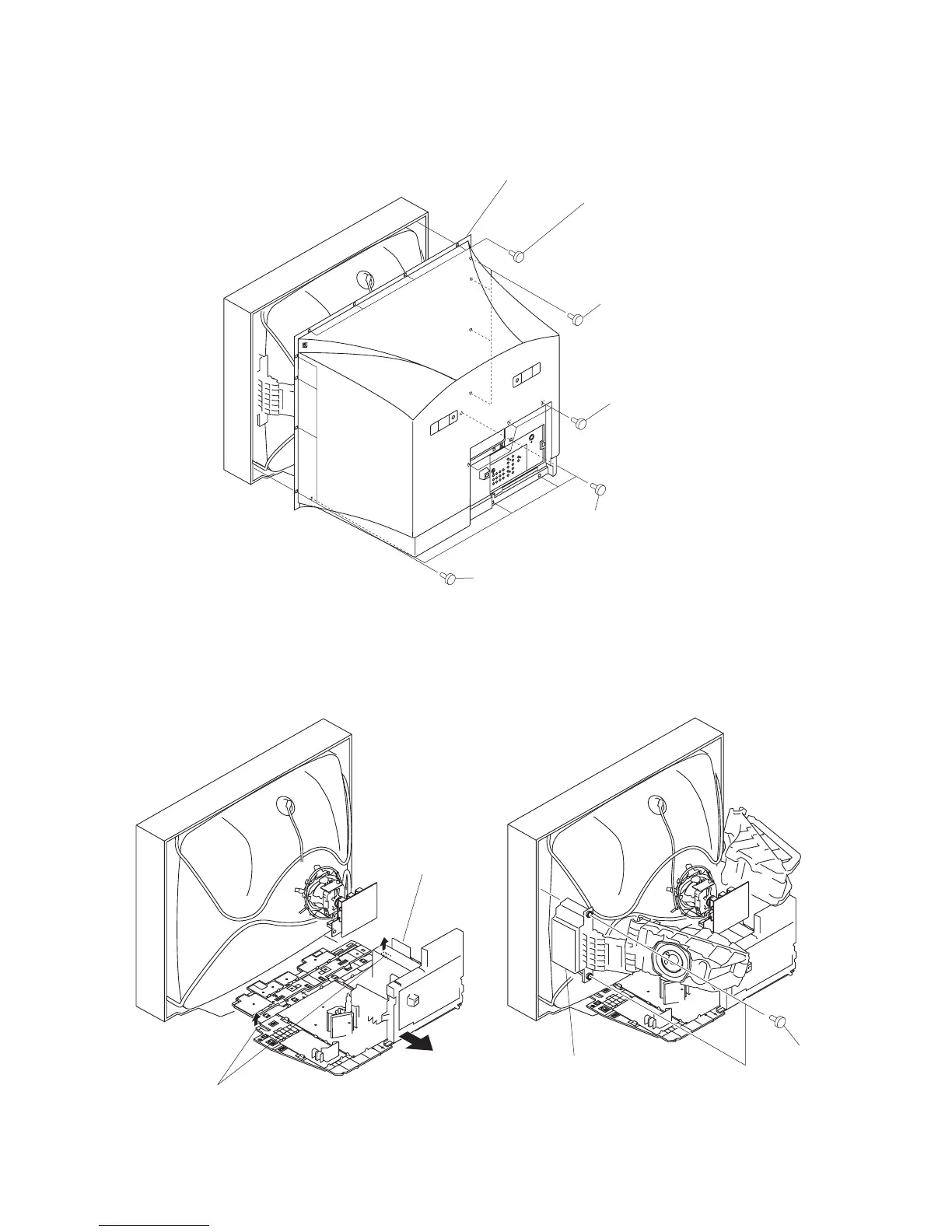

1-3. CHASSIS ASSY REMOVAL
1-1. REAR COVER REMOVAL
1-2. SPEAKER BOX REMOVAL
1 Two screws
(+PWHTP 4X25)
2 Arm (R) block assy
1 Claws (Main bracket)
2 Chassis assy
2 Rear cover
1 Four screws (KV-HS38M90)
(+BVTP 4X16)
1 Two screws (KV-HS29/34M90)
(+BVTP 4X16)
1 Four screws (KV-HS38M90)
(+BVTP 4X16)
1 Two screws (KV-HS29/34M90)
(+BVTP 4X16)
1 Four screws
(+BVTP 4X16)
1 Four screws
(+BVTP 4X16)
1 Four screws (KV-HS38M90)
(+BVTP 4X16)
1 Four screws (KV-HS29/34M90)
(+BVTP 4X16)
