KV-HS29M61/M90/M91, HS34M61/M90/M91, HS38M61/M90/M91
RM-997
– 112 – – 113 –
J
[ AV SW, COLOR DEC.,COMPOMENT I/F, 2D/3D COMB FILTER ]

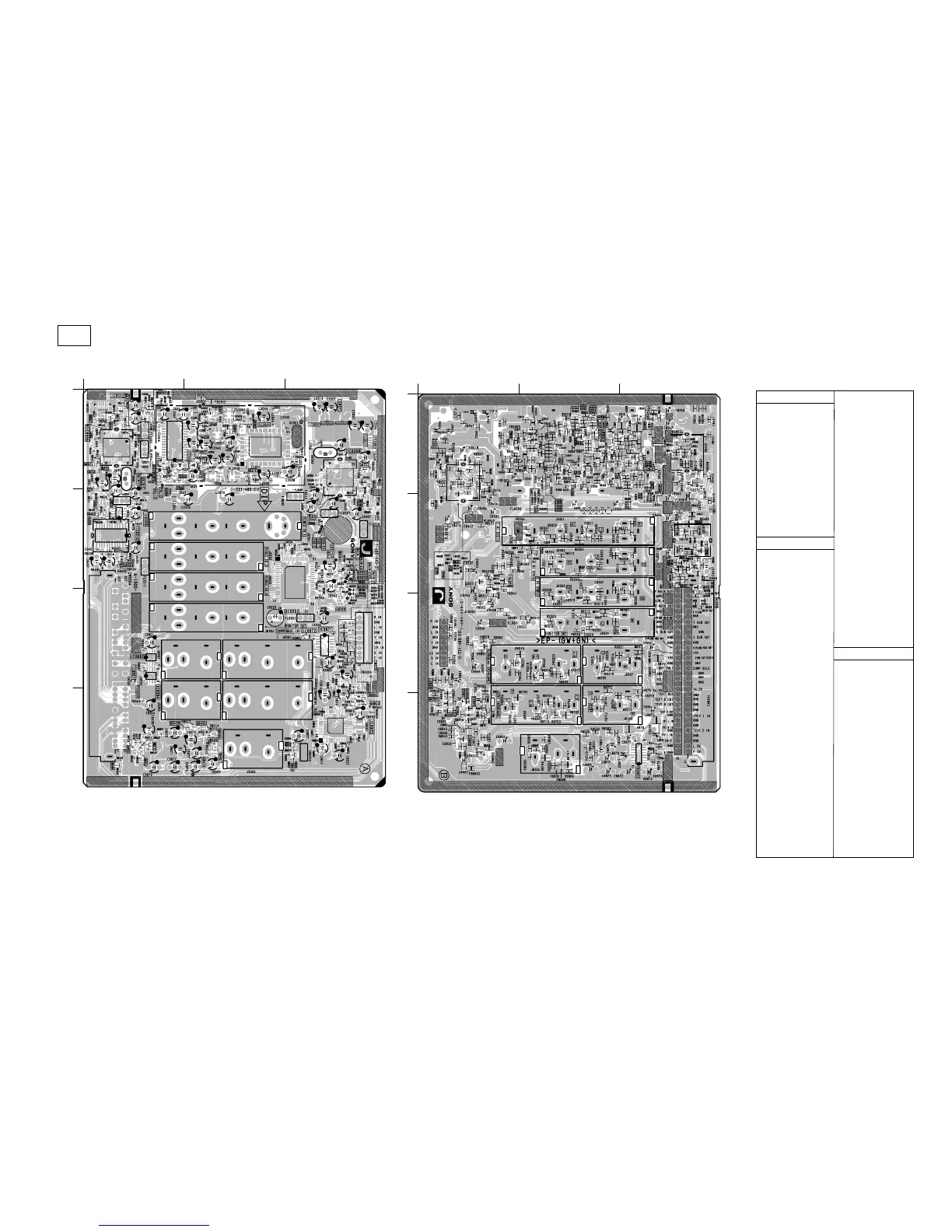

— J BOARD (CODUCTOR SIDE) —
— J BOARD (COMPONENT SIDE) —
123
A
B
C
D
123
A
B
C
D
*
: Refer to Terminal name of
semiconductors in silk screen
printed circuit (see page 47)
Q8328 B-3 1
Q8329 B-1 2
Q8330 B-1 2
Q8331 B-1 2
Q8332 B-1 2
Q8333 B-1 2
Q8334 B-3 1
Q8335 B-3 1
Q8336 C-3 1
Q8342 A-1 2
Q8343 A-3 1
Q8361 A-1 2
Q8362 A-1 2
Q8363 A-1 2
Q8364 A-3 1
Q8401 A-1 1
Q8402 B-1 1
Q8403 A-1 1
Q8404 D-1 2
Q8405 D-2 2
Q8406 D-2 2
Q8407 D-2 2
Q8408 D-2 2
Q8409 D-2 2
Q8410 D-2 2
Q8463 A-1 1
Q8464 A-3 2
Q8465 A-3 2
Q8466 B-3 2
Q8801 D-1 1
Q8802 D-3 2
Q8803 D-3 2
Q8804 D-3 2
Q8805 D-1 1
Q8806 D-1 1
Q8807 D-1 1
Q8808 D-1 1
Q8809 D-1 1
Q8870 C-1 1
DIODE
*
D8301 B-2 3
D8302 B-2 3
D8303 B-2 3
D8304 B-2 3
D8305 B-3 3
D8306 B-2 3
D8307 B-2 3
D8308 B-3 3
D8309 C-2 3
D8310 C-2 3
D8311 B-3 3
D8312 C-2 3
D8313 C-2 3
D8314 C-2 3
D8318 C-2 3
D8319 C-3 3
D8320 C-3 3
D8321 B-2 3
D8322 C-3 3
D8323 C-3 3
D8324 C-3 3
D8325 C-3 3
D8326 C-3 3
D8331 B-1 3
D8332 D-1 3
D8701 C-3 3
D8702 C-2 3
• J BOARD SEMICONDUCTOR LOCATION
Component
()
Side
Conductor
()
Side
IC
IC2001 A-3
IC2004 A-2
IC2005 A-3
IC2300 A-1
IC8302 B-3
IC8304 D-1
IC8305 A-3
IC8306 A-1
IC8308 A-3
IC8309 B-1
IC8310 B-1
IC8312 A-1
IC8801 C-1
IC8802 C-1
IC8805 D-3
]\IC8870 D-3
IC8871 C-1
IC8872 C-1
TRANSISTOR
*
Q2002 A-1 1
Q2003 A-2 2
Q2004 A-2 2
Q2005 A-2 1
Q2006 A-2 1
Q2007 A-2 2
Q2008 A-2 1
Q2009 A-2 2
Q2010 A-2 2
Q2011 A-2 2
Q2012 A-2 1
Q2013 A-2 2
Q2014 A-2 1
Q2015 A-2 2
Q2016 A-2 2
Q2018 A-2 1
Q2019 A-2 1
Q2301 A-3 1
Q2302 A-3 1
Q2303 A-1 2
Q2304 A-1 2
Q2305 A-3 1
Q2306 A-1 2
Q2307 A-1 2
Q2308 A-1 2
Q2309 A-3 1
Q2310 A-1 2
Q8301 B-1 1
Q8302 B-3 2
Q8303 B-3 2
Q8304 B-3 2
Q8305 B-3 1
Q8306 C-3 2
Q8308 C-3 2
Q8309 C-3 2
Q8310 A-1 2
Q8311 B-1 1
Q8312 B-1 1
Q8313 D-1 2
Q8316 D-1 2
Q8319 A-1 2
Q8320 A-1 2
Q8321 A-1 2
Q8322 D-1 2
Q8326 B-3 1
Q8327 B-3 1
Component
()
Side
Conductor
()
Side
Component
()
Side
Conductor
()
Side
