Sony TRINITRON KV-M1450E - Dynamic and Screen-Corner Convergence; Dynamic Convergence Adjustment; Screen-corner Convergence

KV-M145

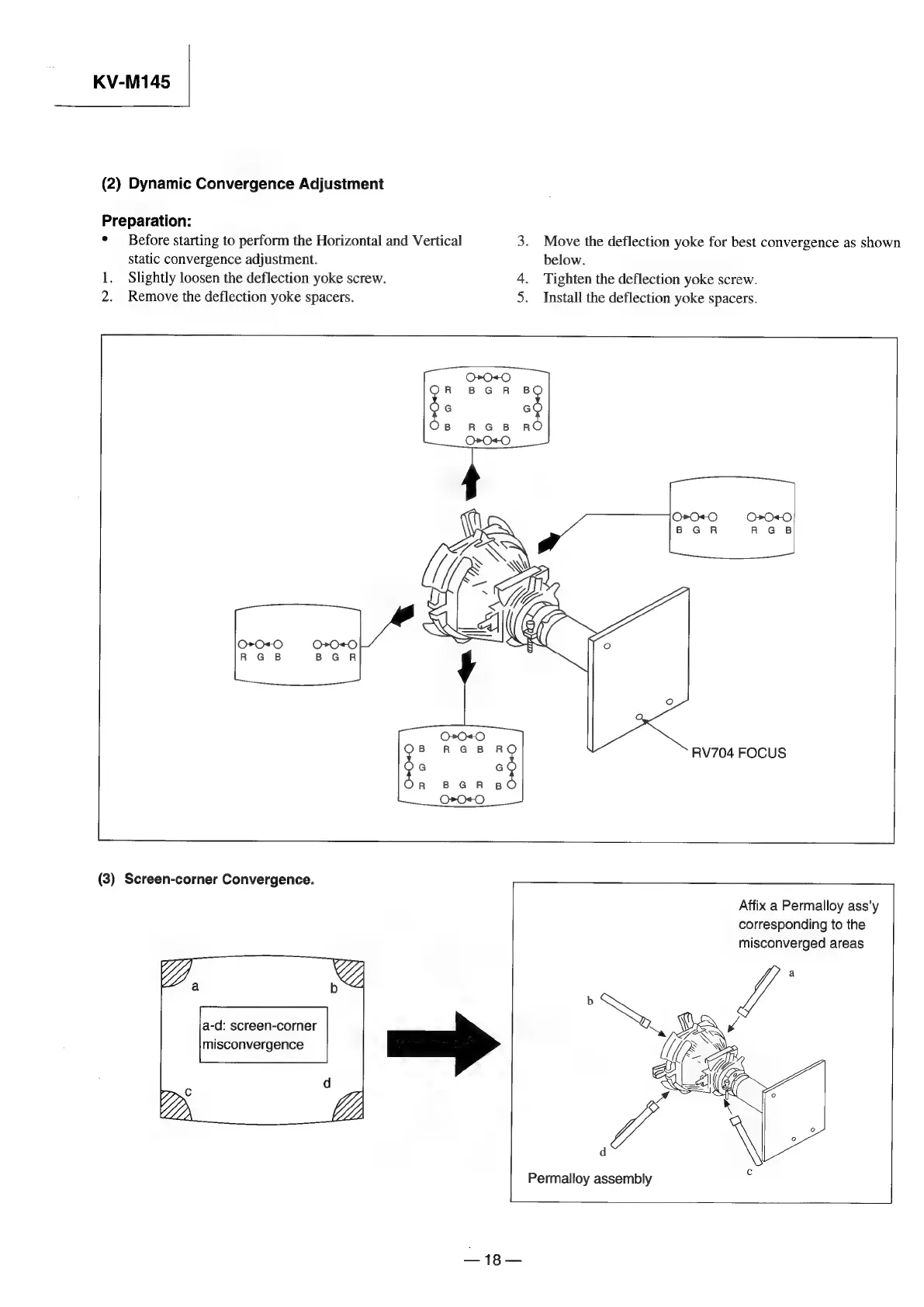

(2) Dynamic Convergence Adjustment
Preparation:
¢ Before starting to perform the Horizontal and Vertical
static convergence adjustment.
1. Slightly loosen the deflection yoke screw.
2. Remove the deflection yoke spacers.
Move the deflection yoke for best convergence as shown
below.
Tighten the deflection yoke screw.
Install the deflection yoke spacers.
-_
L
RV704 FOCUS
(3) Screen-corner Convergence.
a-d: screen-corner
misconvergence
Affix a Permalloy ass’y
corresponding to the
misconverged areas
Permalloy assembly
Lae
