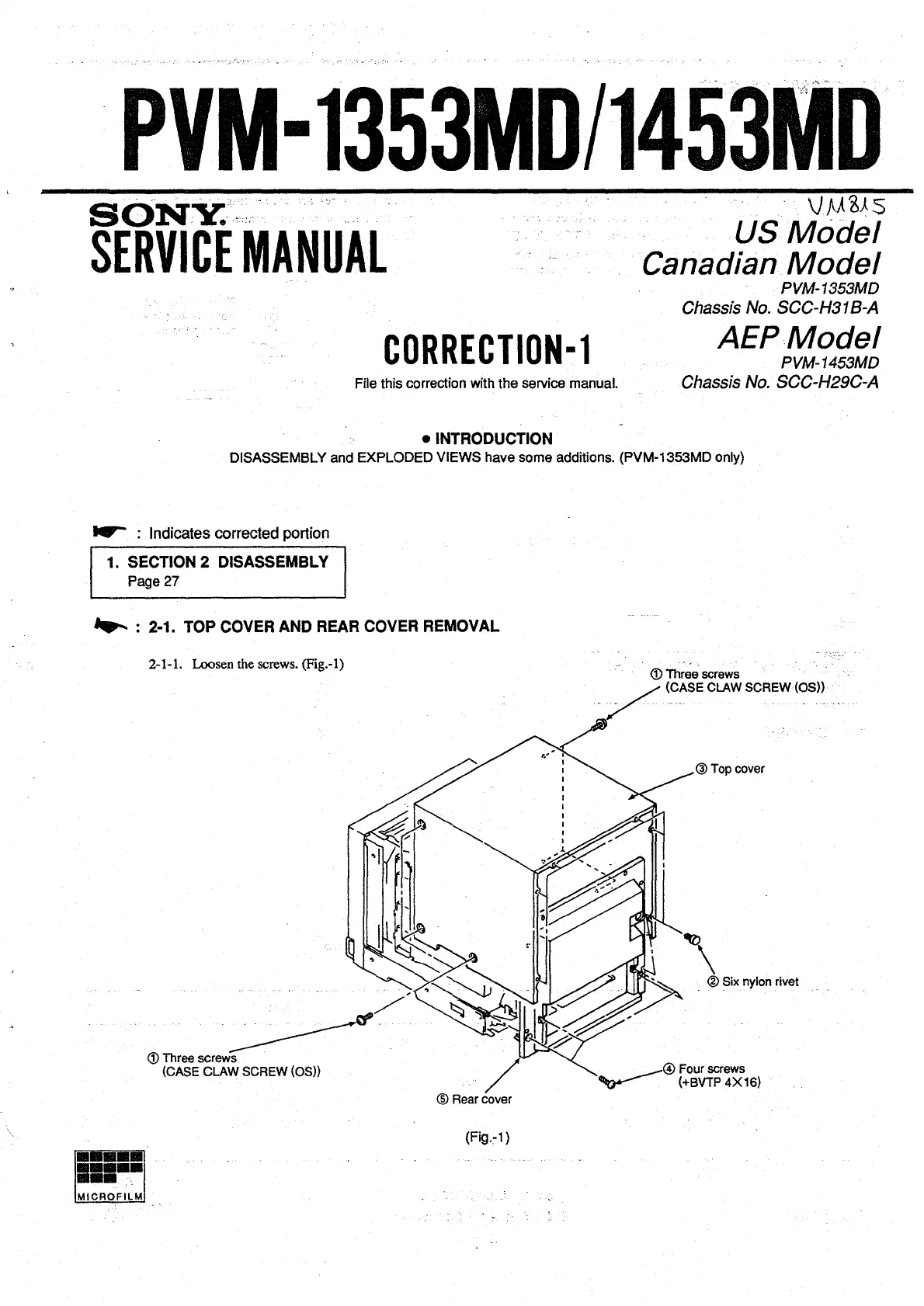

Sony Trinitron PVM-1353 - Corrections and Disassembly; Section 2 Disassembly

PVM· 1353MD/1453MD
SONY.'.'..
SERVICE MANUAL
CORRECTION· 1
File this correction with the service manual.
• INTRODUCTION
VM '8ts
US Model
Canadian Model
PVM-1353MD
Chassis No. SCC-H31B-A
AEPModel
PVM-1453MD
Chassis No. SCC-H29C-A
DISASSEMBLY and EXPLODED VIEWS have some additions. (PVM-1353MD only)
-- : Indicates corrected portion
1. SECTION 2 DISASSEMBLY
Page 27
...... : 2-1. TOP COVER AND REAR COVER REMOVAL
2-1-1. Loosen the screws. (Fig.-1)
® Rear cover
(Fig.~1)
., , ..
<D Three screws
(CASE CLAW SCREW (OS))
@Top cover
