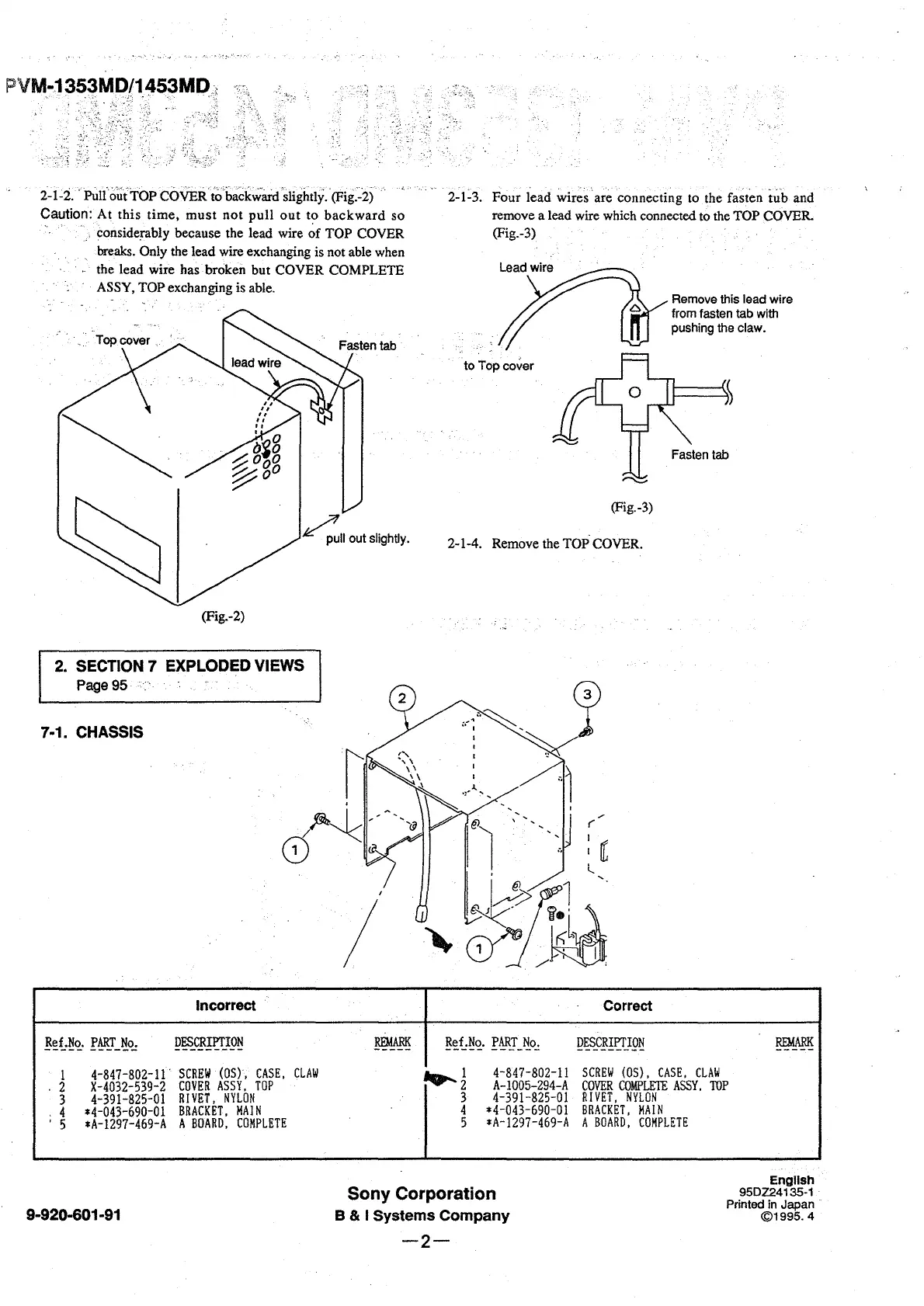

2-1~2 .. Pult'o~1>:rop COVER toba~kward
0
slightly. (Fig.'~2) .·.
Caution: At this time, must not pull out to backward so
· , considerably because the lead wire of TOP COVER
breaks. Only the lead wire exchanging is not able when
the lead wire has broken but COVER COMPLETE
ASSY, TOP exchanging is able.
~II out slightly.
(Fig.-2)
2. SECTION 7 EXPLODED VIEWS
Page 95
7-1. CHASSIS
I
Incorrect
Ref.No. PART No.
DESCRIPTION
REMARK
1
4-847-802-11. SCREW (OS), CASE.
CLAW
. 2
X-4032-539-2 COVER ASSY, TOP
3
4-391-825-01
RIVET, NYLON
4
*4-043-690-01
BRACKET,
MAIN
' 5
*A-1297-469-A
A BOARD, COMPLETE
2-1~3. Four lead wir~s are connecting to the fasten tub and
remove a lead wire which connected to the TOP COVER.
(Fig.-3)
to Top cover
(Fig.-3)
Remove this lead wire
from fasten tab with
pushing the claw.
Fasten tab
2-1-4. Remove the TOP COVER.
Correct
Ref.No. PART No.
DESCRIPTION
~
~J
4-847-802-11
SCREW (OS), CASE, CLAW
A-1005-294-A COVER COMPLETE ASSY,
TOP
3
4-391-825-01
RIVET, NYLON
4 *4-043-690-01
BRACKET, HAIN
5
*A-1297-469-A
A BOARD, COMPLETE
