Sony Trinitron PVM-1353 - Specifications (PVM-1453 MD)

PVM-1353MD/1453MC

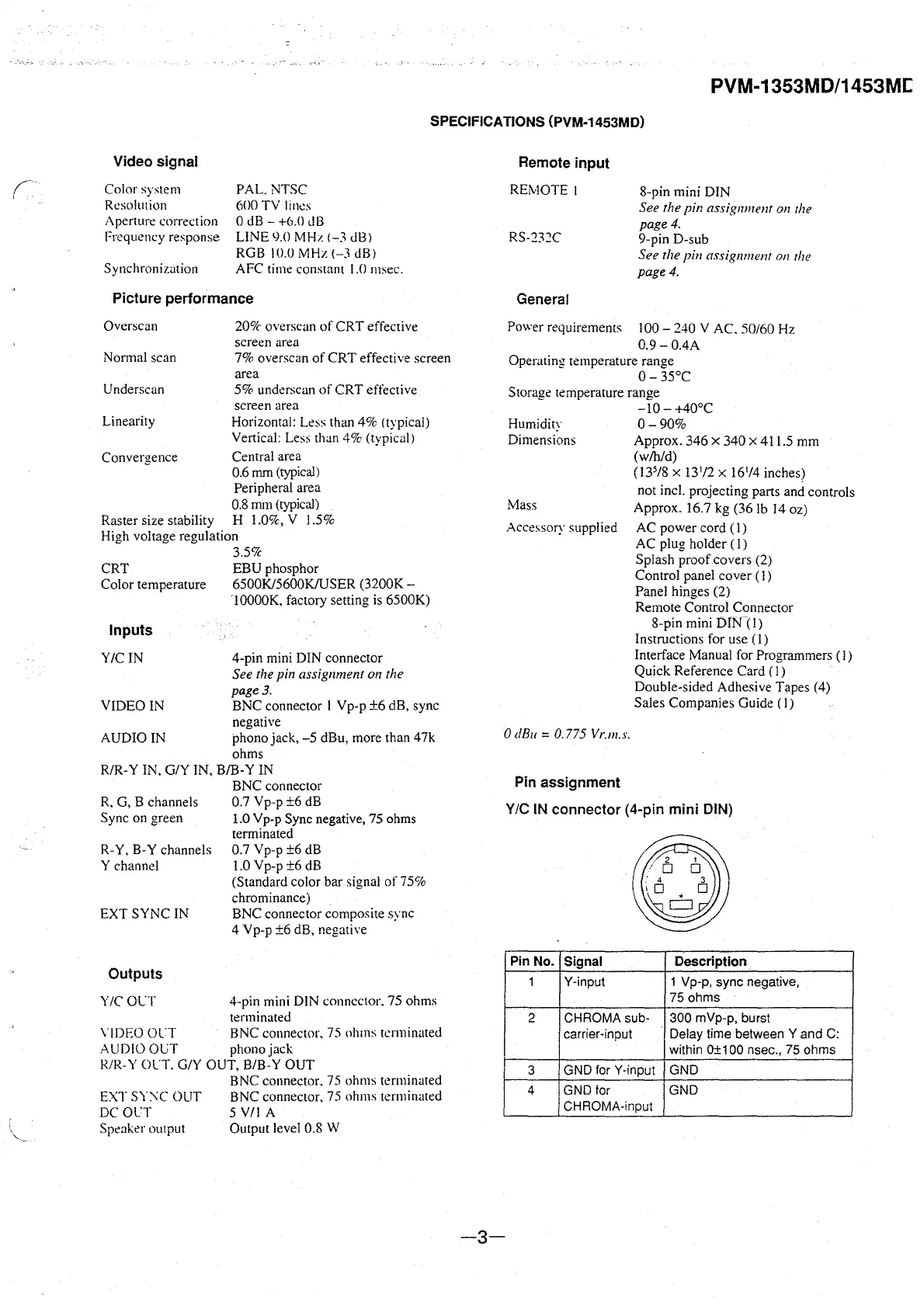

SPECIFICATIONS (PVM-1453MD)
Video signal
Color system
Resolution
Aperture correction
Frequency response
Synchronization
PAL. NTSC
600 TV lines
0 dB
- +6.0 dB
LINE
9.0 MHz (-3 dB)
RGB
IO.O MHz (-3 dB)
AFC time constant
1.0 111sec.
Picture performance
Overscan
Normal scan
Underscan
Linearity
20% overscan of CRT effective
screen area
7% overscan of CRT effective screen
area
5% underscan of CRT effective
screen area
Horizontal:
Less than 4% (typical)
Vertical: Less than 4% (typical)
Convergence Central area
0.6
mm (typical)
Peripheral area
0.8 mm (typical)
Raster size stability
H I .O<x, V I .5%
High voltage regulation
3.5%
CRT EBU phosphor
Color temperature 6500K/5600K/USER (3200K
-
·10000K, factory setting is 6500K)
Inputs
Y/CIN
VIDEO IN
AUDIO IN
4-pin mini DIN connector
See the pin assignment on the
page 3.
BNC connector I Vp-p ±6 dB, sync
negative
phono jack, -5 dBu, more than 47k
ohms
R/R-Y IN, G/Y IN, B/B-Y IN
R. G, B channels
Sync on green
BNC connector
0.7 Vp-p ±6 dB
1.0 Yp-p Sync negative, 75 ohms
terminated
R-Y, B-Y channels 0.7 Vp-p ±6 dB
Y channel 1.0 V p-p ±6 dB
EXT SYNC IN
Outputs
Y/C OLT
(Standard color bar signal of 75%
chrominance)
BNC connector composite sync
4 Vp-p ±6 dB, negative
4-pin mini DIN connector. 75 ohms
terminated
VIDEO OL'.T BNC connector, 75 ohms terminated
AUDIO Ol;T phonojack
R/R-Y m·T. G/Y OUT. BIB-Y OUT
EXT
SY:\C OUT
DC OCT
Speaker output
BNC connector. 75 ohms terminated
BNC connector, 75 ohms terminated
5 V/1 A
Output level 0.8 W
Remote input
REMOTE I
RS-232C
General
8-pin mini DIN
See the pin assignment on the
page 4.
9-pin D-sub
See the pin assignment on the
page 4.
Power requirements 100 - 240 V AC. 50/60 Hz
0.9-0.4A
Operating temperature range
0-35°C
Storage temperature range
-I0-+40°C
Humidity
O - 90%
Dimensions Approx. 346 x 340 x 4 I 1.5 mm
(w/h/d)
(13
5
/8 x 13
1
/2 x 16
1
/4 inches)
not incl. projecting parts and controls
Mass Approx. 16.7 kg (36 lb 14 oz)
Accessory supplied AC power cord
(I)
AC plug holder (I)
Splash proof.covers (2)
Control panel cover
(I)
Panel hinges (2)
Remote Control Connector
8-pin mini
DfN(l)
Instructions for use ( 1)
Interface Manual for Programmers (I)
Quick Reference Card (I)
Double-sided Adhesive Tapes (4)
Sales Companies Guide (
1)
0 dB11 = 0. 775 Vr.111.s.
Pin assignment
Y/C IN connector (4-pin mini DIN)
Pin No.
Signal Description
1 Y-input 1 Vp-p, sync negative,
75 ohms
2
CHROMA sub- 300 mVp-p, burst
carrier-input Delay time between Y and C:
within 0±100 nsec., 75 ohms
3 GND for Y-input GND
4 GND for GND
CHROMA-input
-3-
