– 10 –
KV-BM142M70
RM-W101

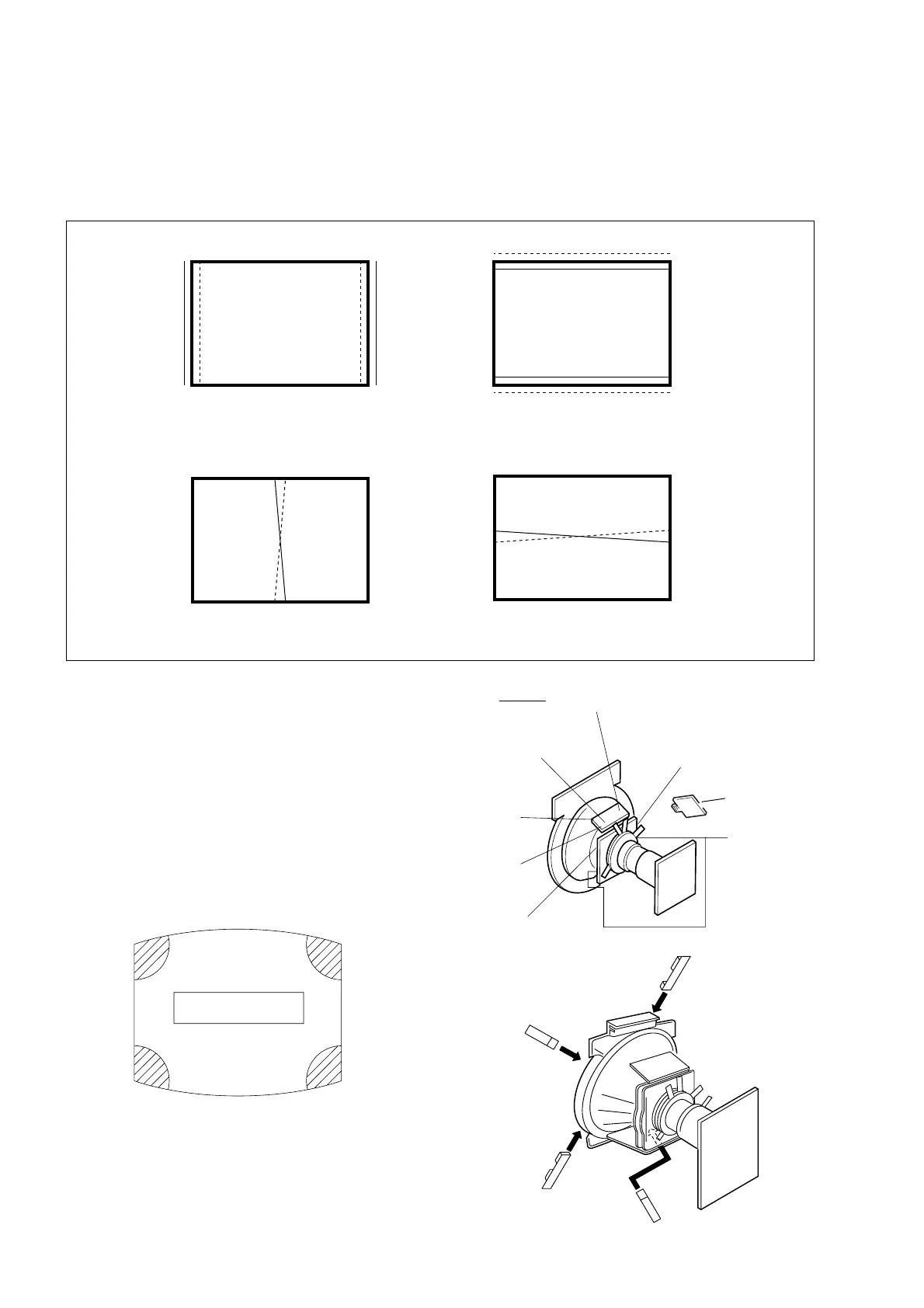

(2) Convergence Rough Adjustment
Preparation:
• Before starting this adjustment, adjust the horizontal
static convergence and the vertical static
convergence
TLV
RB
YCH
R
B
XCV
B
R
TLH
B
R
Piece A (90), conv. correct
a
b
c
d
TLH Insert TLH Correction Plate to DY Pocket
(Left or Right)
YCH Insert YCH VOL on DY
TLV Rotate TLV VOL on DY
XCV Rotate XCV Adj core on DY
(3) Screen corner Convergence
1. Affix a Piece A (90), conv. correct corresponding to
the misconverged areas.
ba
cd
a-d : screen-corner
misconvergence
ON DY:
TLV
TLV
XCV
YCH
DY pocket
DY pocket
TLH Plate
XCV
