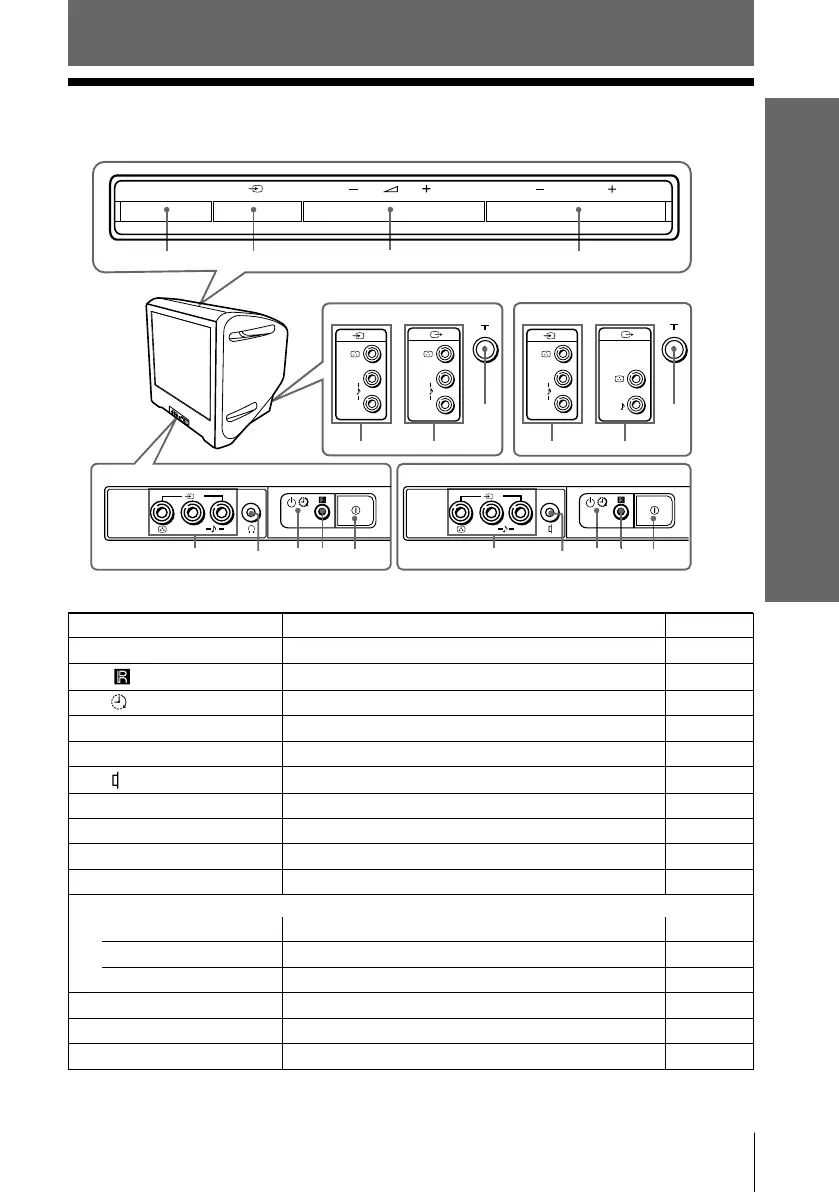

x TV top control, front and rear panels
TV top control panel
TV rear panel
KV-BT212M80 KV-BM142M70
KV-BT212M80 KV-BM142M70
Button/Terminal Function Page
1 ! Turn off or turn on the TV. 6
2 Remote control sensor. –
3 Wake Up indicator. 17
3 1 Standby indicator. 6
4 i Headphone jack. –
4 Earphone jack. –
5 t2 Video input terminal 2. 21
6 PROG +/– Select program number. –
7 2 +/– Adjust volume. –
8 t Select TV or video input. 21
Menu operations
7 2 +/– Select and adjust items. –
8 t Confirm selected items. –
9 MENU Display or cancel the menu. –
0 8 Antenna input terminal. 21
qa T Monitor output terminal. 21
qs t1 Video input terminal 1. 21
