– 56 –
KV-BM142M70
RM-W101
1 X-2022-871-1 BEZNET ASSY 3,4,25,27,28
2 4-093-582-02 DOOR CONTROL
3 4-092-230-01 BUTTON POWER
4 4-036-405-11 SPRING COMPRESSION
5 ! 8-735-570-05 PICTURE TUBE (A34LRG70X)
6 1-452-032-00 MAGNET DISC
7 ! 4-094-153-02 REAR COVER (x 6 SCREWS)
8 4-081-577-02 SPACER(S) DY
9 4-077-228-02 PIECE TLH CONVERGENCE
10 ! 8-451-401-41 DEFLECTION YOKE (Y14RSA-S3)
11 * A-1075-951-A MOUNTED PWB, C
12 4-084-918-01 HOLDER HV CABLE
13 4-057-862-01 SCREW, TAPPING 5+ CROWN WASHER
14 4-095-706-01 SPRING EXTENSION
15 ! 1-456-278-11 DEGAUSSING COIL
16 4-094-690-01 PIECE A(90) CONV CORRECT
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
17 1-825-293-21 LOUD SPEAKER (5 x 9 CM)
18 * A-1075-948-A COMPLETE PWB, A
19 ! 1-453-309-21 TRANSFORMER ASSY FLYBACK
(NX-4450//M3A4)
20 1-693-659-11 TUNER (TEQEC2)
21 !* 4-095-890-11 BRACKET TERMINAL (ICON)
(x 2 SCREWS)
22 ! 1-824-968-11 POWER CORD (WITH CONNECTOR)
23 ! 4-022-115-00 HOLDER AC CORD
24 !* 4-092-370-02 BRACKET FBT (z ONE SCREW)
25 * 4-093-771-01 COVER, FRONT PANEL (z 2 SCREWS)
26 1-477-678-42 TOP SWITCH BLOCK
27 * 4-092-231-01 GUIDE LIGHT (z ONE SCREW)
28 4-093-704-01 SPRING DOOR (z ONE SCREW)
29 4-069-978-01 CUSHION, DGC
• Items marked " ∗ " are not stocked since
they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
The components identified by
shading and mark ! are critical
for safety.
Replace only with part number
specified.
NOTE:
• Items with no part number and no
description are not stocked because
they are seldom required for routine
service.
• The construction parts of an assembled
part are indicated with a collation
number in the remark column.

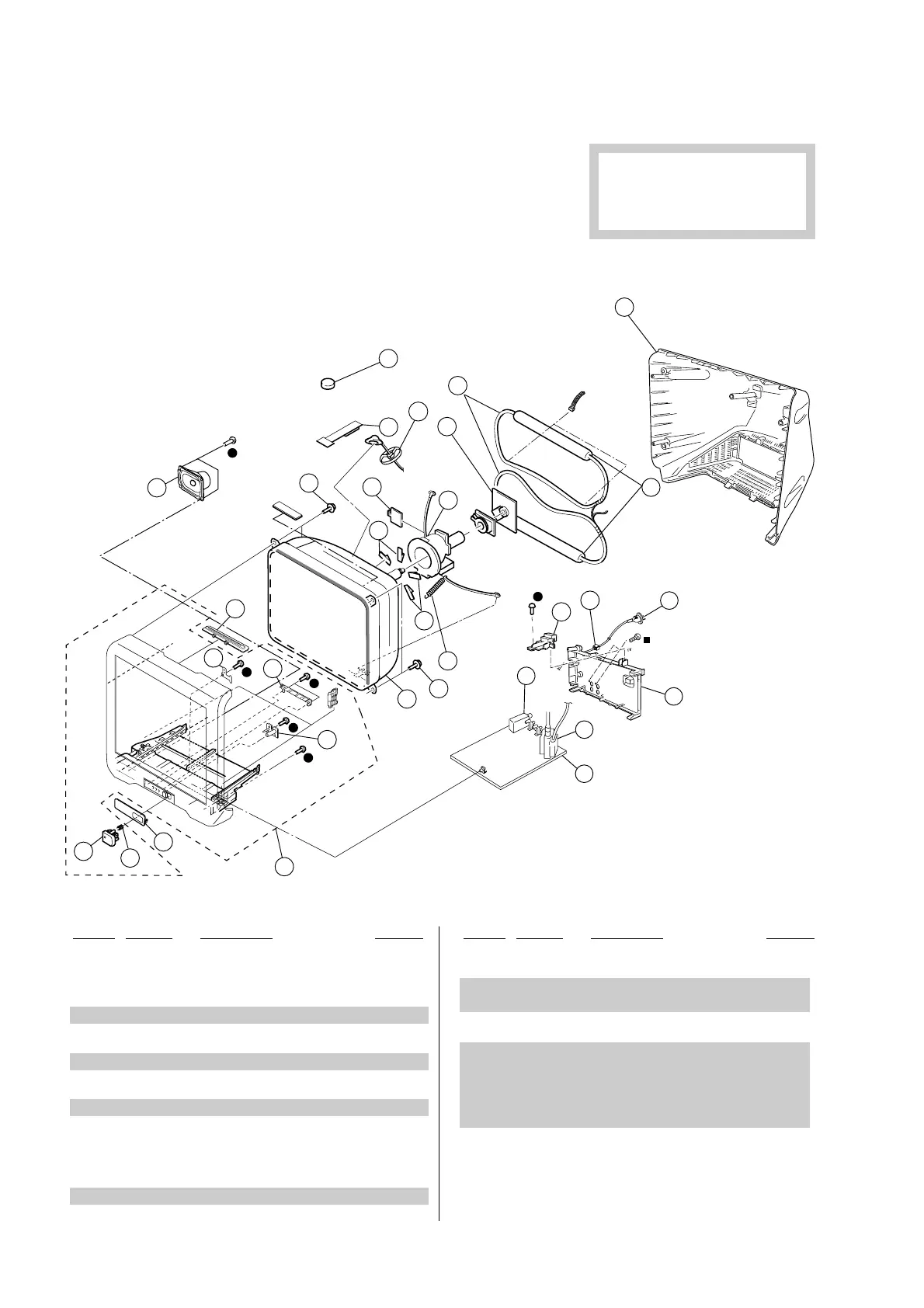

5-1. CHASSIS
r
: 7-685-648-79 SCREW +BVTP 3 × 12 TYPE2 IT-3
p
: 7-685-663-71 SCREW +BVTP 4 × 16 TYPE2 IT-3
12
5
27
4
2
3
26
1
25
13
8
8
9
10
11
14
15
6
24
17
13
16
18
20
22
21
19
7
23
29
28
SECTION 5
EXPLODED VIEWS
