Sony Trinitron RM-W101 - C Board Schematic Diagram

– 49 –
KV-BM142M70
RM-W101
Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]

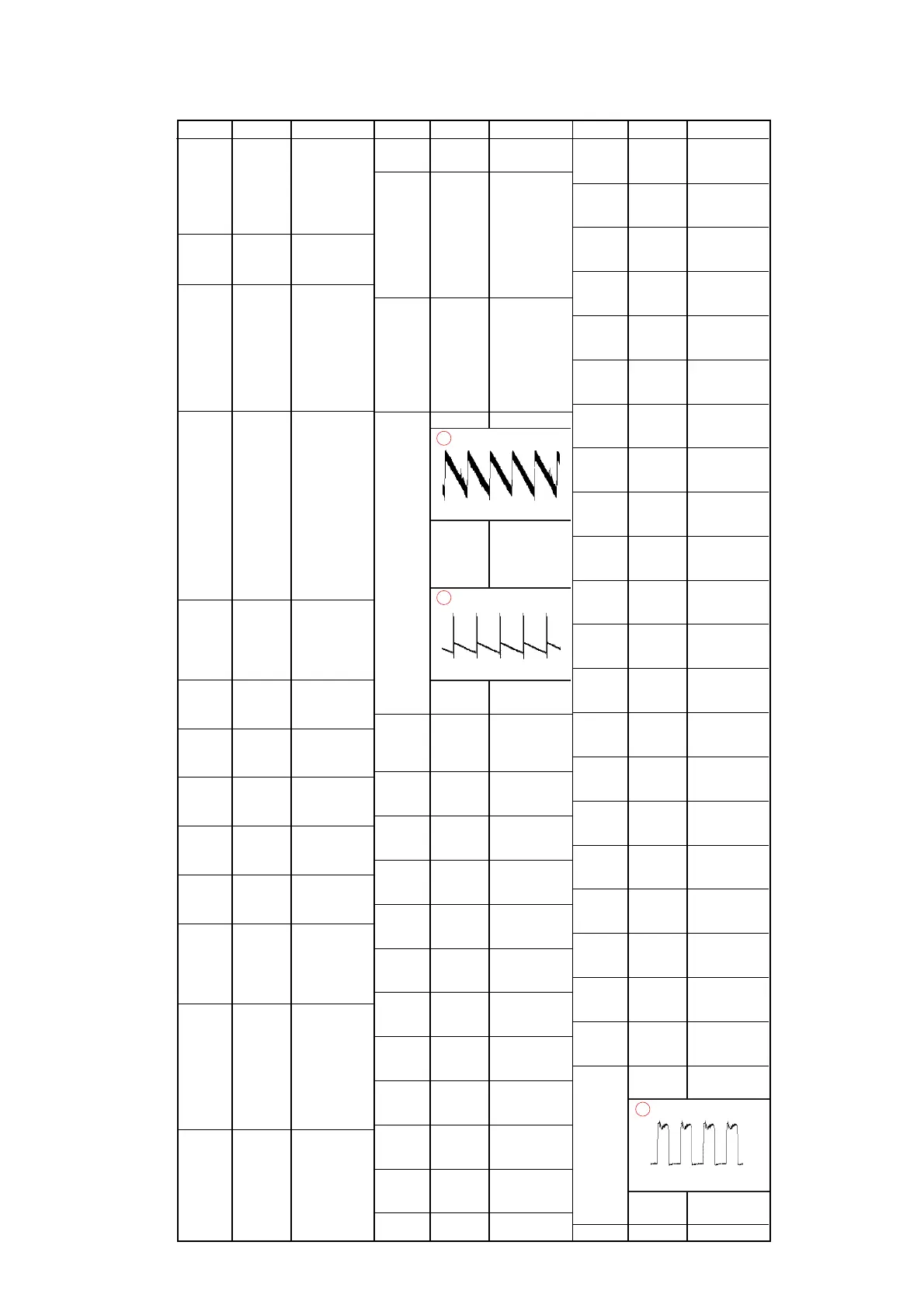

A BOARD VOLTAGE LIST AND WAVEFORM
123 3.2
124 1.7
125 0
126 3.3
127 3.3
128 0
IC002 I 3.3
G0
O 3.2
IC003 1 0
20
30
40
5 (3.6)[3.4]
6 (3.6)[3.4]
70
8 3.3
IC200 1 0
20
3 19.9
40
50
60
7 9.9
8 3.5
90
10 21.1
11 9.6
12 0
IC601 1 0.5
2 (34.2)[34.6]
3 0.3
4 0.3
5 (2.1)[2.9]
IC602 I 10.9
G0
O 8.9
IC603 I 3.2
G0
O 1.7
IC604 I 8.9
G0
O (4.2)[5.0]
IC605 1 137.1
2 13.6
30
IC606 I 23.7
G0
O 3.3
IC607 1 3.2
20
3 3.2
4 1.2
5 1.7
IC800 1 0
20
30
40
50
60
70
8 10.9
IC801 1 2.3
2 0.8
3 1.5
40
5 2.6
6 2.3
7 5.8
8 8.9
IC802 1 (4.5)[4.4]
2 3.2
3 3.2
40
5 4.4
6 (4.4)[4.9]
7 3.4
8 8.9
IC803 1 0
20
30
40
50
60
70
80
IC804 1 0.4
648.0mV
17
2 13.3
3 -12.4
4 -13.3
5 (196.0)[141.6]
54.40V
16
6 13.2
7 0.4
PH600 1 23.1
2 22.0
3 (33.0)[33.4]
4 2.6
Q001 B 0
C 2.3
E0
Q006 B (0)[3.3]
C (3.3)[2.0]
E (0.2)[1.9]
Q007 B (3.2)[0]
C (2.0)[3.3]
E (1.9)[0.3]
Q008 B 0.5
C0
E0
Q009 B 0
C0
E0
Q010 B 0
C0
E0
Q011 B 0
C0
E0
Q012 B 0.6
C (40.7)[32.9]
E0
Q013 B (40.7)[32.8]
C 1.7
E0
Q016 B 0
C0
E0
Q100 B (2.9)[3.1]
C 8.9
E (2.4)[0]
Q101 B 0
C 8.9
E0
Q102 B 3.2
C 2.4
E (7.6)[8.6]
Q103 B (0)[3.2]
C (3.3)[1.0]
E (0)[34.7]
Q104 B (3.1)[10.6]
C (38.3)[5.2]
E0
Q105 B 8.9
C 130.1
E0
Q106 B 0
C0
E0
Q111 B 0
C0
E0
Q200 B 1.9
C (76.5)[68.7]
E0
Q201 B (18.4)[20.3]
C 21.1
E 21.1
Q202 B (7.7)[8.9]
C (-0.4)[-0.6]
E 8.8
Q204 B 0
C 8.9
E0
Q205 B 0
C0
E0
Q601 B 45.6
C 10.9
E0
Q605 B (22.7)[21.5]
C 0.2
E (23.4)[23.1]
Q606 B 0.2
C 22.3
E 20.2
Q608 B (94.0)[93.7]
C 19.5
E0
Q609 B 0.6
C 93.8
E0
Q800 B 0
C0
E0
Q801 B (69.8)[0]
C0
E0
Q802 B 0
C0
E0
Q803 B (50.4)[51.0]
1.440V
14
C 48.5
E0
