- 13 -

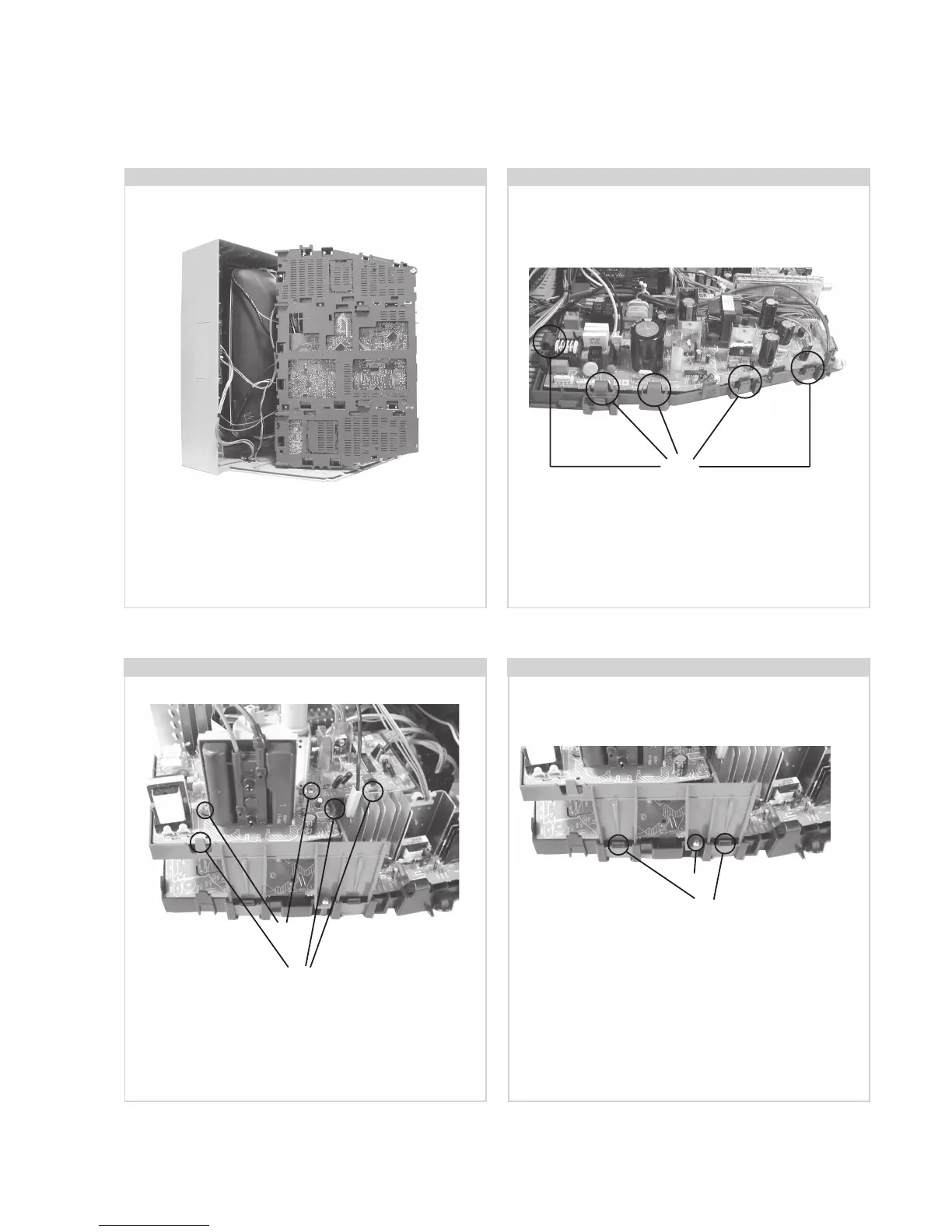

2-4. Service Position 2-5. G Board Removal
To remove the G Board release the clips circled and ease the
board gently away from the support bracket.
Position the chassis as indicated to access the solder side.
To gain access to the underside of the boards follow the
instructions on page 16. [Removal and Replacement of the
main bracket bottom plates ].
Clips
2-6. D2 Board Removal
To remove the D2 board remove the two screws circled,
release the clips circled and ease the board gently away from
the support bracket.
Screws
Clips
2-7. D Board Removal
To remove the D board first remove the D2 bracket by
removing the two screws (one on each side of the bracket)
and releasing the four clips (two on each side of the bracket).
The D board can then be removed using the same method as
the G board.
Screw
Clips
