Sony TrinitronKV-28FX66B - VM Board Schematic; H2 Board Schematic; F4 Board Schematic; H1 Board Schematic

ABCDE F
G
HIJKLMN
1
2
3
4
5
6
7
8
9
10
11
- 35 -

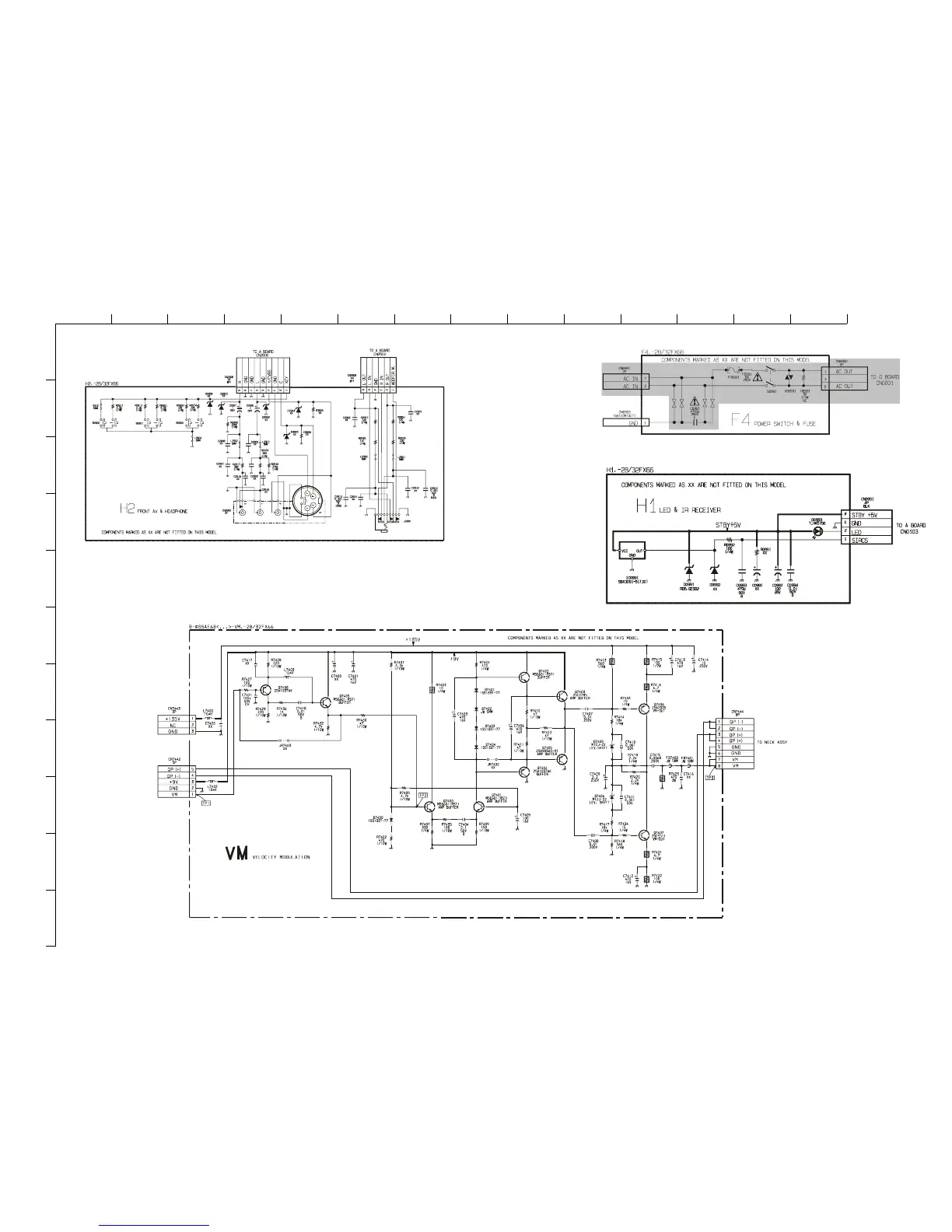

~ VM Board Schematic Diagram [ Velocity Modulation ] ~
~ H1 Board Schematic Diagram [ LED & IR Receiver ] ~
~ F4 Board Schematic Diagram [ Power Switch & Fuse ] ~
~ H2 Board Schematic Diagram [ Front AV & Headphone ] ~
