Sony TrinitronKV-28FX66B - 6 Exploded Views; Chassis

SECTION 6
EXPLODED VIEWS
NOTE :
Items with no part number and no description are not
stocked because they are seldom required for routine
service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

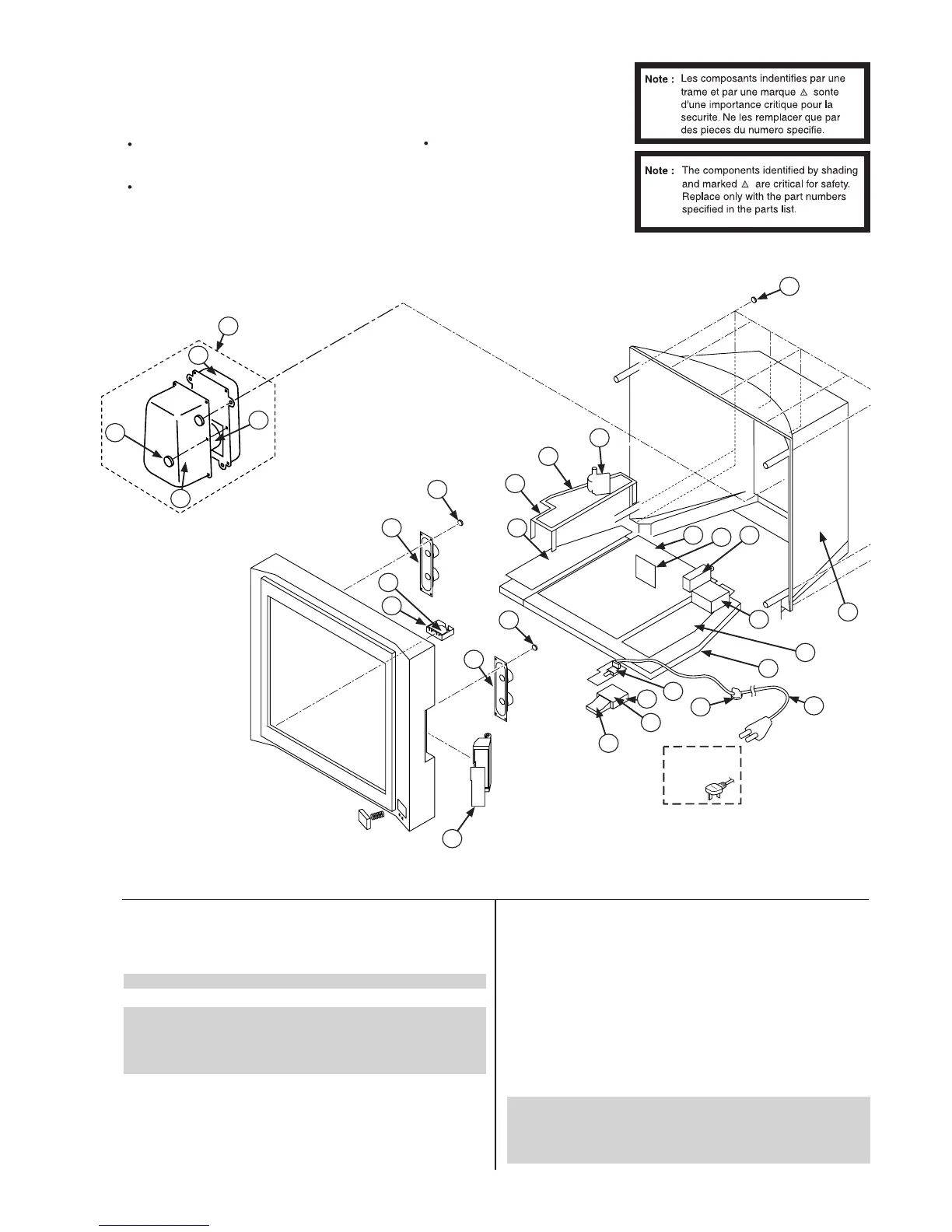

6-1. CHASSIS
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 49 -
1 *A-1647-043-A H2 BOARD, COMPLETE
2 *A-1646-243-A H1 BOARD, COMPLETE
3 *A-1625-000-A F4 BOARD, COMPLETE
4 *4-206-097-01 F4, H1 BRACKET
5 £ 1-571-433-21 SWITCH, PUSH (AC POWER)
6 *4-202-531-01 AC CORD LOCK (SC)
7 £ 1-823-853-11 CORD, POWER (KV-28FX66B/28FX66E/32FX66B/
KV-32FX66E/32FX66K)
£ 1-776-860-12 POWER CORD, FILTER (UK)
(KV-28FX66U/32FX66U)
8 *4-206-106-11 BRACKET, MAIN (KV-28FX66)
*4-206-106-01 BRACKET, MAIN (KV-32FX66)
9 *A-1300-173-A G BOARD, COMPLETE
10 1-424-855-11 COIL, CHOKE 29MMH
11 8-598-535-12 FRONTEND BTF-EF411 (KV-28FX66B/32FX66B)
8-598-533-01 FRONTEND BTF-EC411 (KV-28FX66E/32FX66E
KV-32FX66K)
8-598-529-01 FRONTEND BTF-EU611 (KV-28FX66U/32FX66U)
12 *A-1400-284-A M2 BOARD, COMPLETE
13 *A-1300-358-A A BOARD, COMPLETE (KV-28FX66B)
*A-1300-167-A A BOARD, COMPLETE (KV-28FX66E)
*A-1300-601-A A BOARD, COMPLETE (KV-28FX66U)
*A-1300-579-A A BOARD, COMPLETE (KV-32FX66B)
*A-1300-172-A A BOARD, COMPLETE (KV-32FX66E/32FX66K)
*A-1300-580-A A BOARD, COMPLETE (KV-32FX66U)
14 £ 1-453-378-21 TRANSFORMER ASSY, FLYBACK (NX-6020//Z214)
(KV-28FX66)
£ 1-453-444-11 TRANSFORMER ASSY, FLYBACK (NX-6020//Z2B4)
(KV-32FX66)
1
25
26
12
15
4
8
9
11
14
21
22
6
7
2
10
13
24
UK Models
only
23
16
3
5
17
18
19
18
20
19
28
27
