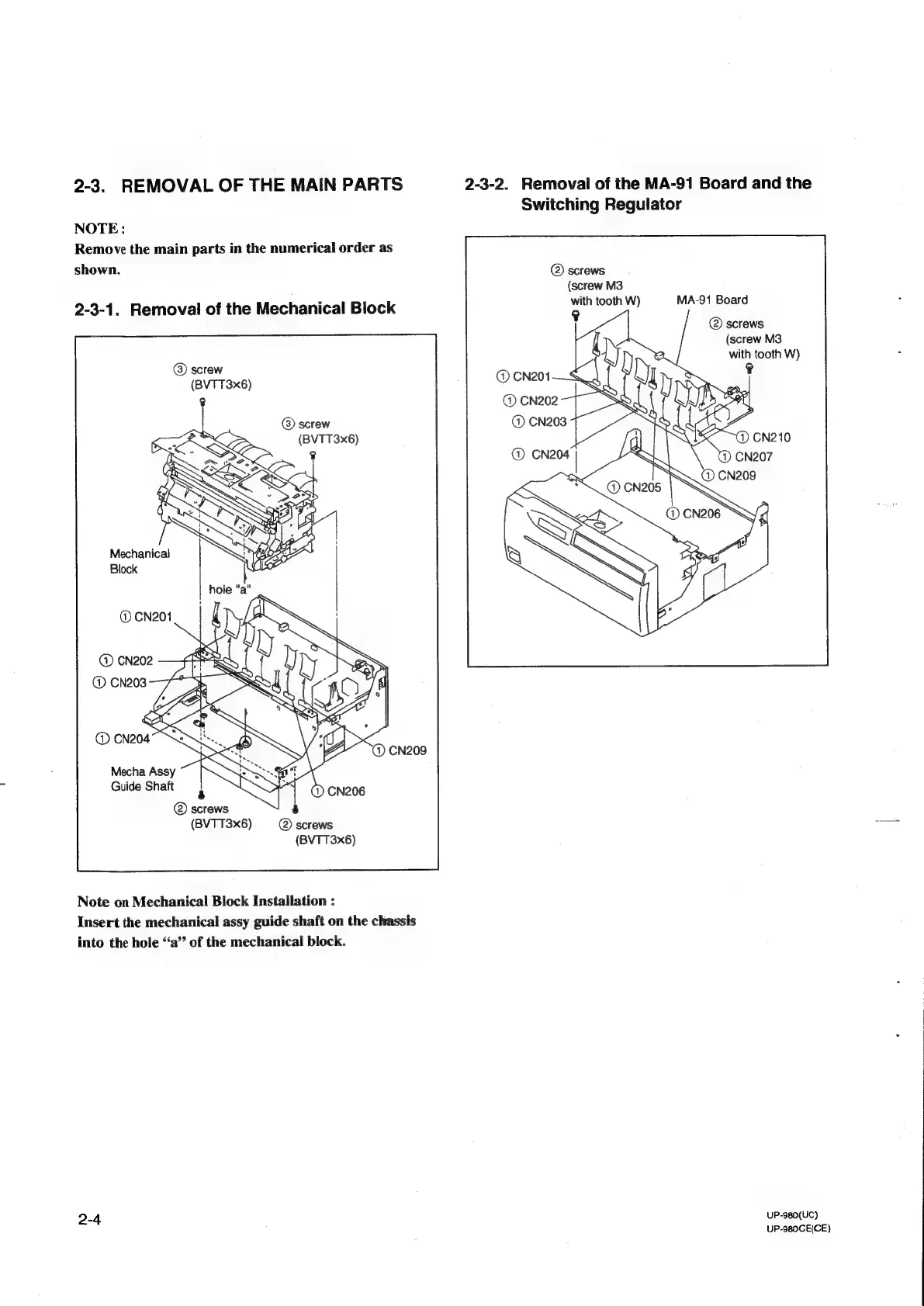

2-3. REMOVAL OF THE MAIN PARTS
NOTE:
Remove the main parts in the numerical order as
shown.
2-3-1. Removal of the Mechanical Block
@ screw
(BVTT3x6)
Mechanical
Block
Mecha Assy
Guide Shaft
(BVTT3x6)
@ screws
(BVTT3x6)
Note on Mechanical Block Installation :
Insert the mechanical assy guide shaft on the chassis
into the hole “a” of the mechanical block.
2-3-2. Removal of the MA-91 Board and the
Switching Regulator
@® screws
(screw M3
with tooth W) MA-91 Board
@) screws
(screw M3
with tooth W)
2-4
UP-980(UC)
UP-980CE(CE)
