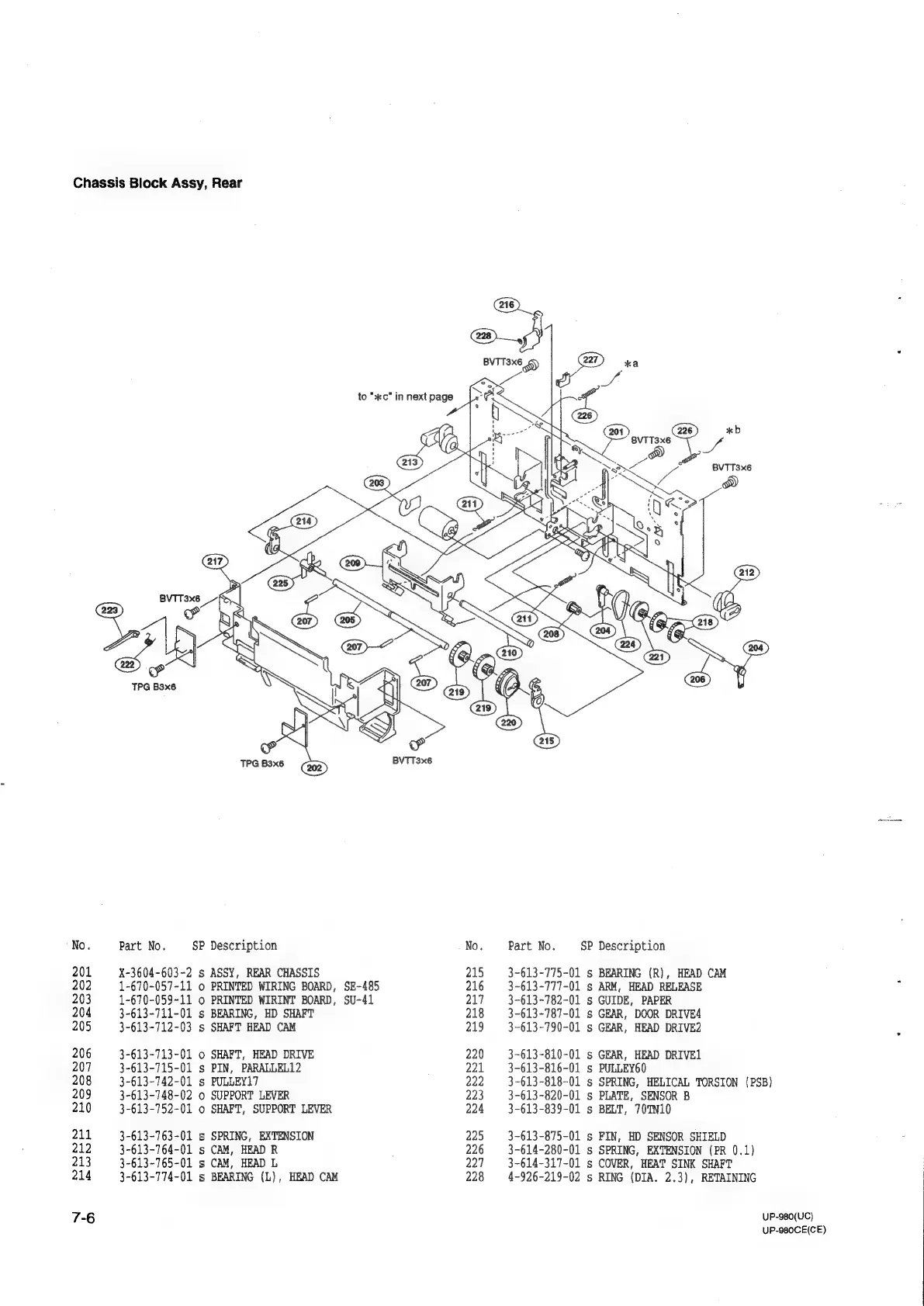

Sony UP-980 - Chassis Block Assy, Rear

Chassis Block Assy, Rear
No.
201
202
203
204
205
206
207
208
209
210
211
212
213
214
7-6
Part No. SP Description
X-3604-603-2 s ASSY, REAR CHASSIS
1-670-057-11 0 PRINTED WIRING BOARD, SE-485
1-670-059-11 0 PRINTED WIRINT BOARD, SU-41
3-613-711-01 s BEARING, HD SHAFT
3-613-712-03 s SHAFT HEAD CAM
3-613-713-01 o SHAFT, HEAD DRIVE
3-613-715-01 s PIN, PARALLEL12
3-613-742-01 s PULLEY17
3-613-748-02 0 SUPPORT LEVER
3-613-752-01 0 SHAFT, SUPPORT LEVER
3-613-763-01 s SPRING, EXTENSION
3-613-764-01 s CAM, HEAD R
3-613-765-01 s CAM, HEAD L
3-613-774-01 s BEARING (L), HEAD CAM
BVTT3x6
No.
215
216
217
218
219
220
221
222
223
224
225
226
227
228
Part No.
3-613-775-01
3-613-777-01
3-613-782-01
3-613-787-01
3-613-790-01
3-613-810-01
3-613-816-01
3-613-818-01
3-613-820-01
3-613-839-01
3-613-875-01
3-614-280-01
3-614-317-01
4-926-219-02
SP Description
s BEARING (R), HEAD CAM
S ARM, HEAD RELEASE
8 GUIDE, PAPER
S GEAR, DOOR DRIVE4
S GEAR, HEAD DRIVE2
GEAR, HEAD DRIVE]
PULLEY60
PLATE, SENSOR B
BELT, 70TN10
s
Ss
s
s
FIN, HD SENSOR SHIELD
SPRING, EXTENSION (PR 0.1)
COVER, HEAT SINK SHAFT
RING (DIA. 2.3), RETAINING
s
s
S SPRING, HELICAL TORSION (PSB)
s
s
UP-980(UC)
UP-980CE(CE)
