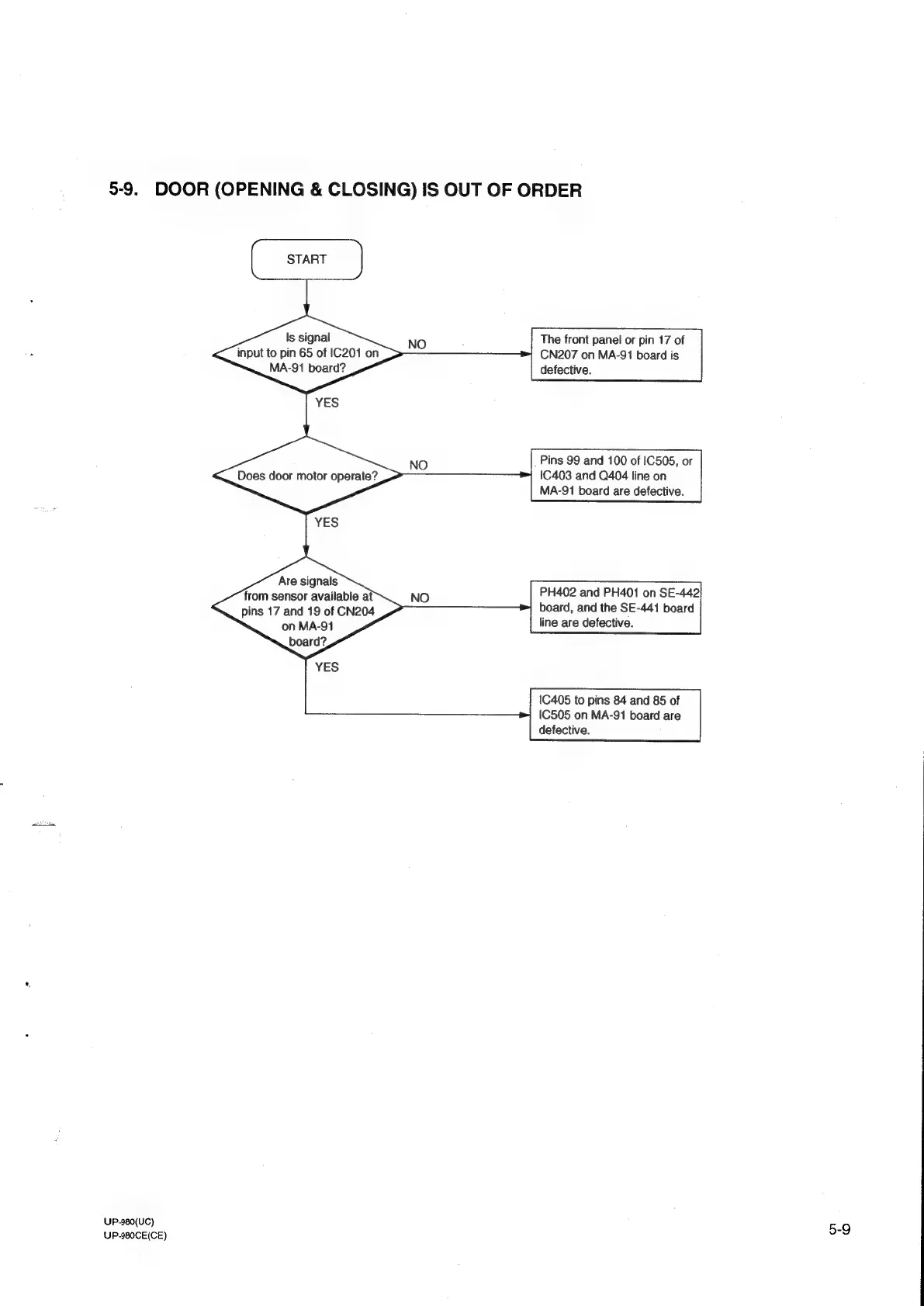

Sony UP-980 - 5-9. DOOR (OPENING & CLOSING) IS OUT OF ORDER

Sony UP-980
110 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
5-9.
DOOR
(OPENING
&
CLOSING)
IS
OUT
OF
ORDER
START
UP.980(UC)
UP-980CE(CE)
Is
signal
input
to
pin
65
of
IC201
on
MA-91
board?
NO
YES
NO
Does
door
motor
operate?
YES
Are
signals
from
sensor
available
at
pins
17
and
19
of
CN204
NO
The
front
panel
or
pin
17
of
CN207
on
MA-91
board
is
defective.
Pins
99
and
100
of
1C505,
or
IC403
and
Q404
line
on
MA-91
board
are
defective.
PH402
and
PH401
on
SE-442
board,
and
the
SE-441
board
line
are
defective.
1C-405
to
pins
84
and
85
of
IC505
on
MA-91
board
are
defective.
5-9
