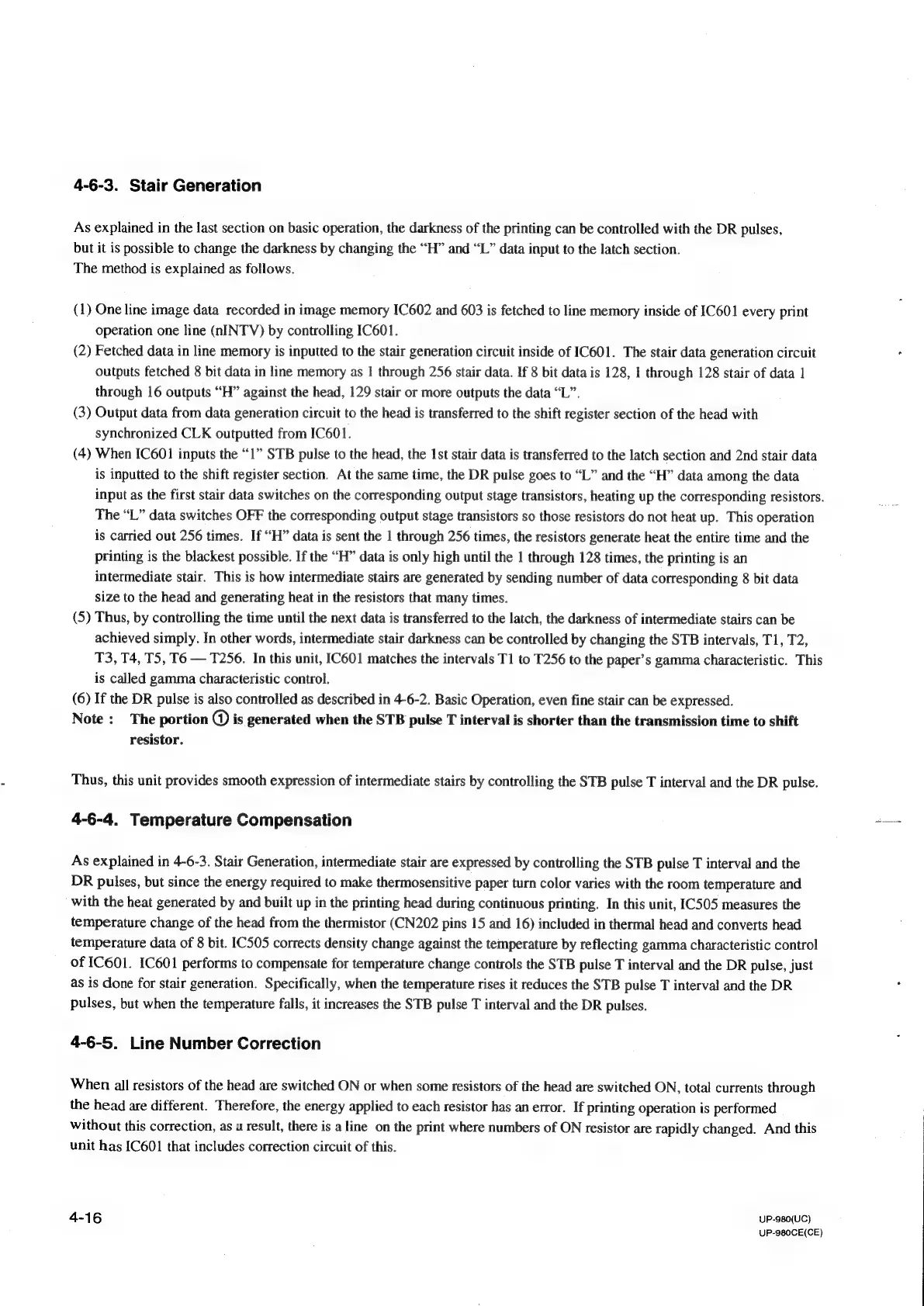

4-6-3.
Stair
Generation
As
explained
in
the
last
section
on
basic
operation,
the
darkness
of
the
printing
can
be
controlled
with
the
DR
pulses,
but
it
is
possible
to
change
the
darkness
by
changing
the
“H”
and
“L”
data
input
to
the
latch
section.
The
method
is
explained
as
follows.
(1)
One
line
data
recorded
in
memory
IC602
and
603
is
fetched
to
line
memory
inside
of
IC601
every
print
operation
one
line
(nINTV)
by
controlling
IC601.
(2)
Fetched
data
in
line
memory
is
inputted
to
the
stair
generation
circuit
inside
of
IC601.
The
stair
data
generation
circuit
outputs
fetched
8
bit
data
in
line
memory
as
|
through
256
stair
data.
If
8
bit
data
is
128,
}
through
128
stair
of
data
1
through
16
outputs
“H”
against
the
head,
129
stair
or
more
outputs
the
data
“L”.
(3)
Output
data
from
data
generation
circuit
to
the
head
is
transferred
to
the
shift
register
section
of
the
head
with
synchronized
CLK
outputted
from
IC601.
(4)
When
[C601
inputs
the
“1”
STB
pulse
to
the
head,
the
1st
stair
data
is
transferred
to
the
latch
section
and
2nd
stair
data
is
inputted
to
the
shift
register
section.
At
the
same
time,
the
DR
pulse
goes
to
“L”
and
the
“H”
data
among
the
data
input
as
the
first
stair
data
switches
on
the
corresponding
output
stage
transistors,
heating
up
the
corresponding
resistors.
The
“L”
data
switches
OFF
the
corresponding
output
stage
transistors
so
those
resistors
do
not
heat
up.
This
operation
is
carried
out
256
times.
If
“H”
data
is
sent
the
1
through
256
times,
the
resistors
generate
heat
the
entire
time
and
the
printing
is
the
blackest
possible.
If
the
“H”
data
is
only
high
until
the
1
through
128
times,
the
printing
is
an
intermediate
stair.
This
is
how
intermediate
stairs
are
generated
by
sending
number
of
data
corresponding
8
bit
data
size
to
the
head
and
generating
heat
in
the
resistors
that
many
times.
(5)
Thus,
by
controlling
the
time
until
the
next
data
is
transferred
to
the
latch,
the
darkness
of
intermediate
stairs
can
be
achieved
simply.
In
other
words,
intermediate
stair
darkness
can
be
controlled
by
changing
the
STB
intervals,
T1, T2,
T3,
T4,
TS,
T6
T256.
In
this
unit,
IC601
matches
the
intervals
T]
to
T256
to
the
paper’s
gamma
characteristic.
This
is
called
gamma
characteristic
control.
(6)
If
the
DR
pulse
is
also
controlled
as
described
in
4-6-2.
Basic
Operation,
even
fine
stair
can
be
expressed.
Note:
The
portion
()
is
generated
when
the
STB
pulse
T
interval
is
shorter
than
the
transmission
time
to
shift
resistor.
Thus,
this
unit
provides
smooth
expression
of
intermediate
stairs
by
controlling
the
STB
pulse
T
interval
and
the
DR
pulse.
4-6-4.
Temperature
Compensation
As
explained
in
4-6-3.
Stair
Generation,
intermediate
stair
are
expressed
by
controlling
the
STB
pulse
T
interval
and
the
DR
pulses,
but
since
the
energy
required
to
make
thermosensitive
paper
turn
color
varies
with
the
room
temperature
and
with
the
heat
generated
by
and
built
up
in
the
printing
head
during
continuous
printing.
In
this
unit,
1C505
measures
the
temperature
change
of
the
head
from
the
thermistor
(CN202
pins
15
and
16)
included
in
thermal
head
and
converts
head
temperature
data
of
8
bit.
IC505
corrects
density
change
against
the
temperature
by
reflecting
gamma
characteristic
control
of
IC601.
[C601
performs
to
compensate
for
temperature
change
controls
the
STB
pulse
T
interval
and
the
DR
pulse,
just
as
is
done
for
stair
generation.
Specifically,
when
the
temperature
rises
it
reduces
the
STB
pulse
T
interval
and
the
DR
pulses,
but
when
the
temperature
falls,
it
increases
the
STB
pulse
T
interval
and
the
DR
pulses.
4-6-5.
Line
Number
Correction
When
all
resistors
of
the
head
are
switched
ON
or
when
some
resistors
of
the
head
are
switched
ON,
total
currents
through
the
head
are
different.
Therefore,
the
energy
applied
to
each
resistor
has
an
error.
If
printing
operation
is
performed
without
this
correction,
as
a
result,
there
is
a
line
on
the
print
where
numbers
of
ON
resistor
are
rapidly
changed.
And
this
unit
has
[C601
that
includes
correction
circuit
of
this.
4-16
UP-980(UC)
UP-980CE(CE)
