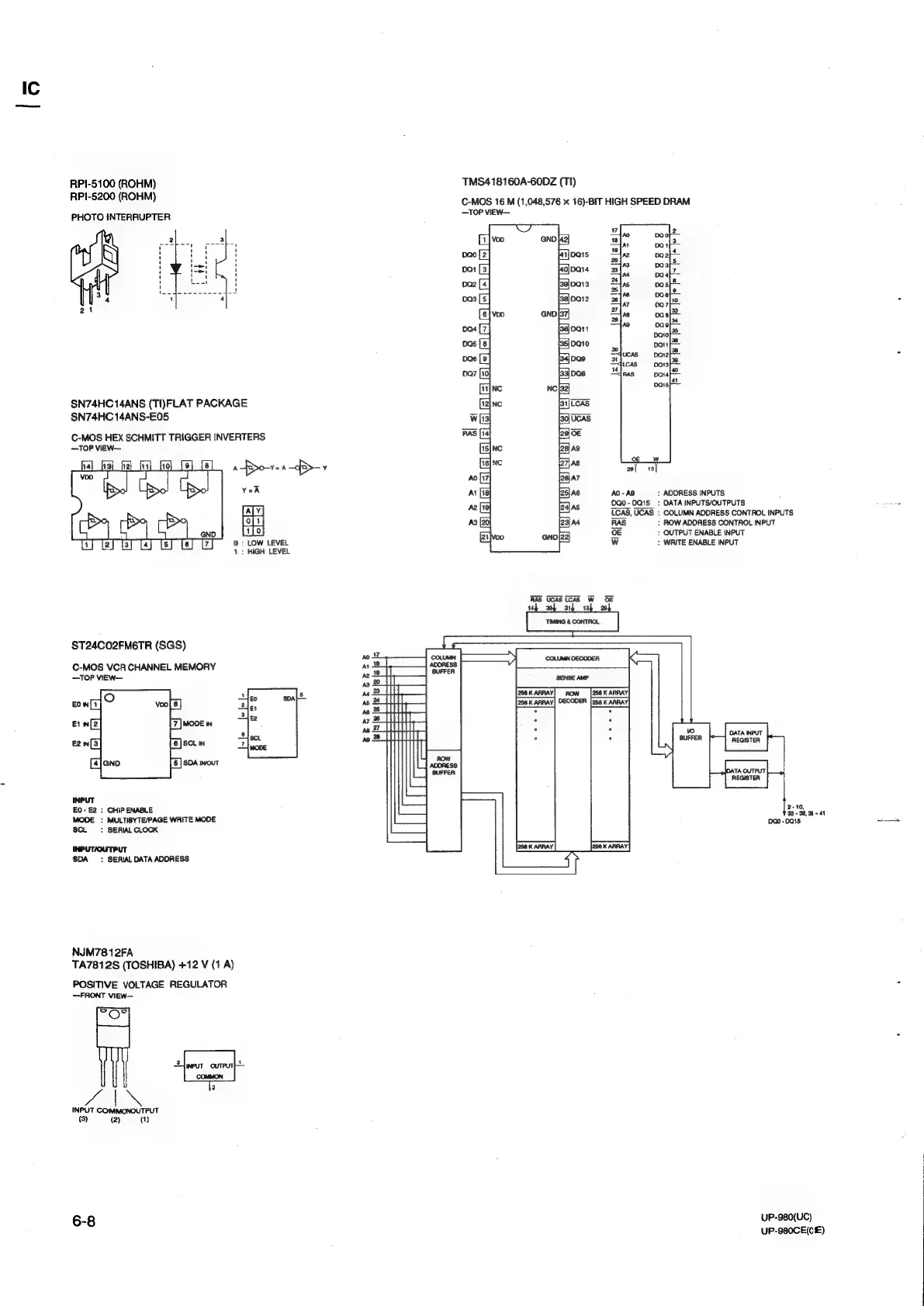

Sony UP-980 - IC

Ic
RPI!-5100 (ROHM)
RPI-5200 (ROHM)
PHOTO INTERRUPTER
SN74HC14ANS (TI)FLAT PACKAGE
SN74HC14ANS-E05
C-MOS HEX SCHMITT TRIGGER INVERTERS
—TOP VIEW—
[aly]
foi}
Lio}
0 : LOW LEVEL
1: HIGH LEVEL
ST24CO2FM6ETR (SGS)
C-MOS VCR CHANNEL MEMORY
—ToP WiEW—
INPUT
EQ- £2 : CHIPENABLE
MODE : MULTIBYTE/PAGE WRITE MODE
SCL: SERIAL CLOCK
INPUT/OUTPUT
SDA =: SERIAL DATA ADDRESS
NJM7812FA
TA7812S (TOSHIBA) +12 V (1 A)
POSITIVE VOLTAGE REGULATOR
—FRONT VIEW—
INPUT COMMONOUTPUT
(3) (2) (i)
TMS418160A-60DZ (TI)
C-MOS 16 M (1,048,576 x 16)-BIT HIGH SPEED DRAM
—TOP VIEW—
: ADDRESS INPUTS
> DATA INPUTS/OUTPUTS
: COLUMN ADDRESS CONTROL INPUTS
: ROW ADDRESS CONTROL INPUT
: OUTPUT ENABLE INPUT
: WRITE ENABLE INPUT
DATA INPUT
if REGISTER ‘
DATA OUTPUT
REGISTER
2-10,
93 - 36,38 - 41
0Q0- 0015
UP-980(UC)
UP-980CE(CE)
