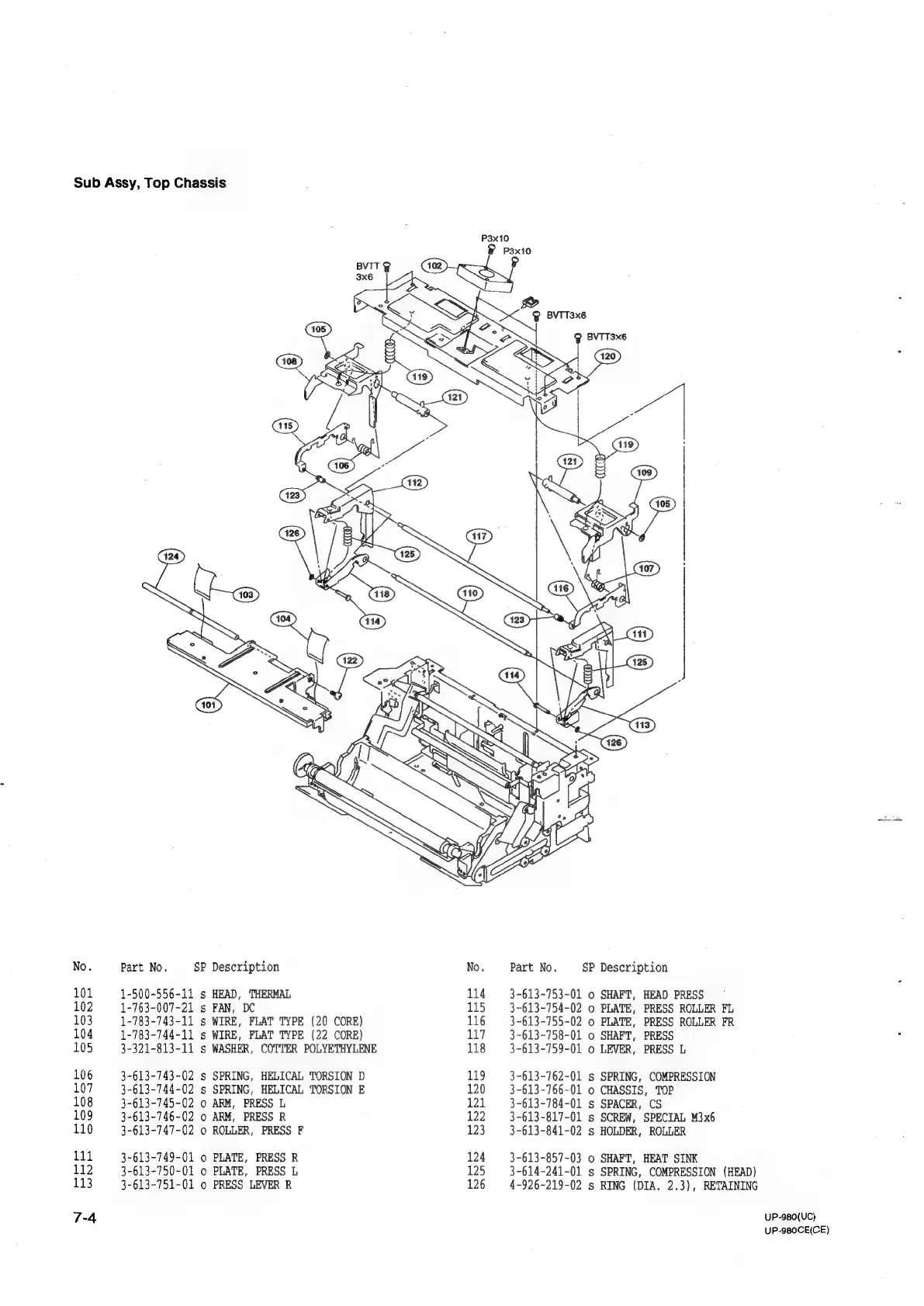

Sony UP-980 - Sub Assy, Top Chassis

Sub Assy, Top Chassis
No.
101
102
103
104
105
106
107
108
109
110
111
112
113
Part No. SP Description
1-500-556-11 s HEAD, THERMAL
1-763-007-21 s FAN, DC
1-783-743-11 s WIRE, FLAT TYPE (20 CORE)
1-783-744-11 s WIRE, FLAT TYPE (22 CORE)
3-321-813-11 s WASHER, COTTER POLYETHYLENE
3-613-743-02 s SPRING, HELICAL TORSION D
3-613-744-02 s SPRING, HELICAL TORSION E
3-613-745-02 o ARM, PRESS L
3-613-746-02 o ARM, PRESS R
3-613-747-02 0 ROLLER, PRESS F
3-613-749-01 0 PLATE, PRESS R
3-613-750-01 o PLATE, PRESS L
3-613-751-01 © PRESS LEVER R
No.
114
115
116
117
118
119
120
121
122
123
124
125
126
Part No.
3-613-753-01
3-613-754-02
3-613-755-02
3-613-758-01
3-613-759-01
3-613-762-01
3-613-766-01
3-613-784-01
3-613-817-01
3-613-841-02
3-613-857-03
3-614-241-01
4-926-219-02
SP
ie)
0)
ce)
ce)
fe)
s
fe)
s
8
s
ce)
s
8
Description
SHAFT, HEAD PRESS
PLATE, PRESS ROLLER FL
PLATE, PRESS ROLLER FR
SHAFT, PRESS
LEVER, PRESS L
SPRING, COMPRESSION
CHASSIS, TOP
SPACER, CS
SCREW, SPECIAL M3x6
HOLDER, ROLLER
SHAFT, HEAT SINK
SPRING, COMPRESSION (HEAD)
RING (DIA. 2.3), RETAINING
UP-980(UC)
UP-980CE(CE)
