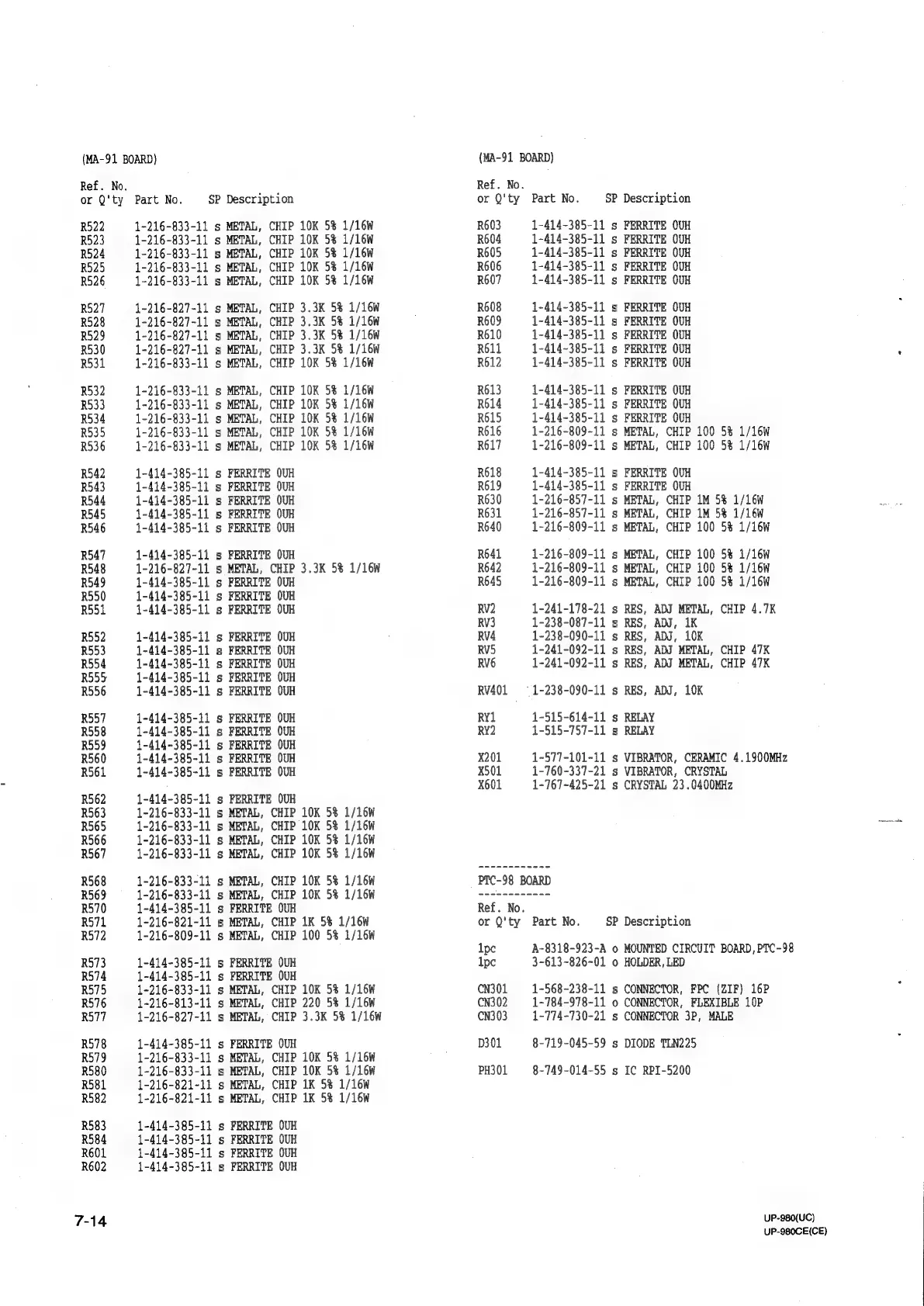

Sony UP-980 - (MA-91 BOARD) - Electrical Parts List

(MA-91 BOARD)
Ref. No.
or Q'ty Part No. SP
R522 1-216-833-11 s
R523 1-216~-833-11 s
R524 1-216-833-11 s
R525 1-216-833-11 s
R526 1-216-833-11 s
R527 1-216-827-11 s
R528 1-216-827-11 s
R529 1-216-827-11 s
R530 1-216-827-11 s
R531 1-216-833-11 s
R532 1-216-833-11 s
R533 1-216-833-11 s
R534 1-216-833-11 s
R535 1-216-833-11 s
R536 1-216-833-11 s
R542 1-414-385-11 s
R543 1-414-385-11 s
R544 1-414-385-11 s
R545 1-414-385-11 s
R546 1-414-385-11 s
R547 1-414-385-11 s
R548 1-216-827-11 s
R549 1-414-385-11 s
R550 1-414-385-11 s
R551 1-414-385-11 s
R552 1-414-385-11 s
R553 1-414-385-11 s
R554 1-414-385-11 s
R555 1-414-385-11 s
R556 1-414-385-11 s
R557 1-414-385-11 s
R558 1-414-385-11 s
R559 1-414-385-11 s
R560 1-414-385-11 s
R561 1-414-385-11 s
R562 1-414-385-11 s
R563 1-216-833-11 s
R565 1-216-833-11 s
R566 1-216-833-11 s
R567 1-216-833-11 s
R568 1-216-833-11 s
R569 1-216-833-11 s
R570 1-414-385-11 s
R571 1-216-821-11 s
R572 1-216-809-11 s
R573 1-414-385-11 s
R574 1-414-385-11 s
R575 1-216-833-11 s
R576 1-216-813-11 s
R577 1-216-827-11 s
R578 1-414-385-11 s
R579 1-216-833-11 s
R580 1-216-833-11 s
R581 1-216-821-11 s
R582 1-216-821-11 s
R583 1-414-385-11 s
R584 1-414-385-11 s
R601 1-414-385-11 s
R602 1-414-385-11 s
7-14
Description
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 3.3K 5% 1/16W
METAL, CHIP 3.3K 5% 1/16W
METAL, CHIP 3.3K 5% 1/16W
METAL, CHIP 3.3K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
FERRITE 0UH
FERRITE OUH
FERRITE OUH
FERRITE OUH
FERRITE QUH
FERRITE OUH
METAL, CHIP 3.3K 5% 1/16W
FERRITE OUH
FERRITE 0UH
FERRITE 0UH
FERRITE OUH
FERRITE OUH
FERRITE 0UH
FERRITE 0UH
FERRITE OUH
FERRITE OUH
FERRITE OUH
FERRITE QUH
FERRITE 0UH
FERRITE 0UH
FERRITE 0UH
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
FERRITE QUH
METAL, CHIP 1K 5% 1/16W
METAL, CHIP 100 5% 1/16W
FERRITE 0UH
FERRITE 0UH
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 220 5% 1/16W
METAL, CHIP 3.3K 5% 1/16W
FERRITE QUH
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 10K 5% 1/16W
METAL, CHIP 1K 5% 1/16W
METAL, CHIP 1K 5% 1/16W
FERRITE QUH
FERRITE QUH
FERRITE OUH
FERRITE OUH
(MA-91 BOARD)
Ref. No.
or Q'ty Part No. SP Description
R603 1-414-385-11 s FERRITE OUH
R604 1-414-385-11 s FERRITE OUH
R605 1-414-385-11 s FERRITE QUH
R606 1-414-385-11 s FERRITE OUH
R607 1-414-385-11 s FERRITE 0UH
R608 1-414-385-11 s FERRITE 0UH
R609 1-414-385-11 s FERRITE 0UH
R610 1-414-385-11 s FERRITE 0UH
R611 1-414~-385-11 s FERRITE OUH .
R612 1-414-385-11 s FERRITE 0UH
R613 1-414-385-11 s FERRITE OUH
R614 1-414-385-11 s FERRITE 0UH
R615 1-414-385-11 s FERRITE 0UH
R616 1-216-809-11 s METAL, CHIP 100 5% 1/16W
R617 1-216-809-11 s METAL, CHIP 100 5% 1/1léw
R618 1-414-385-11 s FERRITE 0UH
R619 1-414-385-11 s FERRITE OUH
R630 1-216-857-11 s METAL, CHIP 1M 5% 1/16W
R631 1-216-857-11 s METAL, CHIP 1M 5% 1/16W
R640 1-216-809-11 s METAL, CHIP 100 5% 1/16W
R641 1-216-809-11 s METAL, CHIP 100 5% 1/16W
R642 1-216-809-11 s METAL, CHIP 100 5% 1/16W
R645 1-216-809-11 s METAL, CHIP 100 5% 1/16W
RV2 1-241-178-21 s RES, ADJ METAL, CHIP 4.7K
RV3 1-238-087-11 s RES, ADJ, 1K
RV4 1-238-090-11 s RES, ADJ, 10K
RV5 1-241-092-11 s RES, ADJ METAL, CHIP 47K
RV6 1-241-092-11 s RES, ADJ METAL, CHIP 47K
RV401 =: 1-238-090-11 s RES, ADJ, 10K
RY1 1-515-614-11 s RELAY
RY2 1-515-757-11 s RELAY
X201 1-577-101-11 s VIBRATOR, CERAMIC 4.1900MHz
X501 1-760-337-21 s VIBRATOR, CRYSTAL
X601 1-767-425-21 s CRYSTAL 23.0400MHz
Ref. No.
or Q'ty Part No. SP Description
Ipc A-8318-923-A 0 MOUNTED CIRCUIT BOARD, PTC-98
lpc 3-613-826-01 o HOLDER, LED
CN301 1-568-238-11 s CONNECTOR, FPC (ZIF) 16P
CN302 1-784-978-11 0 CONNECTOR, FLEXIBLE 10P
CN303 1-774-730-21 s CONNECTOR 3P, MALE
D301 8-719-045-59 s DIODE TLN225
PH301 8-749-014-55 s IC RPI-5200
UP-980(UC)
UP-980CE(CE)
