18
Attachment and Installation Procedures
Attachment and
Installation
Procedures
This section describes the procedures for
attaching the supplied accessories to the
body-pack transmitter (UTX-B1) and the
installation of the diversity tuner module
(URX-M1) into the MB-X6 Tuner Base
Unit or SRP-X500P Powered Mixer.
Attaching the supplied
accessories to the body-
pack transmitter (UTX-B1)

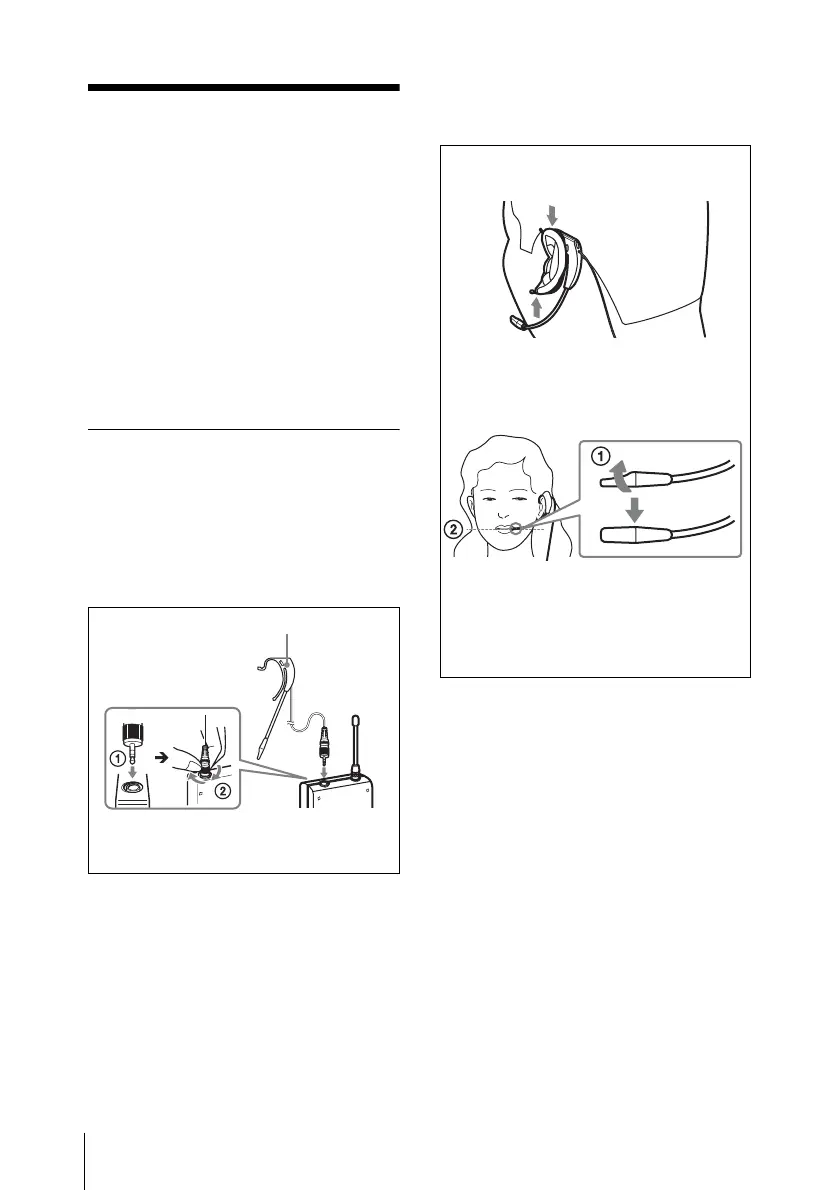

To attach the head-set type
microphone
To wear the head-set type
microphone
Head-set type microphone
(supplied)
Insert the plug (1), then turn and
lock the connector cover (2).
Hook the upper part of the ear clip on an
ear, then press the ear clip gently onto the
ear to settle it in place.
The head-set type microphone
can be worn on either ear.
To obtain proper sound quality, twist the
boom so that the threads on the capsule
case face toward the mouth (1), then
pull the capsule case on the extensive
line from the mouth (2).
