Operation
Setting the RF output
power level (UTX-B1 only)
You can select the RF output power level
from “H” (30 mW) or “L” (5 mW) in setting
mode
Set the RF output level to L (5
mW) for simultaneous operation of
multiple channels, and set it to H (30
mW) for long-distance operation.
1 Turn on the transmitter while pressing
down the SET button.
2 Press the SET button repeatedly until

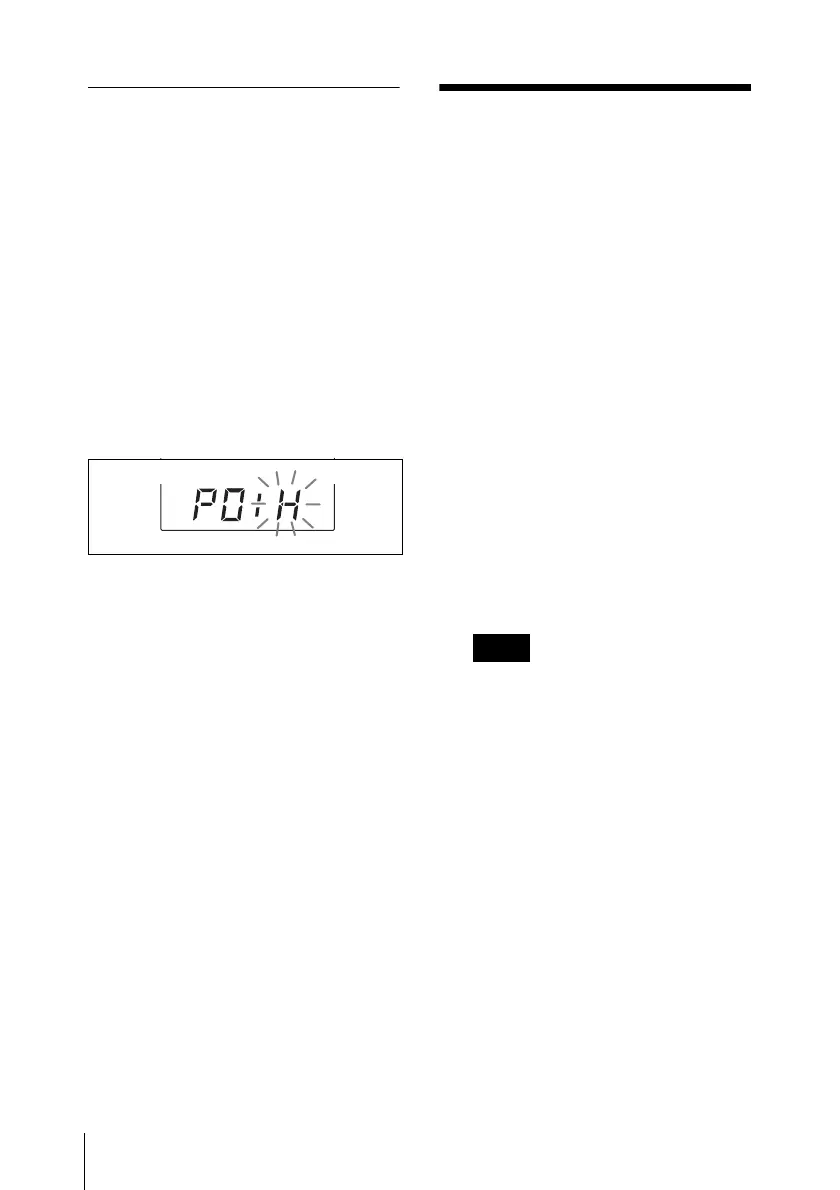

the RF output level indication appears
in the display section.
3 Press the + button to select “H” (30
mW), or press the – button to select
“L” (5 mW).
4 Set the POWER switch to OFF to
complete the setting, or press the SET
button to set other items.
The results are stored in memory.
The change becomes effective the next
time you turn on the transmitter by
setting the POWER switch to ON.
Operation
The procedure below is the same for the
UTX-B1 and URX-M1.
1 Make all necessary connections on the
tuner.
For examples of UWP-X5 component
connections, see “System Configuration” on
page 28.
2 Set the transmission channel on the
transmitter, and then turn off the unit.
For details on setting the transmission
channel, see “Setting the transmission channel
(UTX-B1 only)” on page 22.
3 Turn on the tuner.
The parameters that were in the display
section when the tuner was last turned
off appear again.
Before turning on the tuner, turn down
the volume of the equipment
connected to the tuner.
Otherwise, noise will be produced
when the tuner is turned on.
4 Set the reception channel on the tuner.
For details on setting the reception channel,
see “Setting the reception channel (URX-M1
only)” on page 23.
5 Turn on the transmitter.
If noise is heard
Depending on the environment where the
UWP-X5 components are installed,
external noise or radio waves may disrupt
transmission on certain channels.
Note
