Optional accessories
Projector Lamp
LMP-M130
(for replacement)
Signal Cable SMF-402 (HD D-sub 15-pin
(male) y 3 × phono type
(male))
SMF-421 (DVI-D y DVI-D)
Monitor Cable
SMF-410 (HD D-sub 15 pin
(male) y HD D-sub 15 pin
(male))
Screens 50-inch Portable Screen
VPS-50C
1)
100-inch Flat Screen
VPS-100FH
Some of the items may not be available in some
areas. For details, please consult your nearest
Sony office.
1) VPS-50C may not be available in some areas.
For details, please consult your nearest Sony
office.

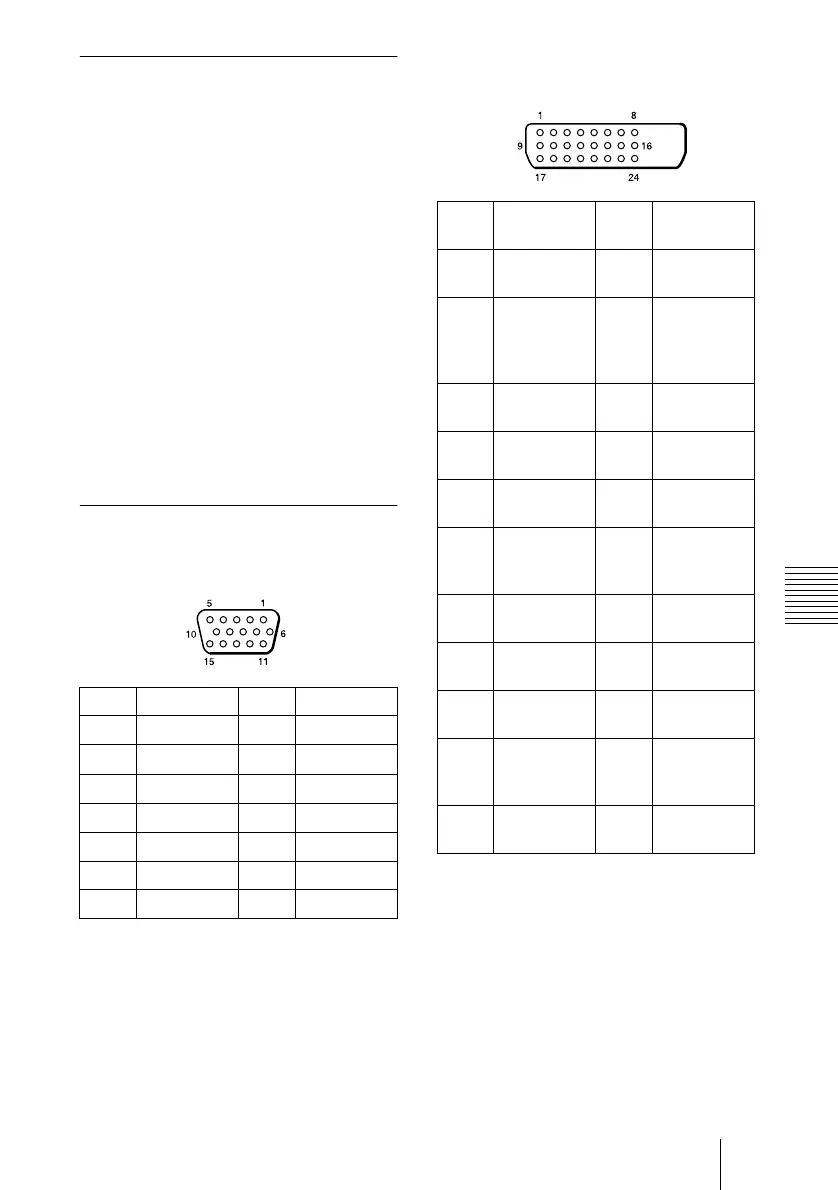

Pin assignment
INPUT A connector (HD D-sub 15-pin,
female)
INPUT B connector
DVI connector (DVI-D, female)
1R/R-Y 9N.C.
2 G/Y 10 GND
3 B/B-Y 11 GND
4 GND 12 DDC/SDA
5 GND 13 HD/C.Sync
6GND (R)14VD
7 GND (G) 15 DDC/SCL
8GND (B)
1 T.M.D.S.
Data2
–
13 T.M.D.S.
Data3
+
2 T.M.D.S.
Data2
+
14
+5 V Power
3 T.M.D.S.
Data2/4
Shield
15 Ground
(return for
+5 V, HSync,
and VSync)
4 T.M.D.S.
Data4
–
16 Hot Plug
Detect
5 T.M.D.S.
Data4
+
17 T.M.D.S.
Data0
–
6 DDC Clock 18 T.M.D.S.
Data0
+
7 DDC Data 19 T.M.D.S.
Data0/5
Shield
8 Analog
Vertical Sync
20 T.M.D.S.
Data5
–
9 T.M.D.S.
Data1
–
21 T.M.D.S.
Data5
+
10 T.M.D.S.
Data1
+
22 T.M.D.S.
Clock Shield
11 T.M.D.S.
Data1/3
Shield
23 T.M.D.S.
Clock
+
12 T.M.D.S.
Data3
–
24 T.M.D.S.
Clock
–
