When you use a PS/2 mouse port
To connect a Macintosh computer
Use an ADP-20 signal adapter (not supplied). In this case, however, you can
not control the mouse of the computer by the Remote Commander.
This section describes how to connect the projector to a VCR and 15k RGB/
component equipment.
For more information, refer to the instruction manuals of the equipment you
are connecting.
To connect a VCR
Connecting with a VCR or 15k RGB/Component Equipment

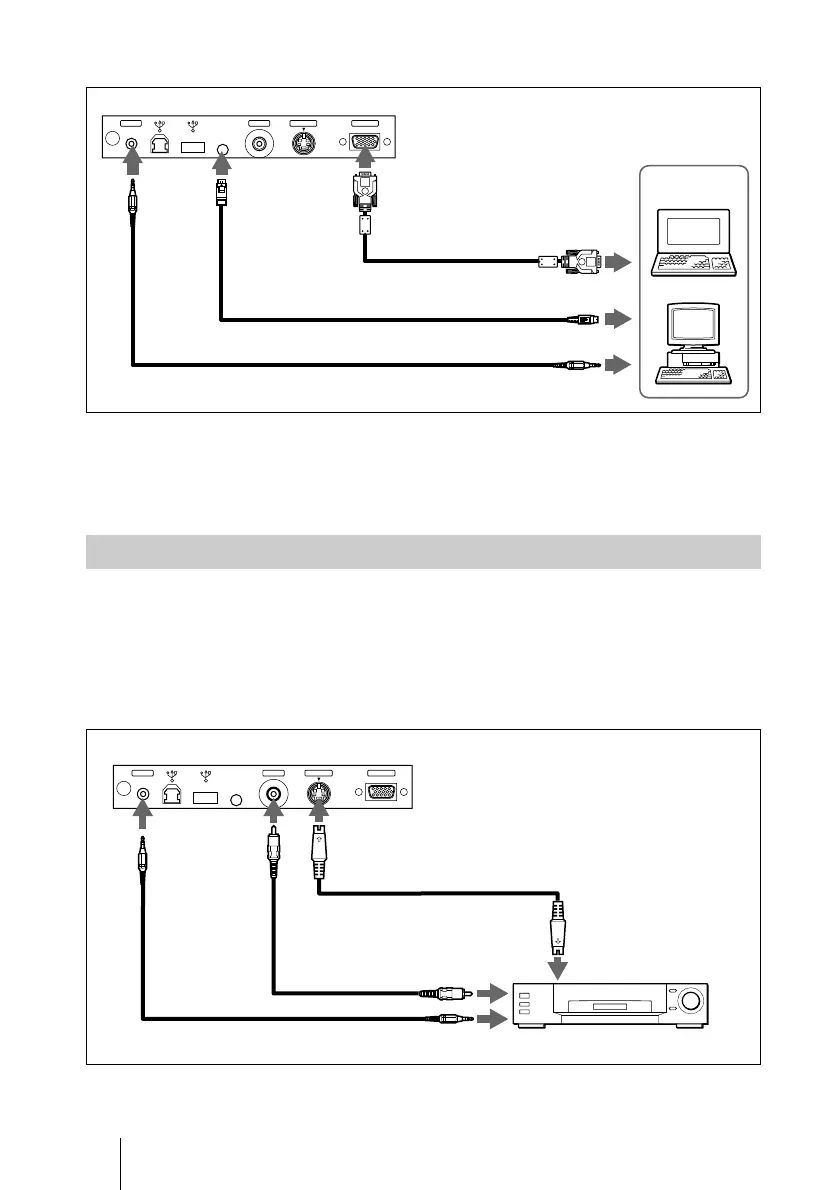

INPUT AS VIDEOVIDEOMOUSEAUDIO
to audio output
Rear side
HD D-sub
15-pin cable
(supplied)
to mouse port (PS/2)
PS/2 Mouse cable (supplied)
Stereo audio connecting cable (not supplied)
to monitor output
Computer
INPUT AS VIDEOVIDEOMOUSEAUDIO
Video cable
(not supplied)
Stereo audio
connecting
cable (not
supplied)
S-Video cable (not supplied)
VCR
to video output
to S video output
Rear side
to audio output
