Optional accessories
Projector Lamp LMP-C120 (for replacement)
Signal Cable SMF-402 (HD D-sub 15-pin
(male) y 3
K
phono type
(male))
Monitor Cable SMF-410 (HD D-sub 15 pin
(male) y HD D-sub 15 pin
(male))
Signal Adapter
ADP-20 (Macintosh y HD D-
sub 15-pin)
Screens 50-inch Portable Screen
VPS-50C
1)
100-inch Flat Screen
VPS-100FH
Some of the items may not be available in some
areas. For details, please consult your nearest
Sony office.
1) VPS-50C may not be available in some areas.
For details, please consult your nearest Sony
office.

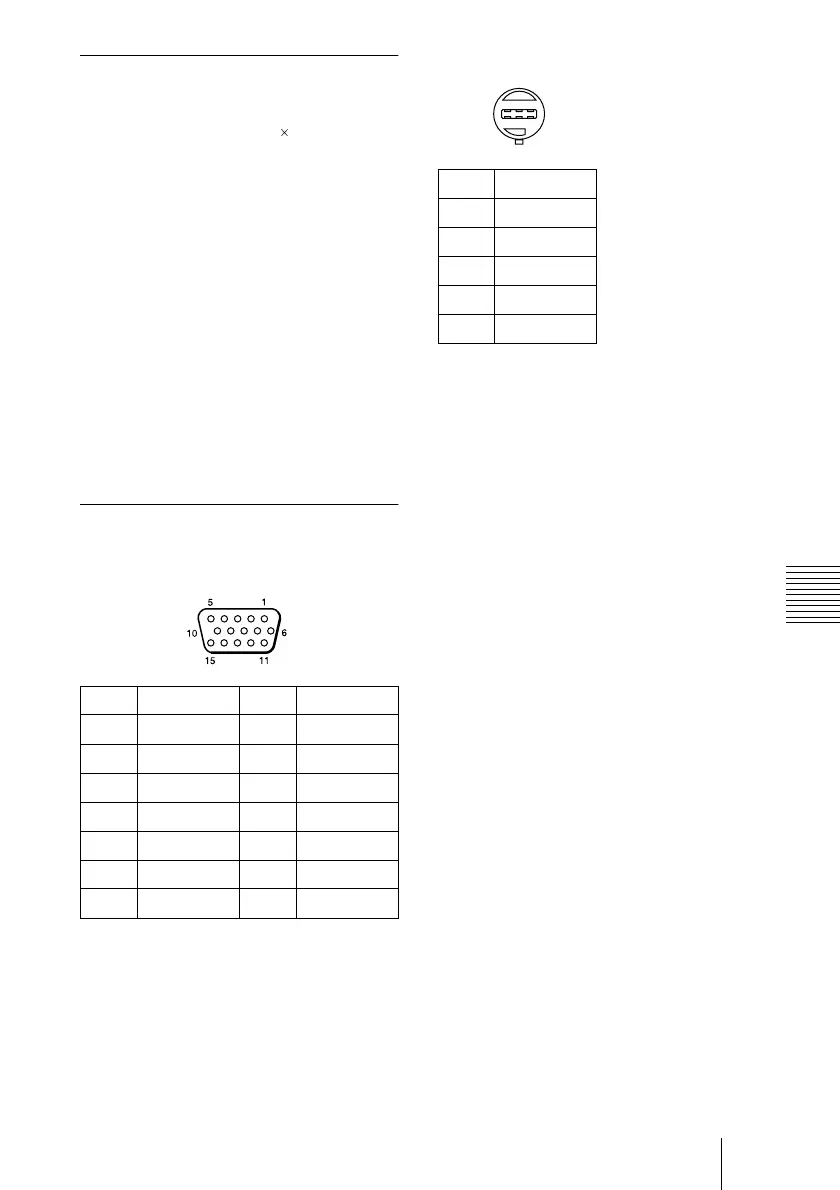

Pin assignment
INPUT A connector (HD D-sub 15-pin,
female)
MOUSE connector (6-pin, female)
1R/R-Y 9N.C.
2 G/Y 10 GND
3 B/B-Y 11 GND
4GND 12N.C.
5 GND 13 HD/C.Sync
6GND (R)14VD
7GND (G)15N.C.
8GND (B)
1DATA
2N.C.
3 GND
4+5V
5CLK
6N.C.
123
456
