Specifications
Others
Optional accessories
USB wireless LAN module
IFU-WLM2
Projector Lamp
LMP-C190 (for replacement)
Signal Cable SMF-402 (HD D-sub 15-pin
(male) y 3 × phono type
(male))
Some of the items may not be available in
some areas. For details, please consult your
nearest Sony dealer.

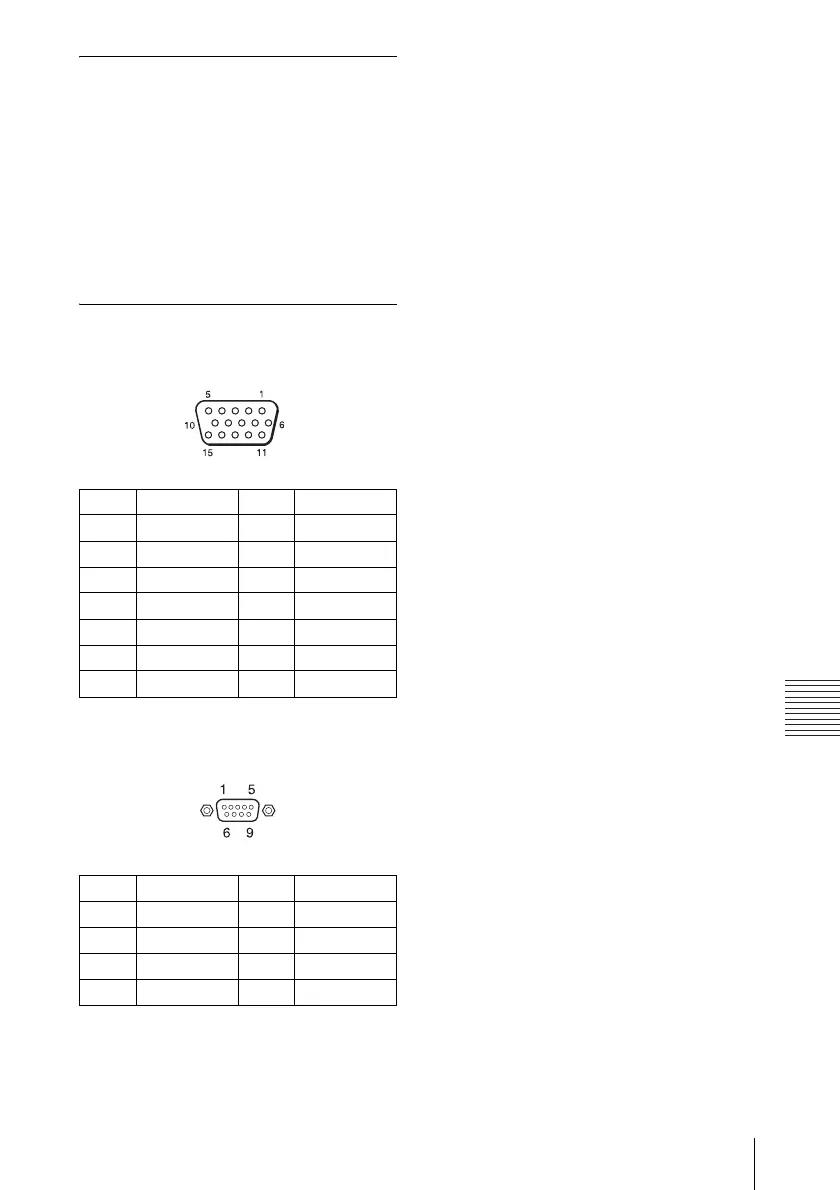

Pin assignment
INPUT A connector (HD D-sub 15-pin,
female)
RS-232C connector (D-sub 9 pin,
female)
1R/R-Y 9N.C.
2 G/Y 10 GND
3 B/B-Y 11 GND
4 GND 12 DDC/SDA
5 GND 13 HD/C.Sync
6 GND (R) 14 VD
7 GND (G) 15 DDC/SCL
8 GND (B)
1DCD 6DSR
2RXDA 7RTS
3TXDA 8CTS
4DTR 9RI
5 GND
