1-6
VPL-CS7/ES2

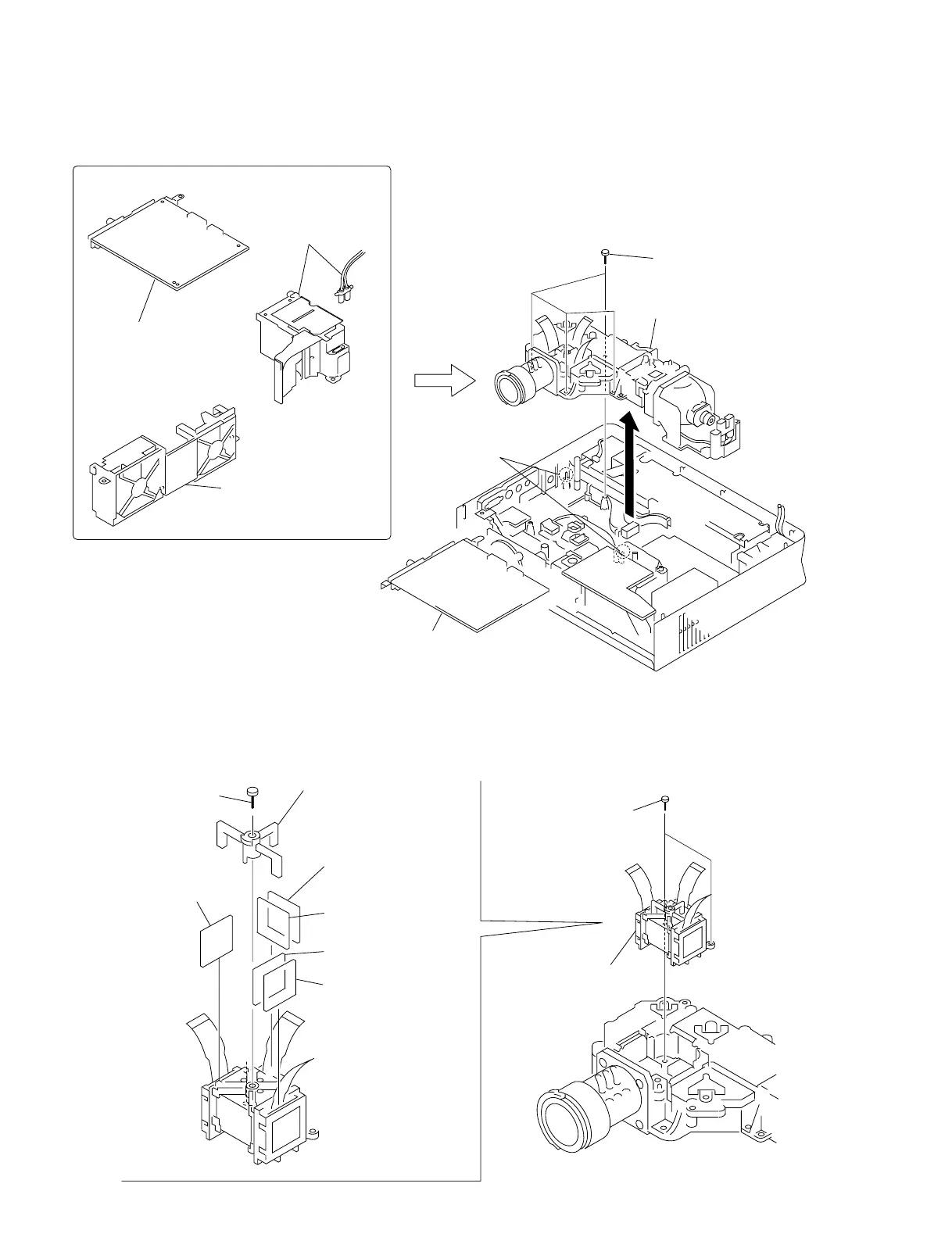

1-3-8. Optics Block Assembly
. To remove the optics block assembly, remove the related parts beforehand.
4 Four screws
(+BTP3 x 10)
5 Two dowels
6 Optics block assembly
C board
1 C board
• Remove the C board.
(Refer to 1-3-3.)
3 Lamp house
• Remove the lamp house.
(Refer to 1-3-7.)
2 Fan holder
• Remove the fan holder.
(Refer to 1-3-5.)
1 Two precision screws
(+B2 x 5)
3 Screw
(+PTP2 x 8)
5 Radiation polarizer
(R) assembly
6 Pre radiation polarizer
(G) assembly
7 Radiation polarizer
(G) assembly
9 Radiation polarizer
(B) assembly
8 Pre radiation polarizer
(B) assembly
4 Polarizer retainer
2 Prism block assembly
1-3-9. Prism Block Assembly
. Remove the optics block assembly. (Refer to 1-3-8.)
