Sony VPL-ES2 - C Board

1-3
VPL-CS7/ES2

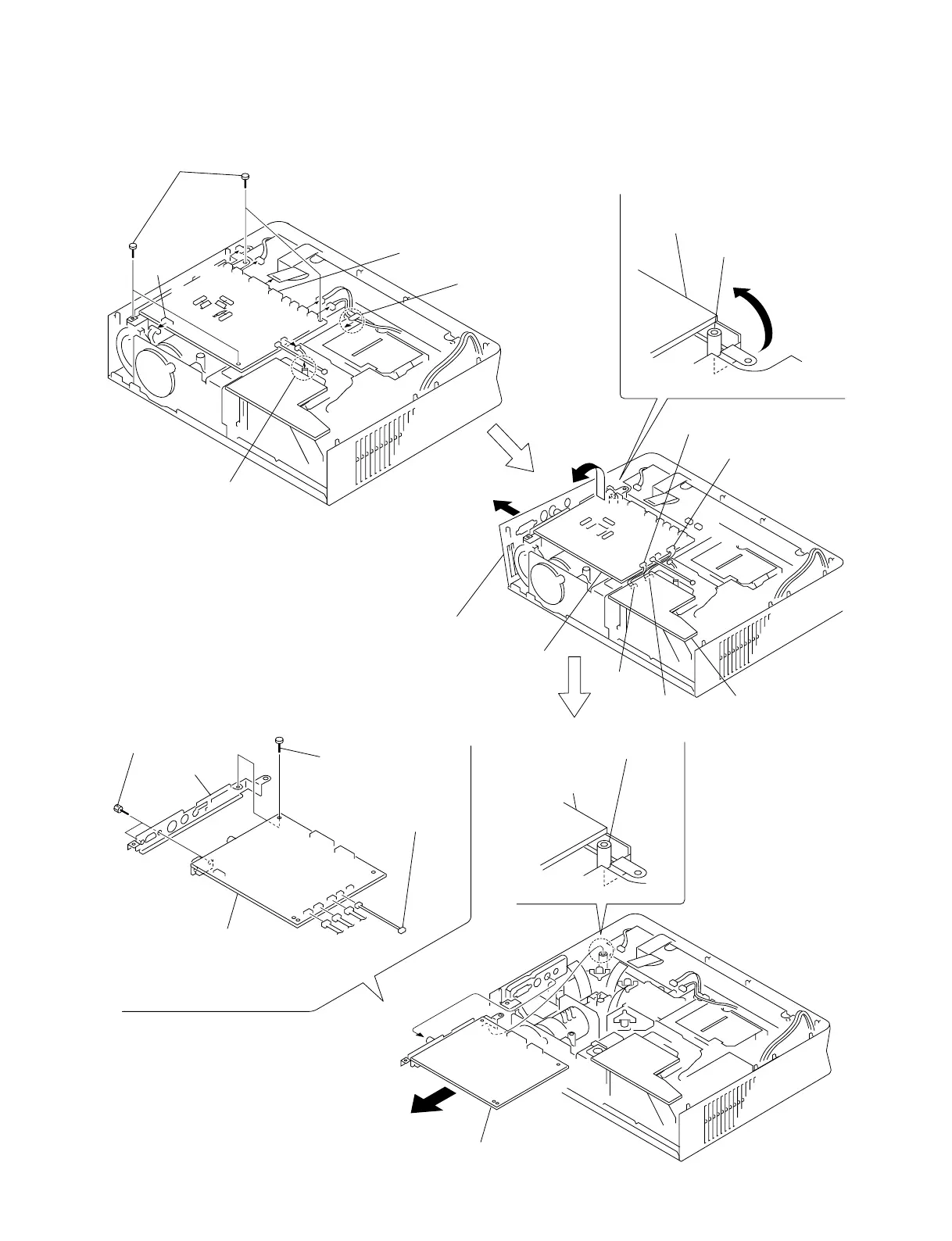

1-3-3. C Board
CN804
CN501
CN651
CN601
CN904
CN807
CN810
CN802
CN812
CN906
3 Four screws
(+PSW3 x 8)
8 Hexagon screws
9 Bracket (C)
1 Remove the harneses.
C board
CN903
CN701
CN815
SA board
CN702
A
B
B
CN809
CN815
CN811
CN806
C
7 Screw
(+PSW3 x 8)
0 Fuse connector
assembly
2 Remove the fuse
connector assembly.
!- C board
6 Remove the C board
in the direction of the arrow C.
4 Open the side panel assembly in the
direction of the arrow A.
5 Remove the C board
in the direction of the arrow B.
Side panel shaft
C board
Side panel shaft
C board
