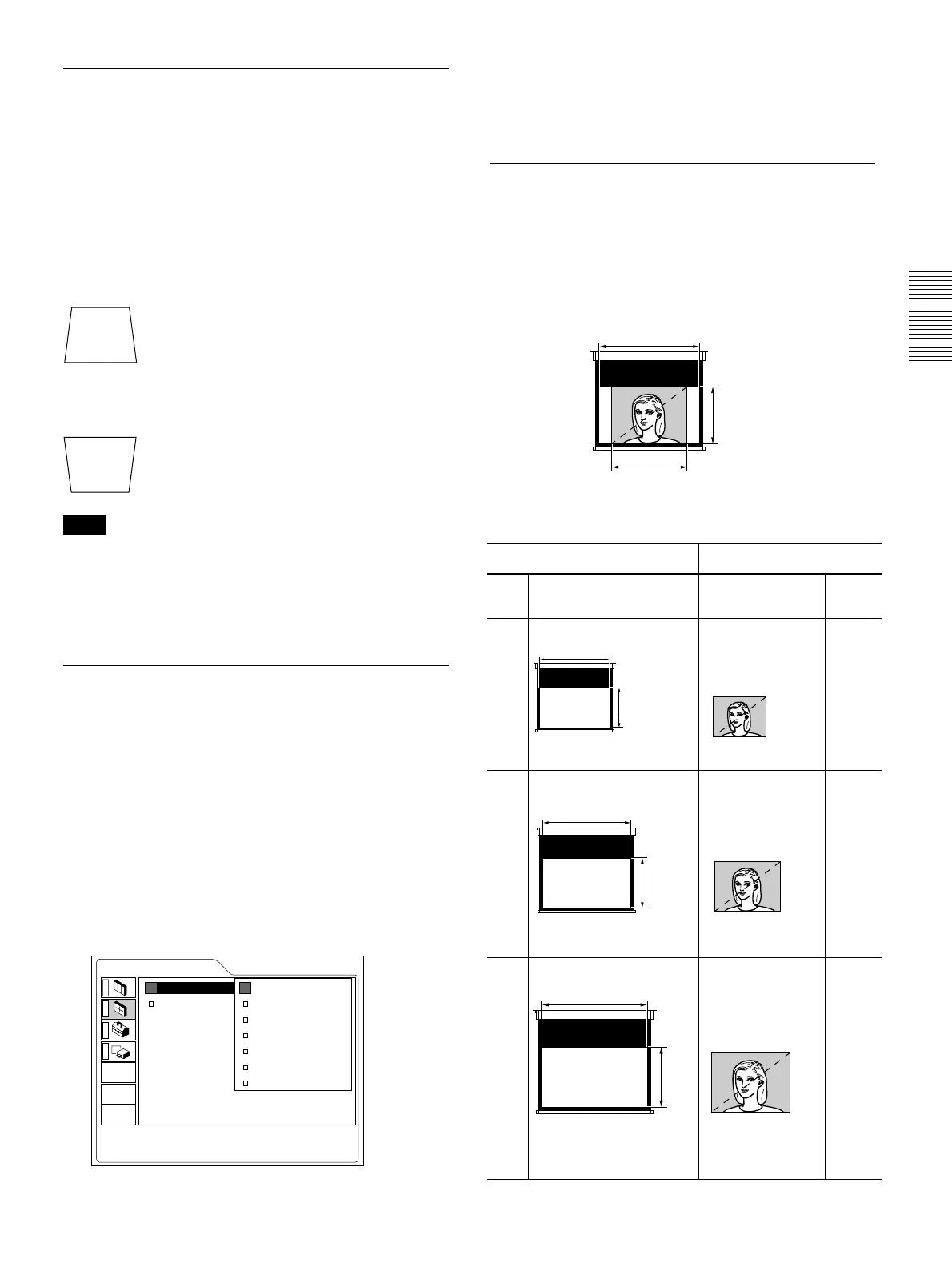

19 (GB)
Projecting
To correct the trapezoid
When the projecting image is a trapezoid, change the
projector’s position/height by moving the adjuster.
For details on “How to use the adjuster”, see page 10 (GB).
If the image is still a trapezoid, correct it in DIGIT
KEYSTONE in the INSTALL SETTING menu.
When the base edge is longer than the upper
edge as shown in the figure below:
When the upper edge is longer than the base
edge as shown in the figure below:
Note
If “ZOOM”, “FULL” or “NORMAL” have been
selected in the ASPECT of the INPUT SETTING
menu, you can change the trapezoid.
For details on “DIGIT KEYSTONE”, see page 28 (GB).
Changing the aspect
You can change the aspect according to the video
signal. For details on the menu screen operation, see
“Using the Menu” on page 21 (GB).
1 Press the MENU key to display the menu.
2 Press the M or m key to select INPUT SETTING
menu, then press the , or ENTER key.
3 Press the M or m key to select ASPECT, then
press the , or ENTER key.
Set the value to negative.
Set the value to positive.
4 Make setting or adjustment on an item.
For details on setting individual items, see page 24 (GB).
The picture size for the screen size
Refer to the following for selecting the aspect.
When the 4:3 picture is displayed on the 16:9
screen
Example: The 120 inch screen is used.
The 98 inch picture is displayed
1,992
2,656
1,494
16:9 screen 4:3 picture
Unit (mm) Unit (mm)
90 73
110 90
120 98
Size
(Inch)
2,656
1,494
1,494
1,992
2,435
1,370
1,370
1,826
1,121
1,992
1,121
1,494
Size
(Inch)
INPUT SETTING
VIDEO
ASPECT:
VIDEO MEMORY
:
VIDEO/60
FULL
FULL THROUGH
NORMAL
NORMAL THROUGH
ZOOM
SUBTITLE
WIDE ZOOM
