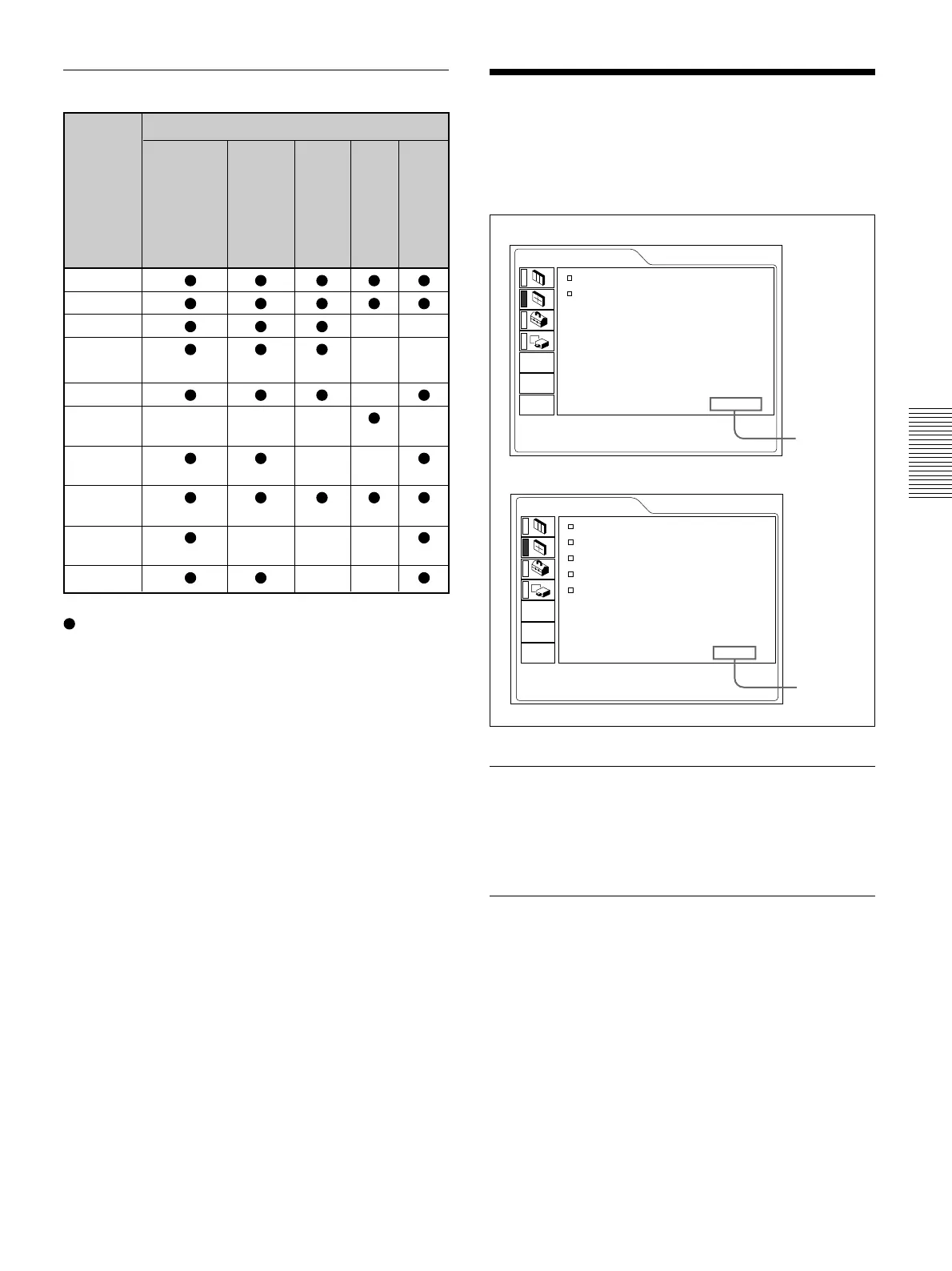

Input signals and adjustable/setting items
Input signal
Video or Compo- Pro- RGB
1)
B&W
S video (Y/C) nent/
gres-
15k RGB sive
Compo-
nent/
HDTV/
DTV
CONTRAST
BRIGHT
COLOR ––
HUE
––
SHARP –
RGB ––– –
ENHANCER
D. PICTURE
––
COLOR
TEMP
COLOR
–––
SYS
DRC-MF
––
: Adjustable/can be set
– : Not adjustable/can not be set
The INPUT SETTING Menu
The INPUT SETTING menu is used to adjust the
input signal.
Unadjustable items depending on the input signal are
not displayed in the menu.
DOT PHASE
Adjusts the phase of the LCD dots and the computer
signal input from the INPUT A/B connector.
Adjust the picture to where it looks clearest.
SIZE H
Adjusts the horizontal size of the picture input from
the INPUT A/B connector.
The higher the setting, the larger the horizontal size of
the picture. The lower the setting, the smaller the
horizontal size of the picture. Adjust the setting
according to the dots of the input signal. For details on
the suitable value for the preset signals, see page 26
(GB).
When the video signal is input
When the RGB signal is input
Signal type
Signal type
INPUT SETTING
ASPECT: FULL
VIDEO MEMORY : OFF
VIDEO/60
VIDEO
INPUT SETTING
DOT PHASE: 50
SIZE H: 50
SHIFT H: 123 V: 123
SCAN CONV: ON
VIDEO MEMORY : OFF
800x600
INPUT-A
The PICTURE CTRL Menu / The INPUT SETTING Menu
.........................................................................................................................................................................................................
1) The RGB signals of a computer
Item
