WH-1000XM4
26
Sony CONFIDENTIAL
For Authorized Servicer

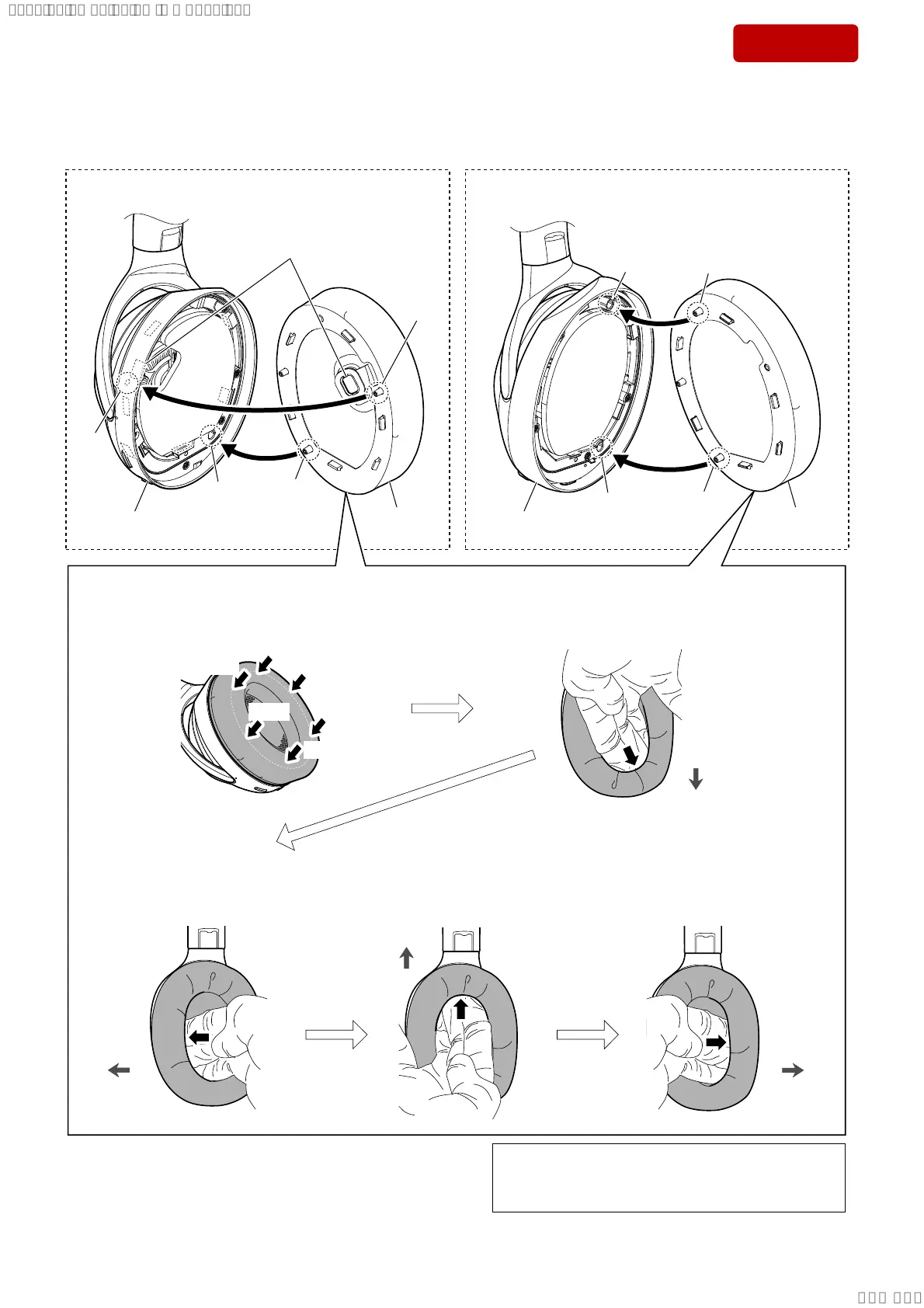

2-3. HOW TO INSTALL THE EARPAD ASSY
hole
hole
rib
rib
hole
hole
rib
rib
housing block
(L-ch)
housing block
(R-ch)
earpad assy earpad assy
1 Align the two ribs and two holes. 1 Align the two ribs and two holes.
Note 1:
When installing the earpad assy,
make the position of wearing
detection window.
(L-ch)(R-ch)
Attach in order from 1 to 6.
Press.
Press.
Press.
Press.
Press.
Press.
2 Press the earpad assy to the housing block until
sound that claws of the earpad firmly catch in
the hooks of the housing block from the six claws
position is heard.
3 Insert three fingers into the inner side of
the earpad assy (lower side), and lift the
earpad assy to the outer side to remove
wrinkles.
top side
lower side
left side
right side
4 Insert three fingers into the inner side
of the earpad assy (left side), and lift
the earpad assy to the outer side to
remove wrinkles.
5 Insert three fingers into the inner side
of the earpad assy (top side), and lift
the earpad assy to the outer side to
remove wrinkles.
6 Insert three fingers into the inner side
of the earpad assy (right side), and lift
the earpad assy to the outer side to
remove wrinkles.
Note 2:
Before performing steps
3
to
6
, make sure that the claws
of the earpad are firmly locked to the housing block.
Note 3:
In steps
3
to
6
, wrinkles on the earpad resulting from
customer use cannot be removed.
Ver. 1.1
SYSSET
2020/09/0901:17:45(GMT+09:00)
