WH-1000XM4
32
Sony CONFIDENTIAL
For Authorized Servicer

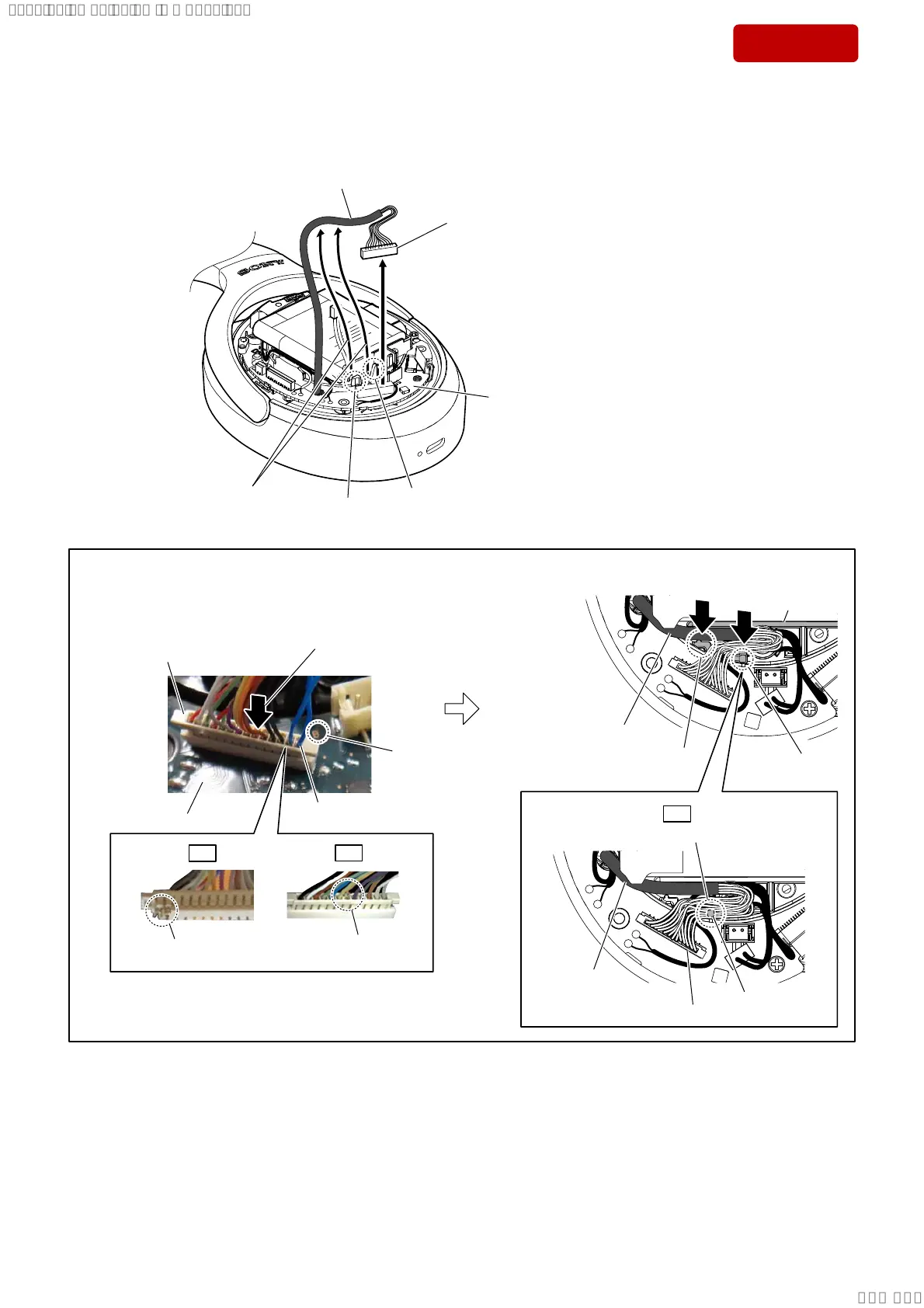

2-9. SUB R BOARD-1 (R-ch)
• Continued on 2-10 (page 33).
– R-ch –
2 Draw the relay cable connector out
of the connector in SUB R board.
(See Fig. B)
Note:
Pull out the connector vertically so that the connector
does not get damaged or get detached from the relay
cable with connector. Also, do not hold and pull by the
cable because the cable may detach from the connector.
relay cable
:LUHVHWWLQJ
SUB R board
)LJ%!
)LJ&!
[blue]
Attach in order from 1 to 3.
“B” mark
2 Press in the connector
vertically.
1 Insert the connector gently.
(The [blue] wire is “B” mark side)
SUB R board
rib
rib
relay cable
Cable is
detached.
Connector
cracked.
NG
NG
3 Press the relay cable into the gap
between the wall and two ribs.
relay cable
NG
rib
Arrange the relay cable wires on the rib top.
relay cable connector
rib
rib
1 Remove the relay cable
from the two ribs.
(See Fig. C)
wall
SYSSET
2020/09/0901:17:45(GMT+09:00)
