Sony WH1000XM4/SMIN Service Manual

WH-1000XM4
33
Sony CONFIDENTIAL
For Authorized Servicer

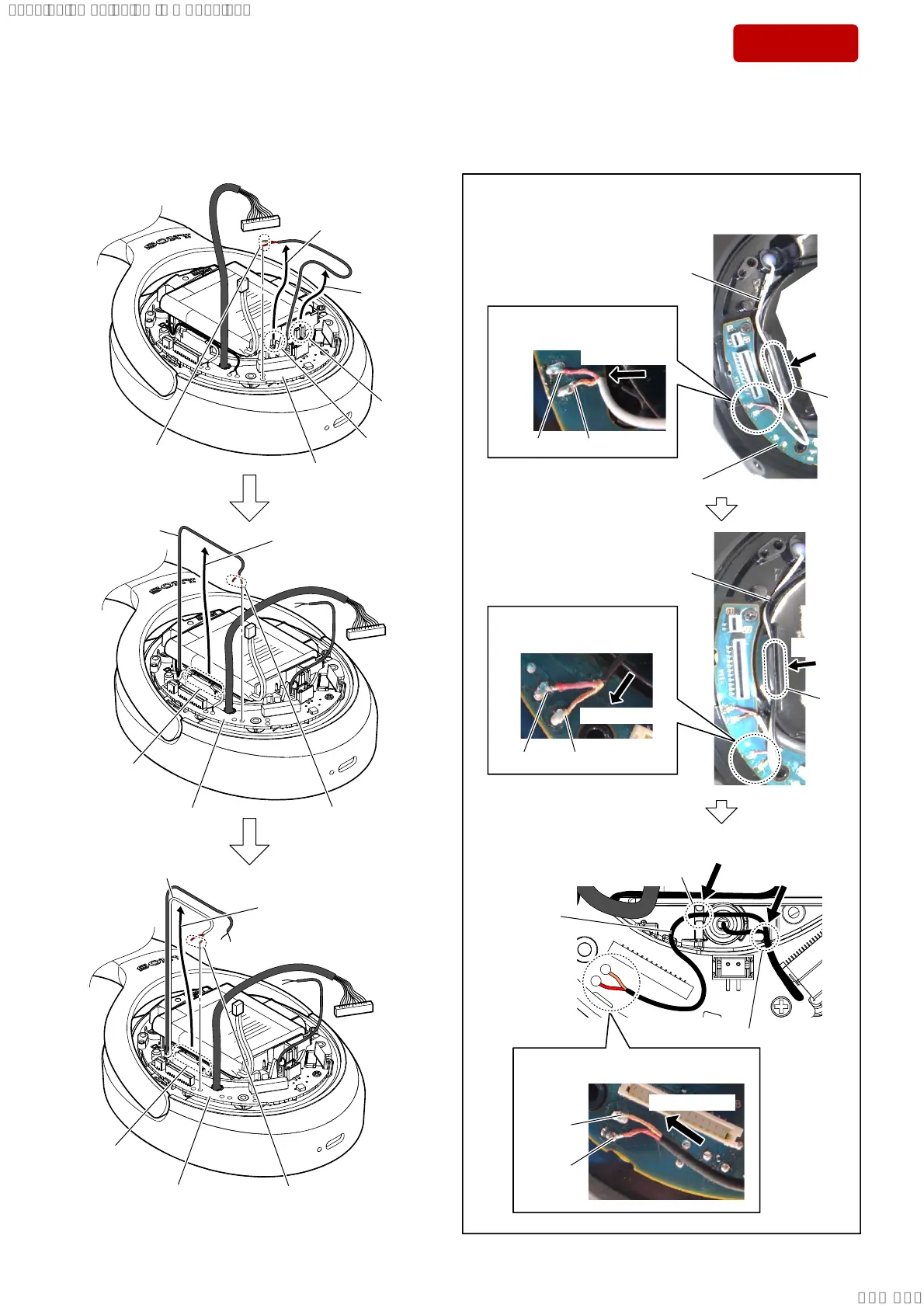

2-10. SUB R BOARD-2 (R-ch)
• Continued on 2-11 (page 34).
6 Remove two solders of the FB MIC
wire [white] from he SUB R board.
(See Fig. D)
• Wire setting
FB MIC wire [white]
– R-ch –
2 Remove two solders
of the MDD R wire
from the SUB R board.
(See Fig. F)
groove
groove
4 Remove two solders of
the FF MIC wire [black]
from the SUB R board.
(See Fig. E)
FF MIC wire
[black]
slit
slit
SUB R board
2 Press.
slit
FB MIC wire [white]
< Fig. D >
FF MIC wire [black]
< Fig. E >
< Fig. F >
Attach in order from 1 to 6.
4 Press.
slit
wire direction
[red] [natural]
1 Soldering the FB MIC wire
[white].
wire direction
[red] [natural]
3 Soldering the FF MIC wire
[black].
5 Soldering the MDD R wire.
wire direction
[red]
[natural]
groove
groove
MDD R wire
6 Press.
6 Press.
1 Remove the
MDD R wire
from the
groove.
(See Fig. F)
1 Remove the MDD R wire
from the groove.
(See Fig. F)
3 Remove the FF MIC wire
[black] from the slit.
(See Fig. E)
5 Remove the FB MIC wire
[white] from the slit.
(See Fig. D)
SUB R board
SUB R board
SUB R board
SYSSET
2020/09/0901:17:45(GMT+09:00)
