Sony WH1000XM4/SMIN Service Manual

WH-1000XM4
29
Sony CONFIDENTIAL
For Authorized Servicer

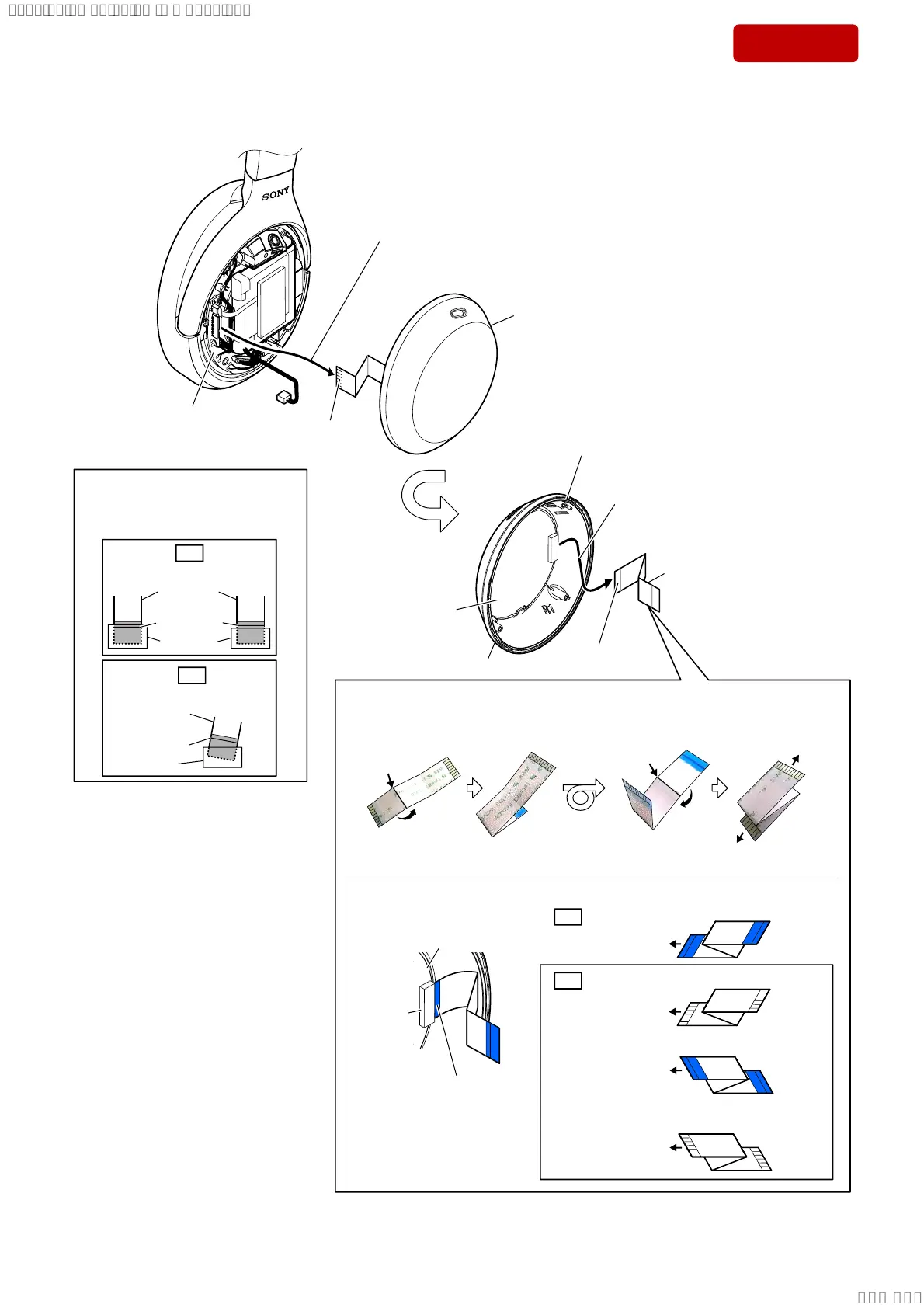

2-6. ORNAMENT R ASSY (R-ch)
black line
colored line
Insert at a slant.
flexible flat
cable
connector
NG
OK
NG
 How to install the flexible flat cable
When installing the flexible flat cable,
ensure that the colored line is parallel
to the connector after insertion.
2 ornament (R) block
Folding the flexible flat cable (22 core)
Before installing the flexible flat cable (22 core) to the board,
fold it with the following procedure.
Turn over.
black line
to TPAD R board
to SUB R board
– R-ch –
terminal side
5 ornament R assy
The opposite side
is terminal side.
Installation direction for the flexible flat cable (22 core)
TPAD R board
1 Draw the flexible flat cable (22 core)
out of the connector in SUB R board
in the direction of the arrow.
TPAD R board
3 Draw the flexible flat cable (22 core)
out of the connector in TPAD R board
in the direction of the arrow.
Turn around.
SUB R board
4 flexible flat cable
(22 core)
to TPAD R board
to TPAD R board
to TPAD R board
to TPAD R board
The opposite side
is terminal side.
Fold.
Fold.
connector
Note:
Do not touch sealing UV bond.
Insert straight into the interior.
OK
colored line
flexible flat
cable
connector
Terminal surface is visible.
Fold direction is reversed.
Terminal surface is visible and
fold direction is reversed.
