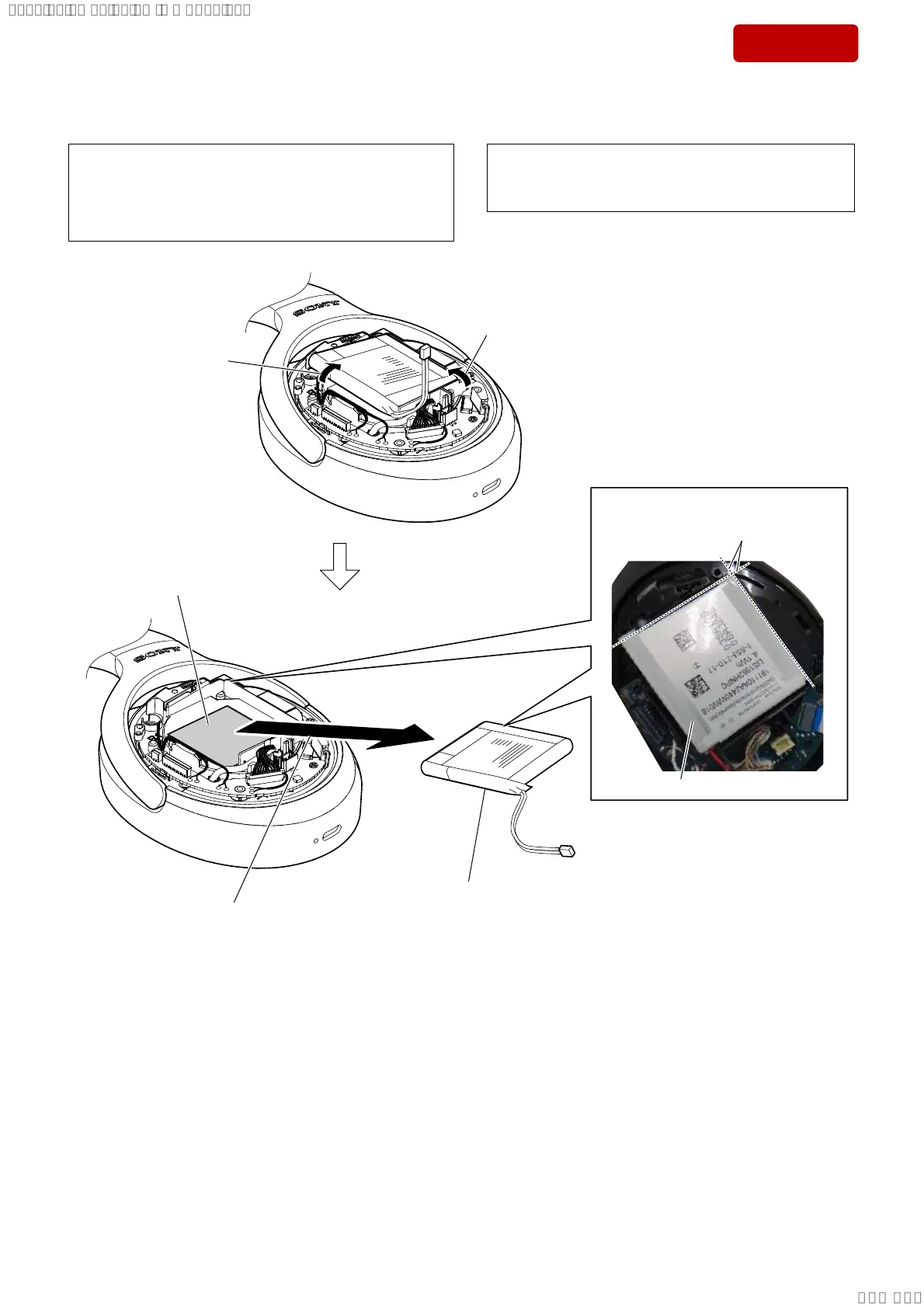

2-8. LITHIUM ION STORAGE BATTERY (R-ch)
battery adhesive
4
lithium ion storage battery
(See Note 1, 2)
– R-ch –
Note 1:
When removing the lithium ion storage battery, the lithium ion
storage battery cannot be reused.
Be sure to replace it with a new part.
Also, when replacing the lithium ion storage battery, refer to
“CHECKING THE NEW LITHIUM ION STORAGE BATTERY
FOR BEFORE USE AND NOTES ON HANDLING” on page 4.
Note 2:
There are two types of the lithium ion storage battery, but the
repair parts of the lithium ion storage battery is one type.
For details, refer to “ABOUT THE TYPE OF THE LITHIUM
ION STORAGE BATTERY” on page 4.
2
Lift up the lithium ion
storage battery in the
direction of the arrow.
1
Lift up the lithium ion
storage battery in the
direction of the arrow.
3 Peel the
lithium ion storage battery
off of the battery adhesive.
guide line
• Installation position of the lithium
ion storage battery
lithium ion storage battery
SYSSET
2020/09/0901:17:45(GMT+09:00)
