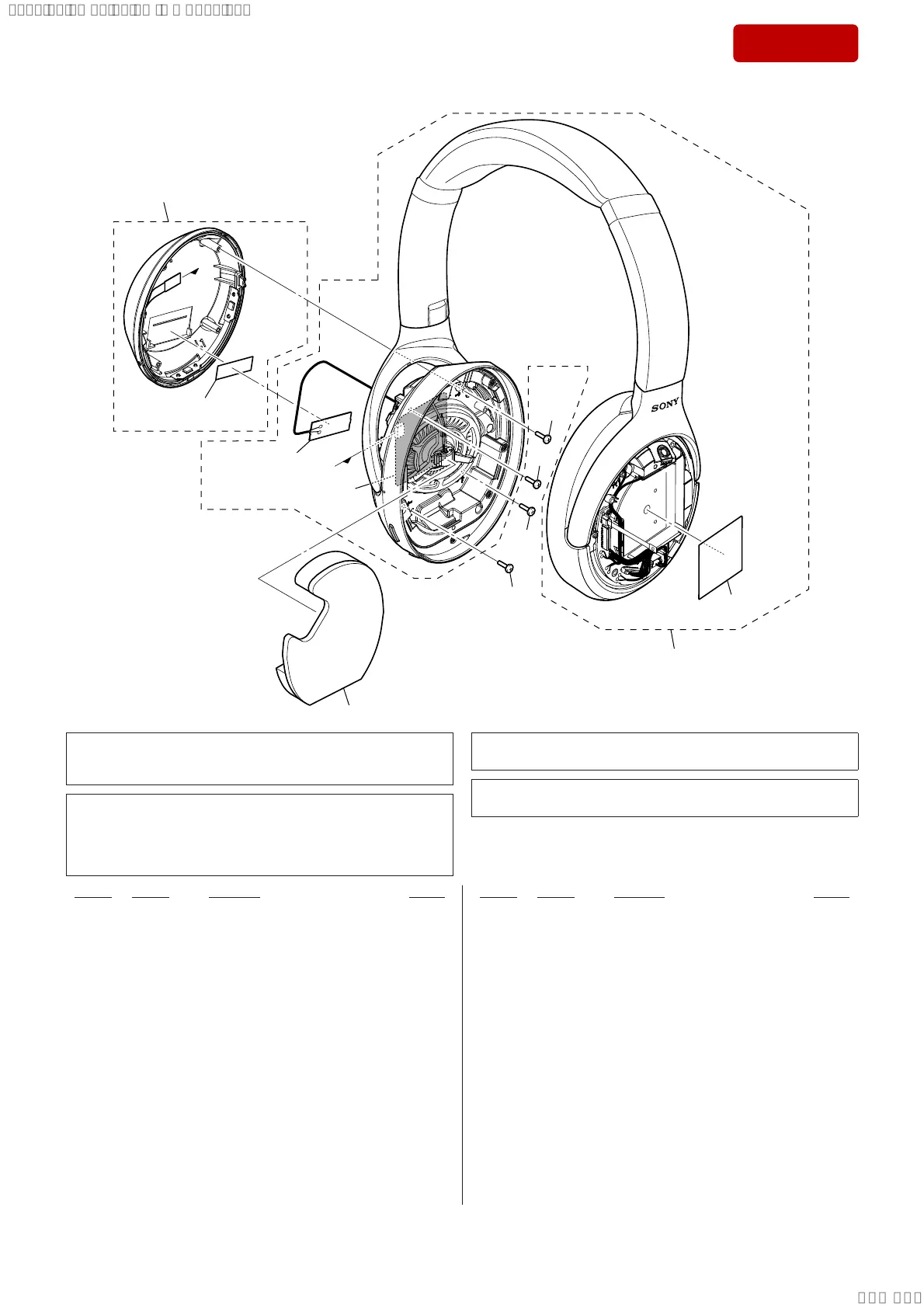

3-3. LEFT ORNAMENT SECTION
– L-ch –
– R-ch –
HPN1
(Refer to pages 48 to 50)
(See Note 2, 3)
B
B
101
DMIC1
(See Note 1)
MAIN L board
102
102
104
102
102
103
(See Note 4)
NFC L board
(See Note 4)
Note 1: When removing the SV ornament L assy (Ref. No. DMIC1) and
installing it, be sure to refer to “CHECKING METHOD AFTER
INSTALLING THE ORNAMENT L ASSY” on page 23.
Note 3: When the SV headphones assy (Ref. No. HPN1) is replaced with
a new part, the serial number is changed.
Note 4: When the NFC L board is removed from the ornament L assy, be
sure to replace the adhesive NFC (Ref. No. 103) with a new part.Note 2: The component parts of the SV headphones assy (Ref. No. HPN1)
is a block without the parts deployed in pages 45 to 47, such as the
Earpad assy, Screen, Ornament assy, and Battery.
For details about the component parts, refer to “COMPONENT
PARTS OF SV HEADPHONES ASSY” on page 22.
101 501364801 SCREEN (L) (for L-ch)
102 500837311 SCREW, TAPPING, P2 (L = 8.0 mm) (Silver)
103 502155801 ADHESIVE NFC (See Note 4)
104 X50019251 ADHESIVE BATTERY, SV
DMIC1 A5018222A ORNAMENT L ASSY, SV (for L-ch)
(Including DMIC module, Adhesive BF MIC,
Adhesive NFC) (for Black) (See Note 1)
DMIC1 A5018223A ORNAMENT L ASSY, SV (for L-ch)
(Including DMIC module, Adhesive BF MIC,
Adhesive NFC) (for Platinum Silver) (See Note 1)
DMIC1 A5024276A ORNAMENT L ASSY, SV (for L-ch)
(Including DMIC module, Adhesive BF MIC,
Adhesive NFC) (for Blue) (See Note 1)
HPN1 A5018288A HEADPHONES ASSY B, SV (for Black)
(US, CND, LA) (See Note 2, 3)
HPN1 A5018289B HEADPHONES ASSY S, SV (for Platinum Silver)
(US, CND, LA) (See Note 2, 3)
HPN1 A5018292A HEADPHONES ASSY B, SV (for Black)
(CH) (See Note 2, 3)
HPN1 A5018293B HEADPHONES ASSY S, SV (for Platinum Silver)
(CH) (See Note 2, 3)
HPN1 A5018294A HEADPHONES ASSY B, SV (for Black) (AEP, UK)
(See Note 2, 3)
HPN1 A5018295B HEADPHONES ASSY S, SV (for Platinum Silver)
(AEP, UK) (See Note 2, 3)
HPN1 A5018296A HEADPHONES ASSY B, SV (for Black)
(E, AUS, JE, RU) (See Note 2, 3)
HPN1 A5018297B HEADPHONES ASSY S, SV (for Platinum Silver)
(E, AUS, JE, RU) (See Note 2, 3)
HPN1 A5018298A HEADPHONES ASSY B, SV (for Black)
(IND) (See Note 2, 3)
HPN1 A5018299B HEADPHONES ASSY S, SV (for Platinum Silver)
(IND) (See Note 2, 3)
HPN1 A5024270B HEADPHONES ASSY L, SV (for Blue)
(US, CND, LA) (See Note 2, 3)
