— 10 —

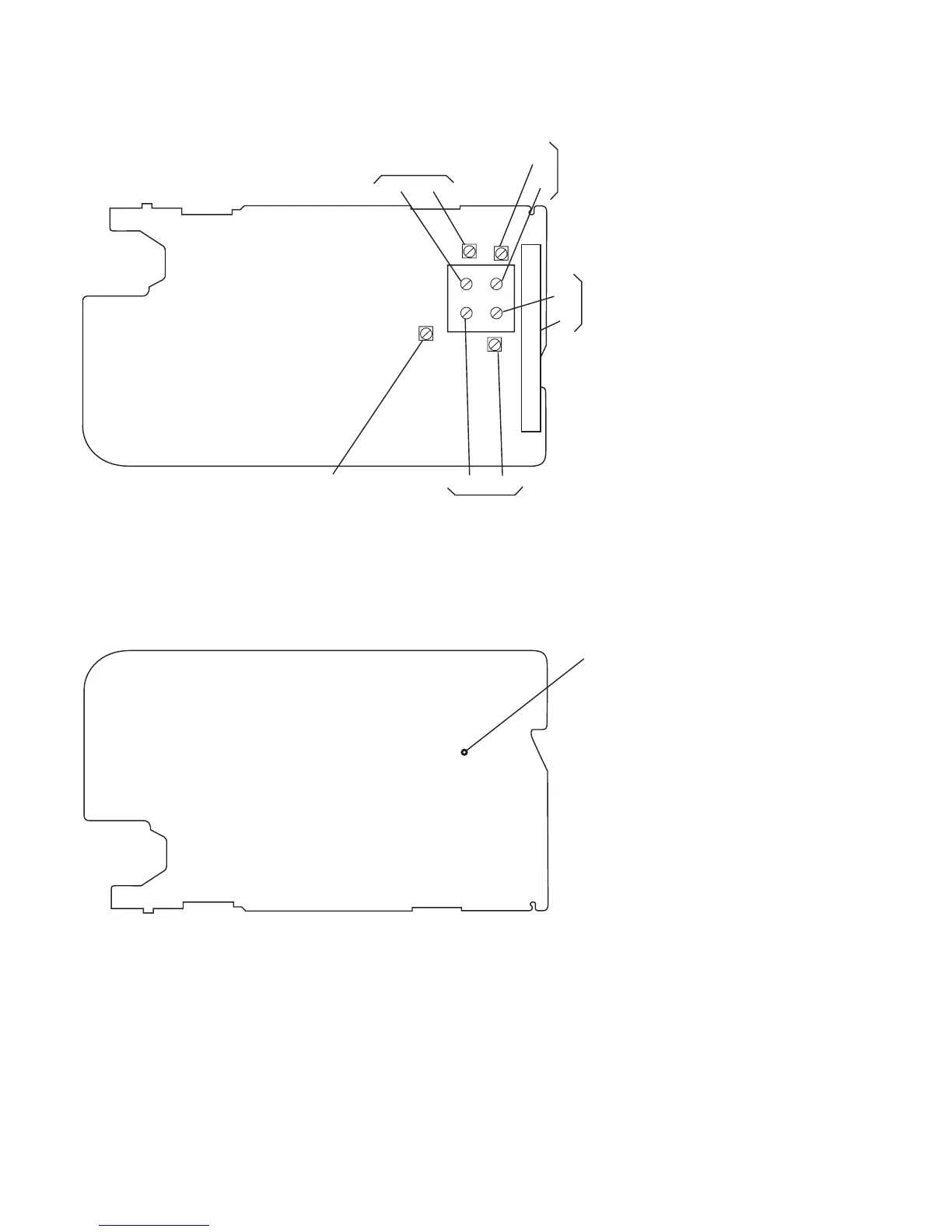

[MAIN BOARD]
— Component side —
— Conductor side —
CV1
CT1
L1
AM Trackin
g
Adjustment
AM IF
Adjustment
L2
L3
L4
CT2
CT3
CT4
T1
FM Tracking
Adjustment
FM Frequency
Coverage Adjustment
AM Frequency
Coverage Adjustment
TP18
FM I
