— 21 —

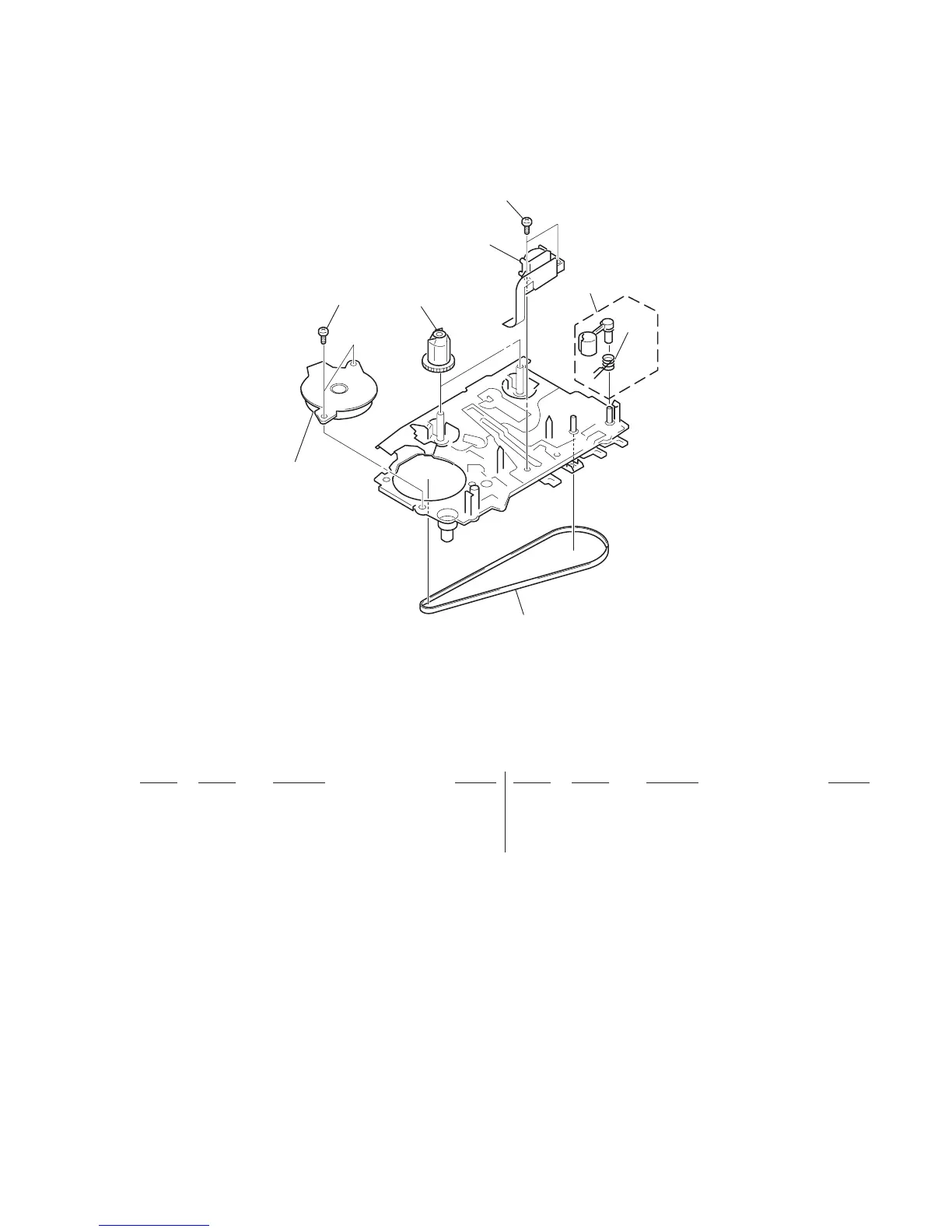

7-4. MECHANISM DECK SECTION 1
(MF-WMFS111-114)
204
203
205
206
202
201
M901
HP301
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
201 3-013-560-11 BELT
202 3-703-816-31 SCREW (M1.4), SPECIAL HEAD
203 3-019-776-01 GEAR (REEL-S)
204 3-703-816-73 SCREW (M1.4), SPECIAL HEAD
205 X-3369-749-1 PINCH LEVER (N) ASSY
206 3-920-996-01 SPRING (PINCH N)
HP301 1-500-517-11 HEAD, MAGNETIC (PLAYBACK)
M901 1-763-073-11 MOTOR (REEL/CAPSTAN) (WITH PULLEY)
