Sony WM-FS111 User Manual

— 4 —
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
Note : Disassemble the unit in the order as shown below.
Set Holder cassette sub assembly and dial scale
Main assembly Main board
Mechanism deck Magnetic head
Belt

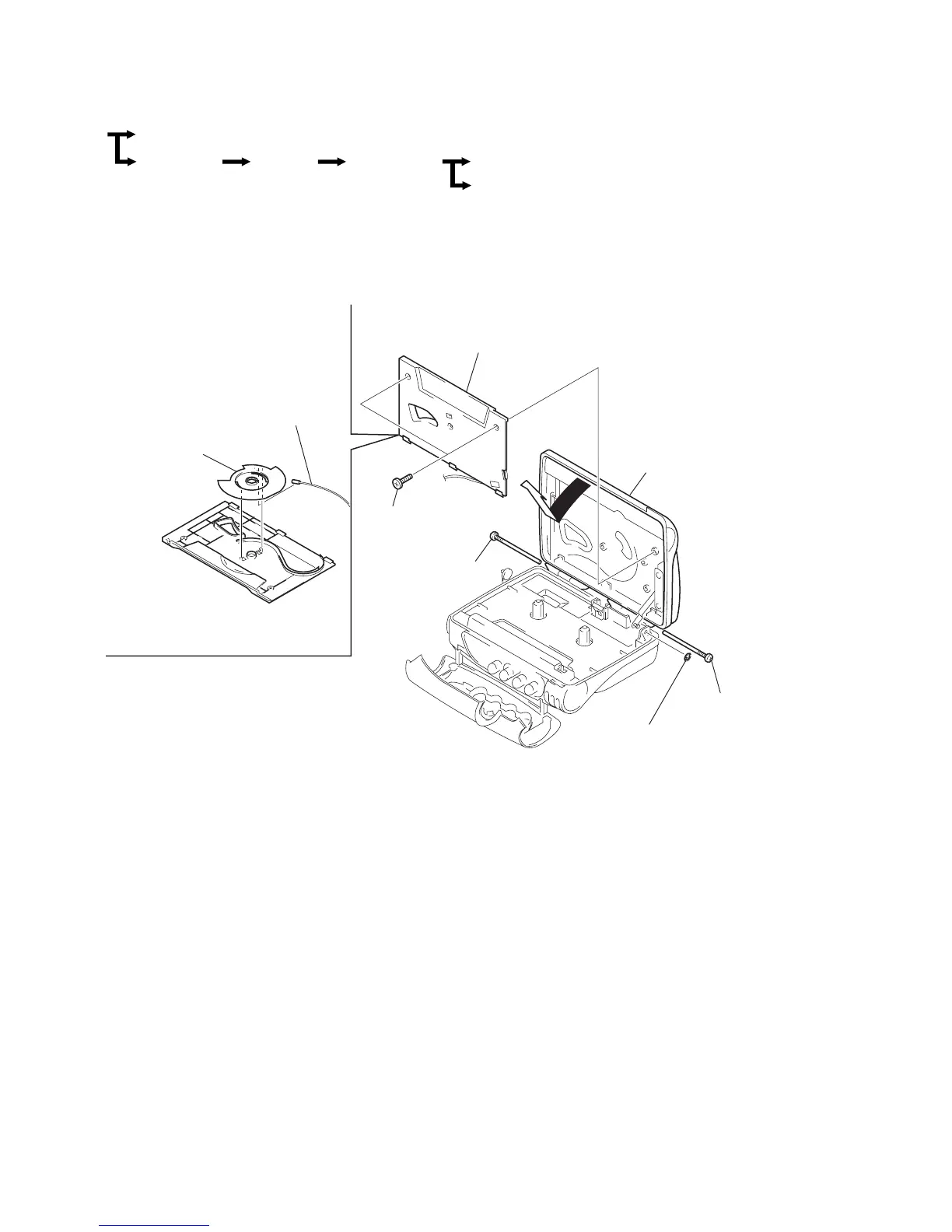

3-1. HOLDER CASSETTE SUB ASSEMBLY AND DIAL SCALE
1 Stop ring (E-1.2)
2 Tapping screw
3 Tapping screw
4 Holder cassette sub assembl
y
6 Cover (Cassette)
7 Dial scale
8 Wire assembly
5 Two tapping screws
(B1.7
× 4)
