— 3 —
SECTION 2
SERVICE NOTE

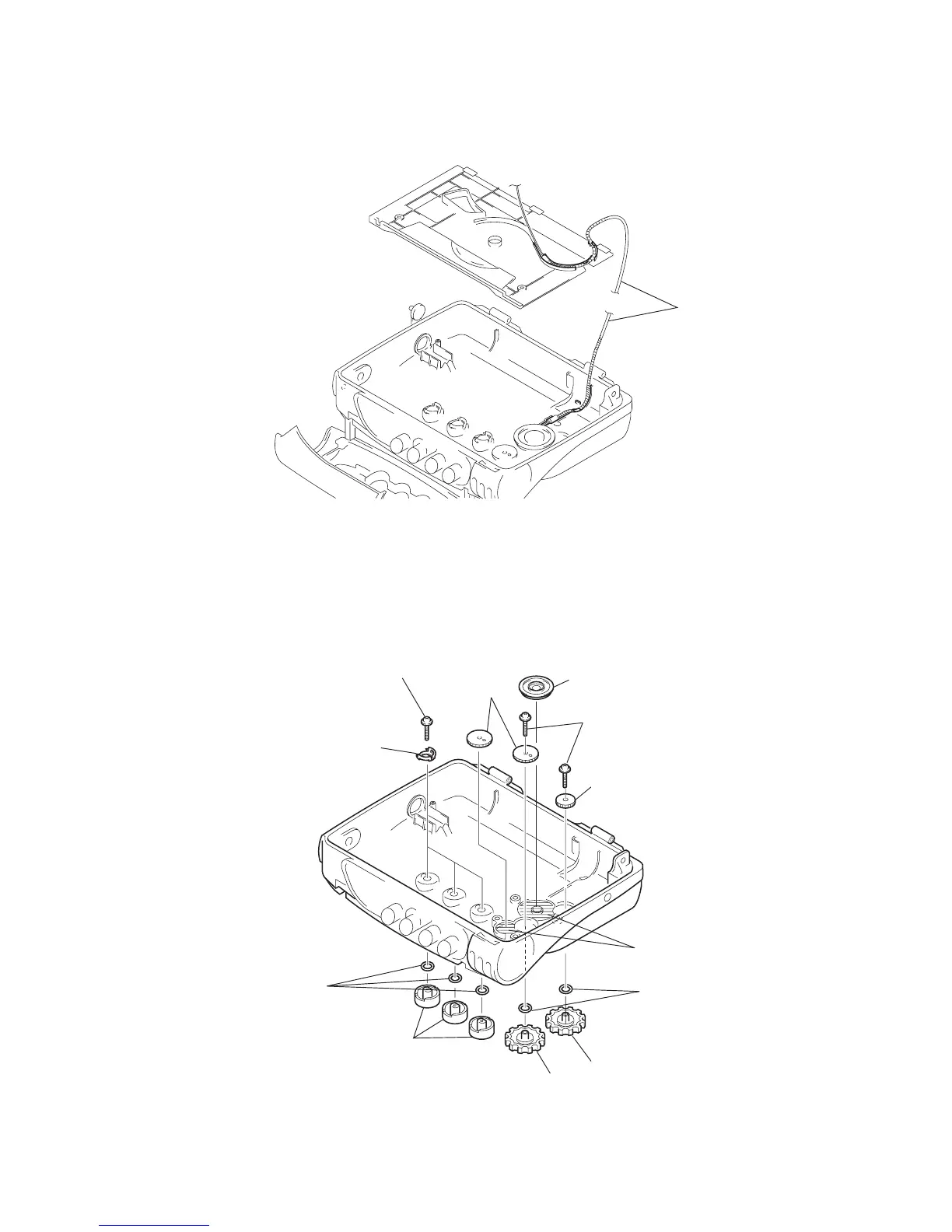

2-1. HOW TO INSTALL THE WIRE ASSEMBLY
• To install the wire assembly, route the wire assembly in the correct position referring to the illustration below.
2-2. WATER PROOF SECTION
NOTE : In case the parts in the figure are removed for repair, treat them to protect from water drop following the instructions in the figure
(spread grease, bond etc.)
• sony grease SGL-601 : 7-651-000-10
Wire assembly
Knob (function)
Knob (VOL)
Knob (TUNE)
Tapping screw (B)(1.4x6)
Tapping screw (B)(1.4x6)
Joint (AVLS)
Gear (VOL)
Gear (B)
Gear (A)
O ring (DIA. 2.5xDIA. 4.5)
(Apply Sony grease SGL-601)
O ring
(Apply Sony grease SGL-601
To Next Page
