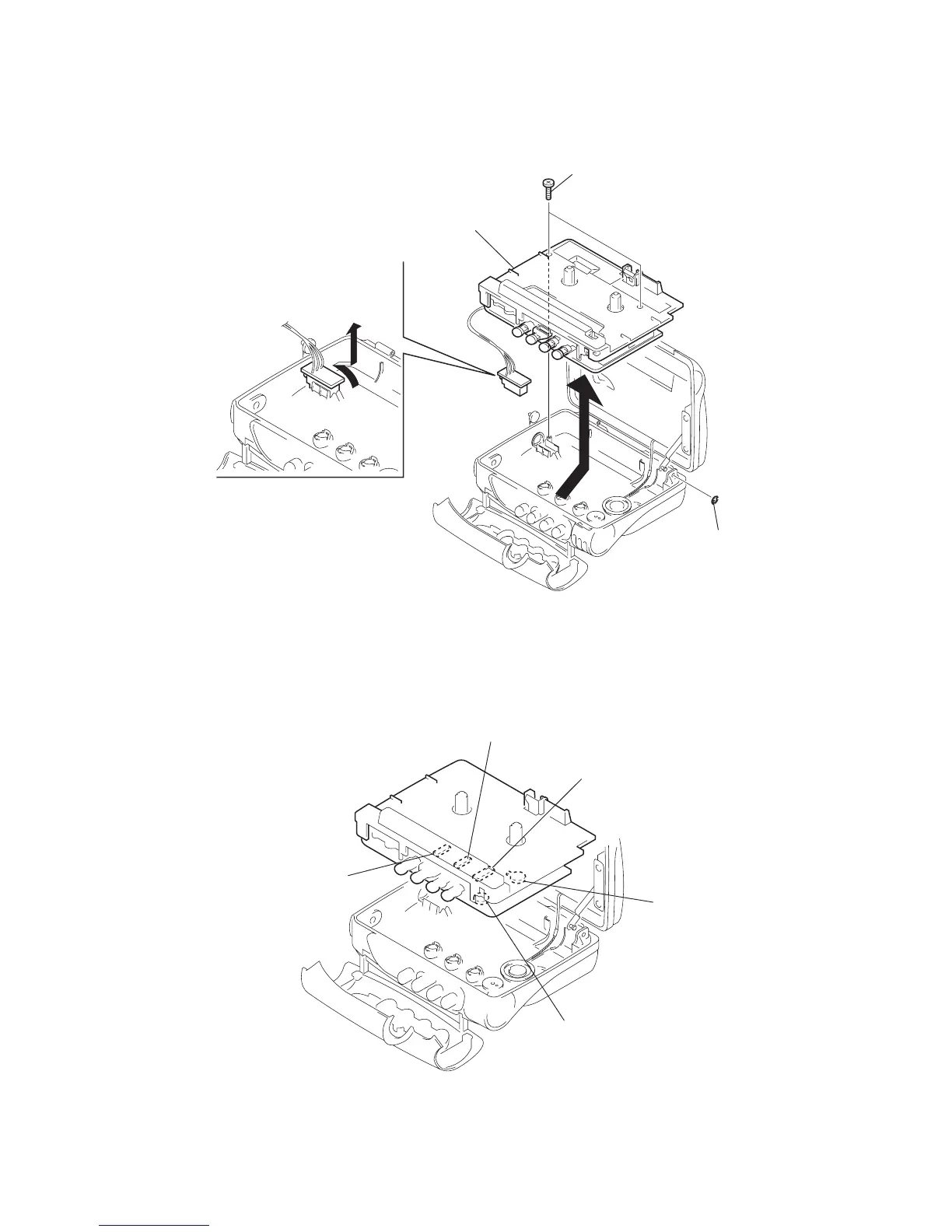

3-2. MAIN ASSEMBLY
3 Remve the main assembly in the direction
of arrow.
(Be careful not to focibly pull the wire that connects
the main board and the headphone board.)
4 Remove the headphone
borad in the direction of arrow.
1 Stop ring (E 1.2
)
2 Two screws (+B1.7 × 7)
CAUTION WHEN ASSEMBLING THE MAIN ASSEMBLY
• Assemble the main assembly in a way that each switch mates with the corresponding knob each other.
Function switch (S301)
Tuner (CV1
)
AVLS switch (S305)
Mega Bass switch
(S306)
Volume (RV301)
