Sony WM-FX855 - Page 10

– 10 –

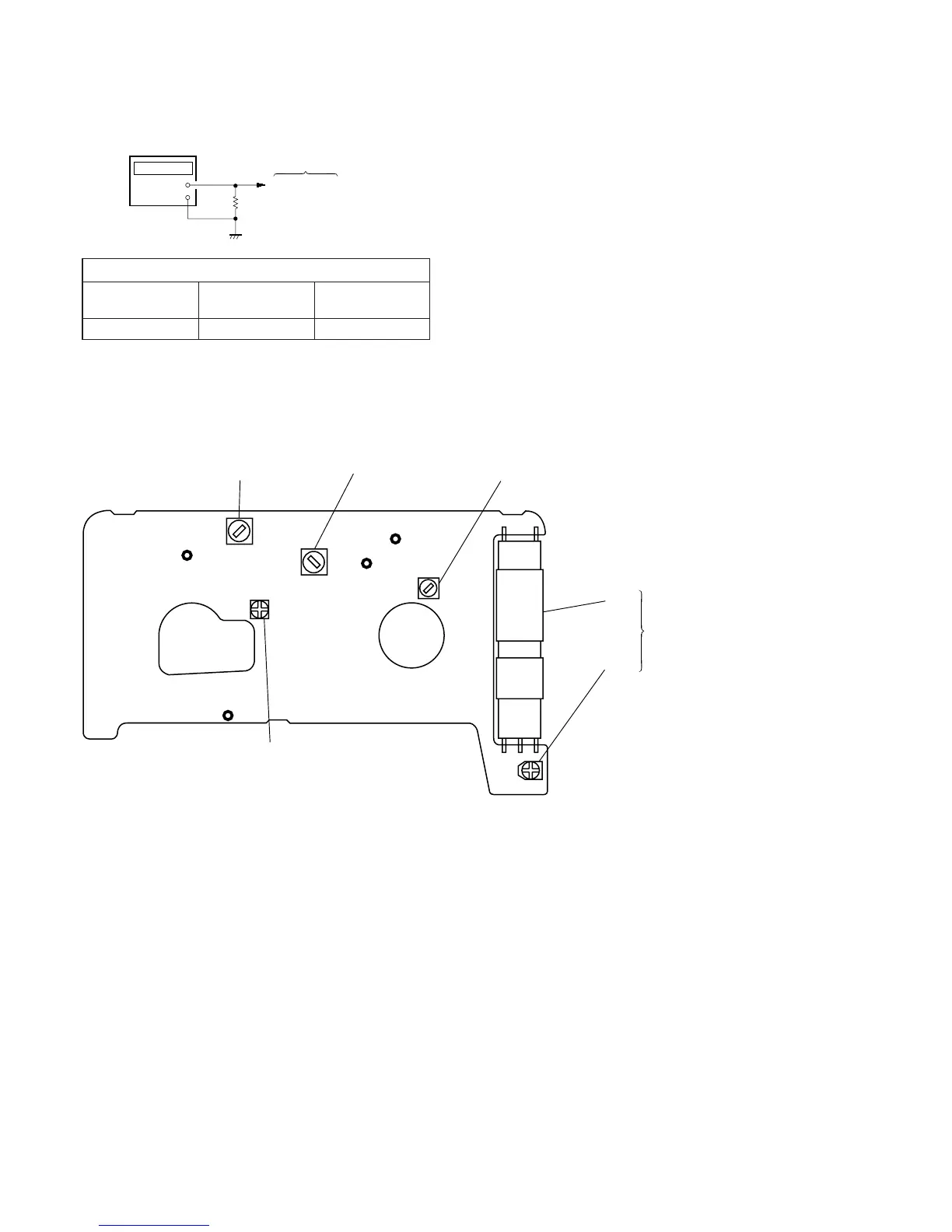

VCO Adjustment
connection:
frequency counter
TUNER Board
TP25 (19 kHz
)
150 k Ω
+
—
• Adjusting Location
[TUNER Board]
TP25
(19 kHz)
TP23
(ANT GND)
TP1
(ANT)
T2
AM IF Adjustment
T1
AM Frequency coverage
Adjustment
L5
FM IF Adjustment
TP21
(VT)
RV1
VCO Adjustment
L8
CT1
AM
Tracking
Adjustment
VCO Adjustment
Adjusting device Frequency display
Frequency counter
reading
RV1 78.00 MHz 19.00 kHz ± 0.05 kHz
