SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

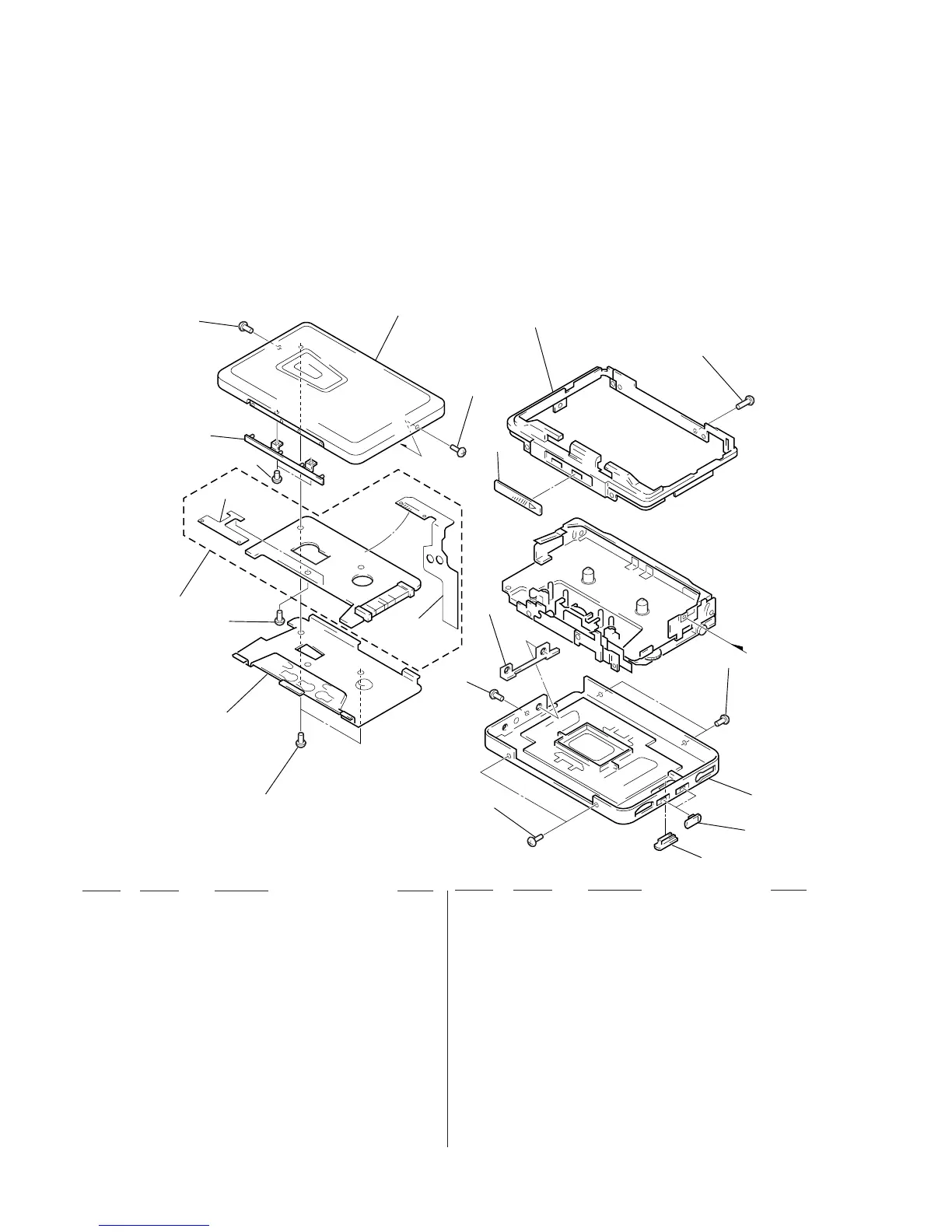

(1) CASSETTE LID ASS’Y, CASE ASS’Y SECTION
1 3-375-114-21 SCREW (M1.7X2.5)
2 3-015-897-01 COVER, TU
3 A-3016-979-A TUNER BOARD, COMPLETE
4 3-375-114-61 SCREW (1.7X2.5)
5 3-015-917-01 LOCKER, OPEN
6 3-704-197-11 LOCK, SERRAT IB (GOLD)
6 3-704-197-13 LOCK, SERRAT IB (BLACK, BROWN)
7 X-3374-056-1 LID ASSY (CF-B), CASSETTE (BLACK)
7 X-3374-057-1 LID ASSY (CF-N), CASSETTE (GOLD)
7 X-3374-058-1 LID ASSY (CF-T), CASSETTE (BROWN)
8 3-015-912-01 ORNAMENT, REEL
9 3-704-197-01 SCREW (IB LOCK)
10 3-015-913-01 KNOB (OPEN)
11 3-015-924-01 PLATE, ORNAMENTAL
12 3-939-590-18 SCREW (IB LOCK) (GOLD)
12 3-939-590-19 SCREW (IB LOCK) (BLACK, BROWN)
13 X-3374-563-1 CASE ASSY (B) (BLACK)
13 X-3374-564-1 CASE ASSY (N) (GOLD)
13 X-3374-565-1 CASE ASSY (T) (BROWN)
14 3-912-036-31 KNOB (MODE) (BLACK)
14 3-912-036-41 KNOB (MODE) (GOLD)
14 3-912-036-51 KNOB (MODE) (BROWN)
15 3-015-904-01 KNOB (HOLD) (BLACK)
15 3-015-904-11 KNOB (HOLD) (GOLD)
15 3-015-904-21 KNOB (HOLD) (BROWN)
16 3-389-523-35 SCREW (IB LOCK) (GOLD)
16 3-389-523-36 SCREW (IB LOCK) (BLACK, BROWN)
17 3-020-859-01 SPACER (R1)
18 1-666-502-11 TUNER FLEXIBLE BOARD
6
7
6
18
5
4
not
supplied
3
1
2
1
17
16
15
14
13
13
12
9
10
11
A
A
Ver 1.2 1999. 04
